Electrolux Compact front series - Washing Unit with Outer Drum

- 13 -
10.2003 R.K. 599 518 355

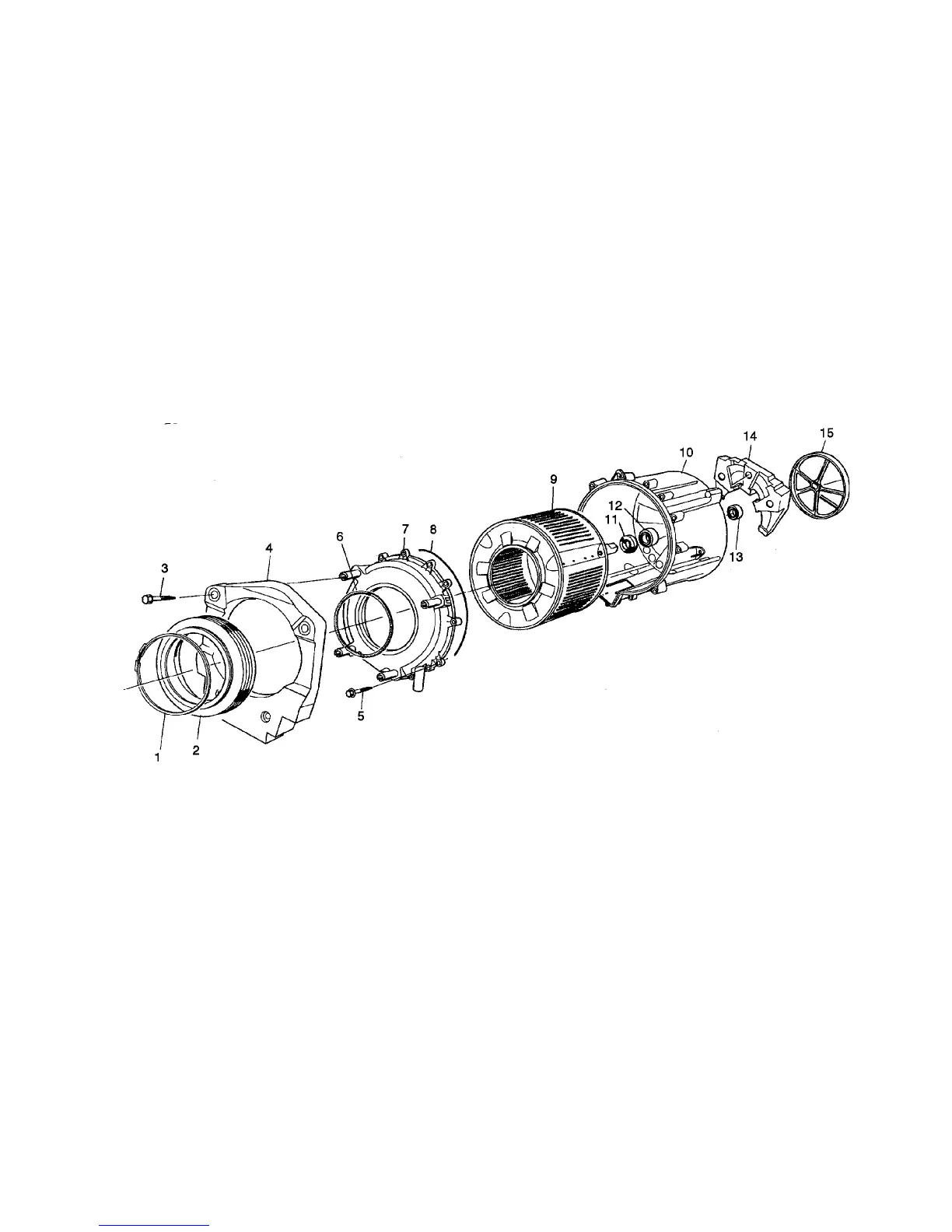

Washing unit with outer drum of CARBORAN®
1 Ring for fixing bellows to enclosure
2 Bellows
3 Screw, front counterweight
4 Front counterweight
5 Screw, front/rear outer drum
6 Ring for fixing bellows
7 Front section of outer drum, CARBORAN®
8 Packing
9 Inner drum, stamless steel
10 Rear section of outer drum, CARBORAN®
11 Drum shaft sealing ring
12 Inner ball bearing
13 Outer ball beanng
14 Rear counterweight
15 Pulley wheel
The outer drum consists of two sections of
CARBORAN® fixed together with a number
ofthread-cutting screws. The two counterweights
are screwed to the sections.
