- 24 -
10.2003 R.K. 599 518 355

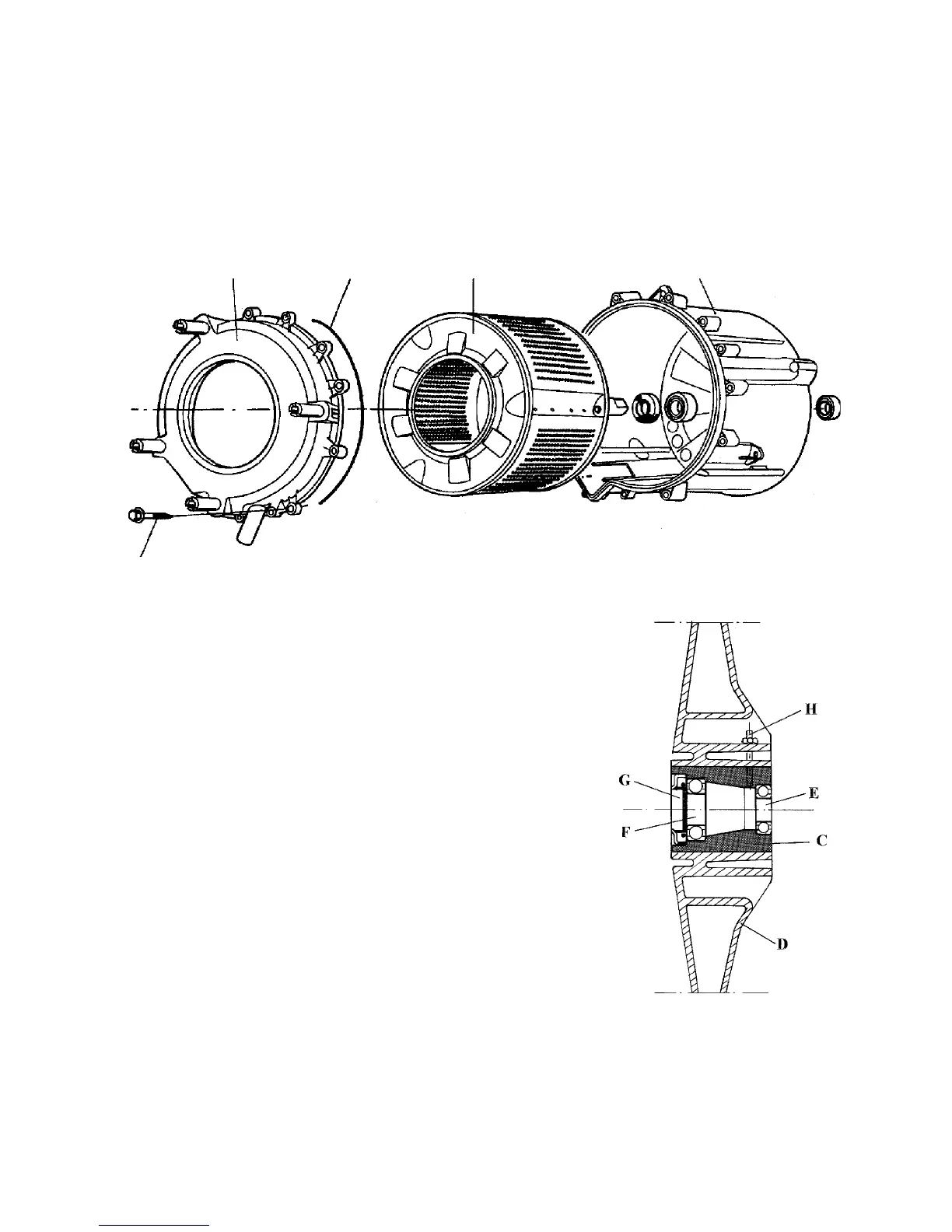

Outer drum with drum bearing
The outer drum consists of two sections of CARBORAN with a sealing ring between, fixed together with a number
of thread-cutting screws (A).
When installing the sealing ring, the splice, marked with red, is to be located upward so that the red marking is
visible at the recess on the upper sides of the drum sections.
The bearing which carries the drum axle is installed
inside a cylindrical steel support embedded in the rear section
D Outer rear drum section
E Rear ball bearing (0 40 mm. type 6203-2Z).
F Front ball bearing (0 53 mm. type 6205-2Z).
G Drum axle seal
H Earth connection pin.
Front outer drum B lnner drum Rear outer drum
A
