- 6 -
10.2003 R.K. 599 518 355

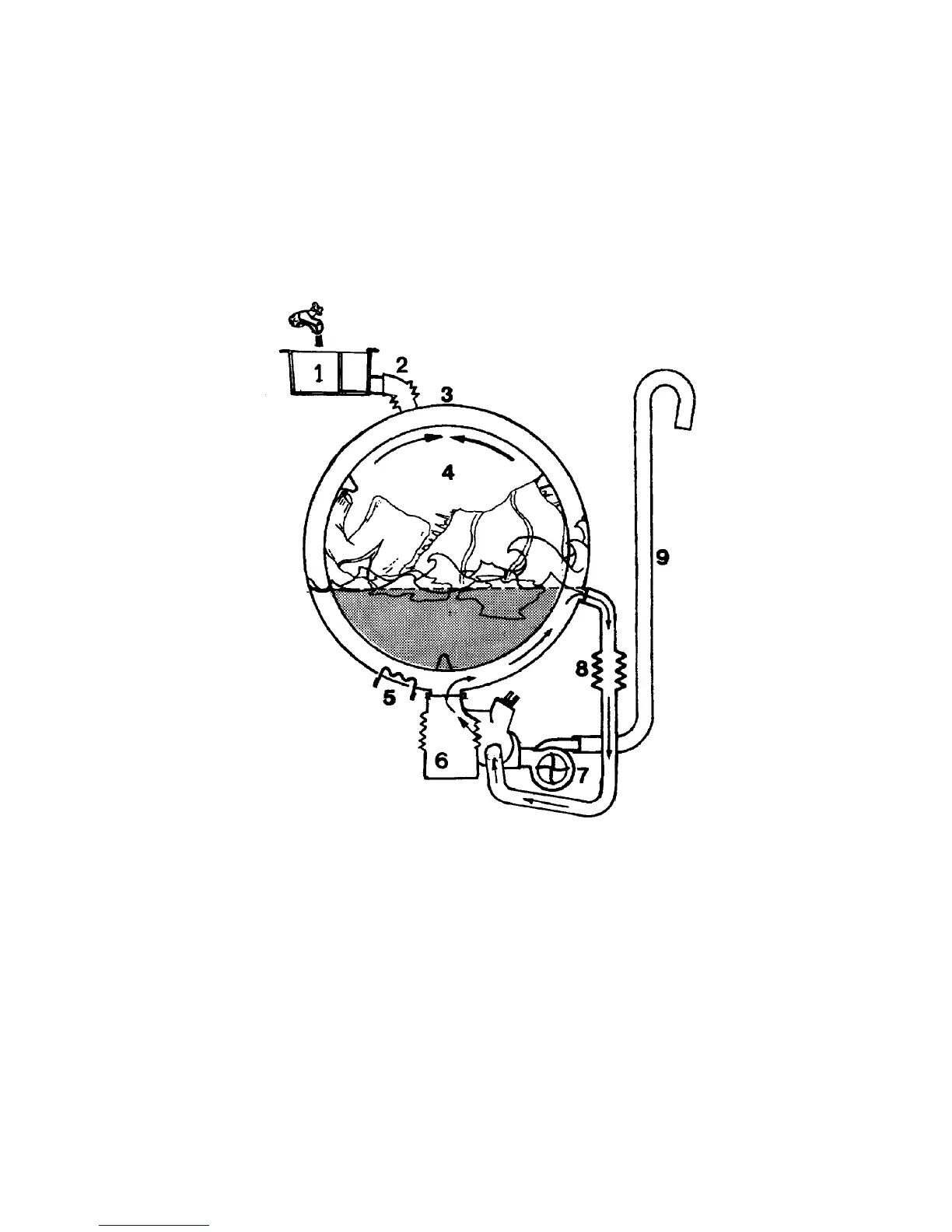

5 Heating element
6 Rubber bottom, fixed to outer drum
7 Drainage pump
8 Circulation hose
9 Drainage hose
OPERATION PRINCIPLE
Traditional washing Operation
1 Detergent hatch
2 Hose between detergent dispenser and outer drum
3 Outer drum
4 Inner drum
- The partides of soiling substances which are freed from the textile fibres by the chemical action of the detergent
at the temperature of the washing water are re-moved by the flow of water through the fibres.
- The reversing rotation ofthe drum causes mechamcal interaction between the parts ofthe load and the
detergent solution which separates the partides from the textlies.
- The water level is at such a height that the load is successively lifted from the solution by the ridges formed
in the inner drum and then falls back into the solution.
- The Circulation ofthe solution during the rotation ofthe drum prevents the accumulation of detergent in the
rubber bottom.
