- 22 -
Spares Operation - R.Kurzke 02/05 599 521 951 EN

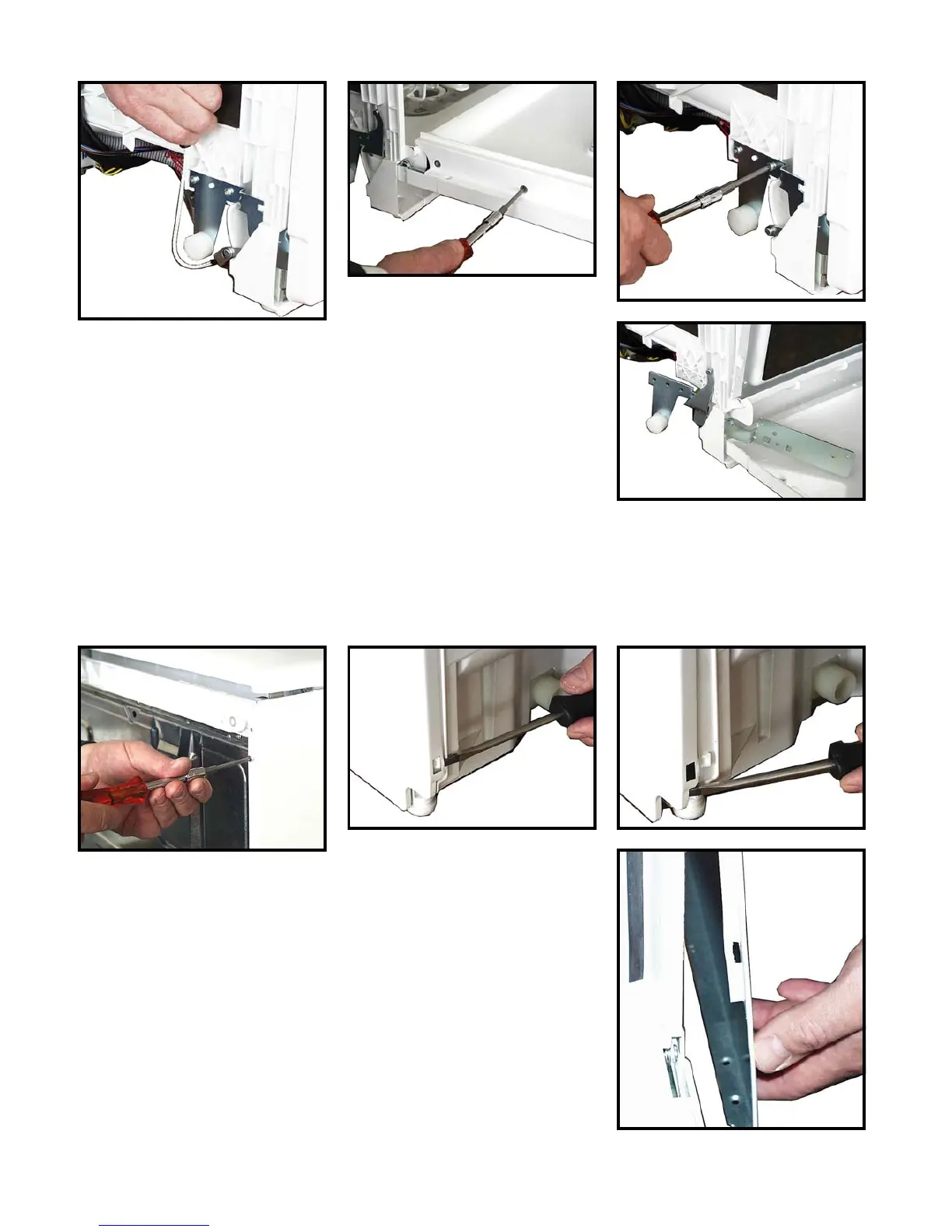

Replacement of the door hinge.
After slackening, the door spring is removed from its hinges
together with the deflection band.
After removing the screws on the chassis and on the door-
frame, the door hinge can be removed.
Housing
After removing the housing screws (lay
the machine on its side) from the
bottom of the machine, the housing is
unclipped front and back from the
catches and can be removed.
