Electrolux COMPACT MIDI + EDW 500 - Circulation Pump; Drain Pump; NTC Temperature Sensor; Electronic

- 6 -
Spares Operation - R.Kurzke 02/05 599 521 951 EN

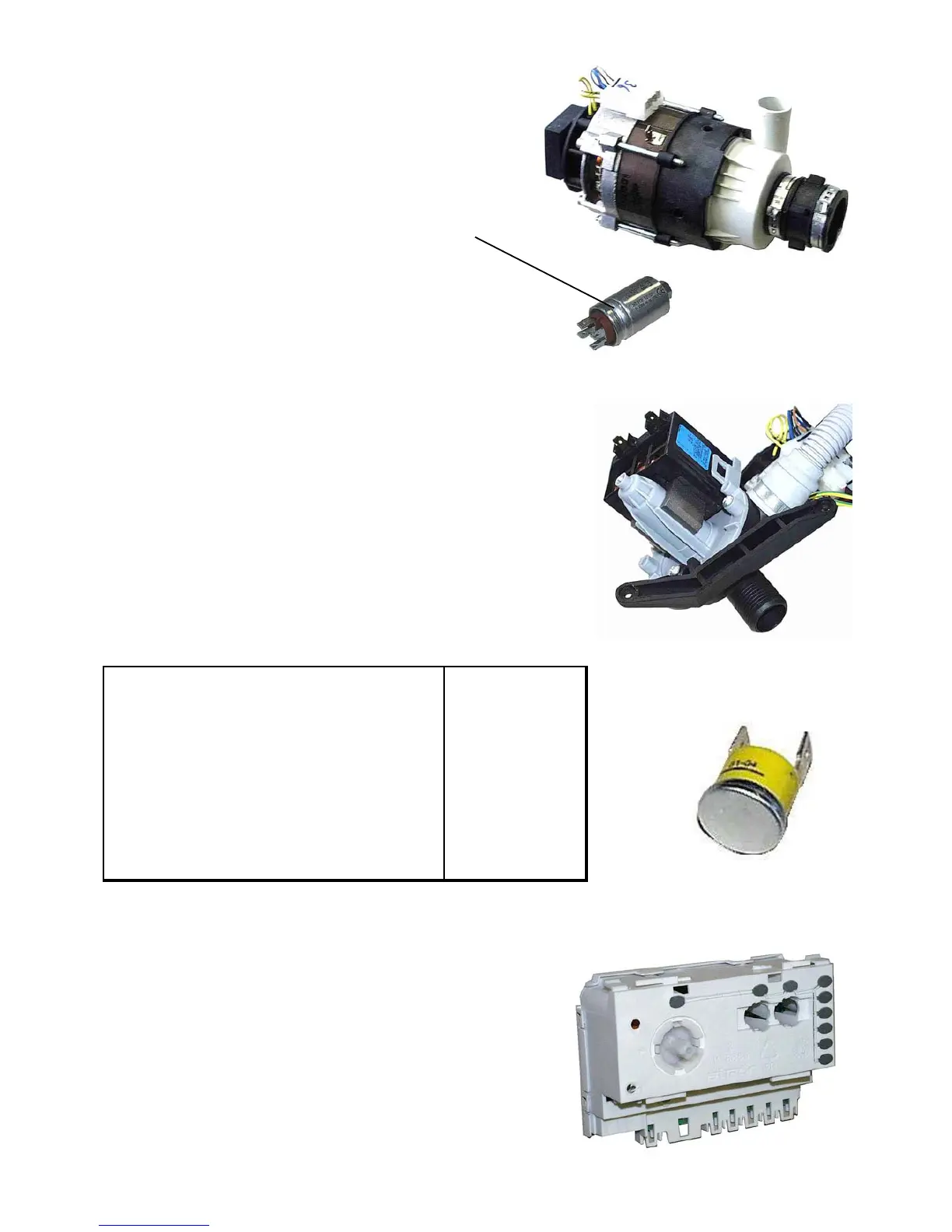

Circulation Pump
The circulation pump is driven by an asynchronous motor
with an auxiliary winding.
The auxiliary winding ist in circuit with a 2,5 uF capacitor.
Speed for rinsing:
2800 1/min
Drain Pump
The drain pump is driven by a synchronous motor.
Power output 26 W.
Pump rate 15 l/min.
NTC-Temperaturfühler
Temperature sensor NTC-resistor
Temperatur/Widerstand
20 °C
/
6032
Ω
temperature/resistor
25 °C
/
4829
Ω
(nur bei vollelektron.
30 °C
/
3891
Ω
Geschirrspüler)
40 °C
/
2573
Ω
(only for fully electronic dishw asher)
50 °C
/
1741
Ω
55 °C
/
1444
Ω
60 °C
/
1204
Ω
65 °C
/
1009
Ω
70 °C
/
849
Ω
NTC-Temperaturfühler
Electronic
On electronic models, a micro processor controls all
components, this is done using triacs. The electronic also
memorizes all programme data.
The heating is switched by a relay on the electronic board.
