- 5 -
Spares Operation - R.Kurzke 02/05 599 521 951 EN

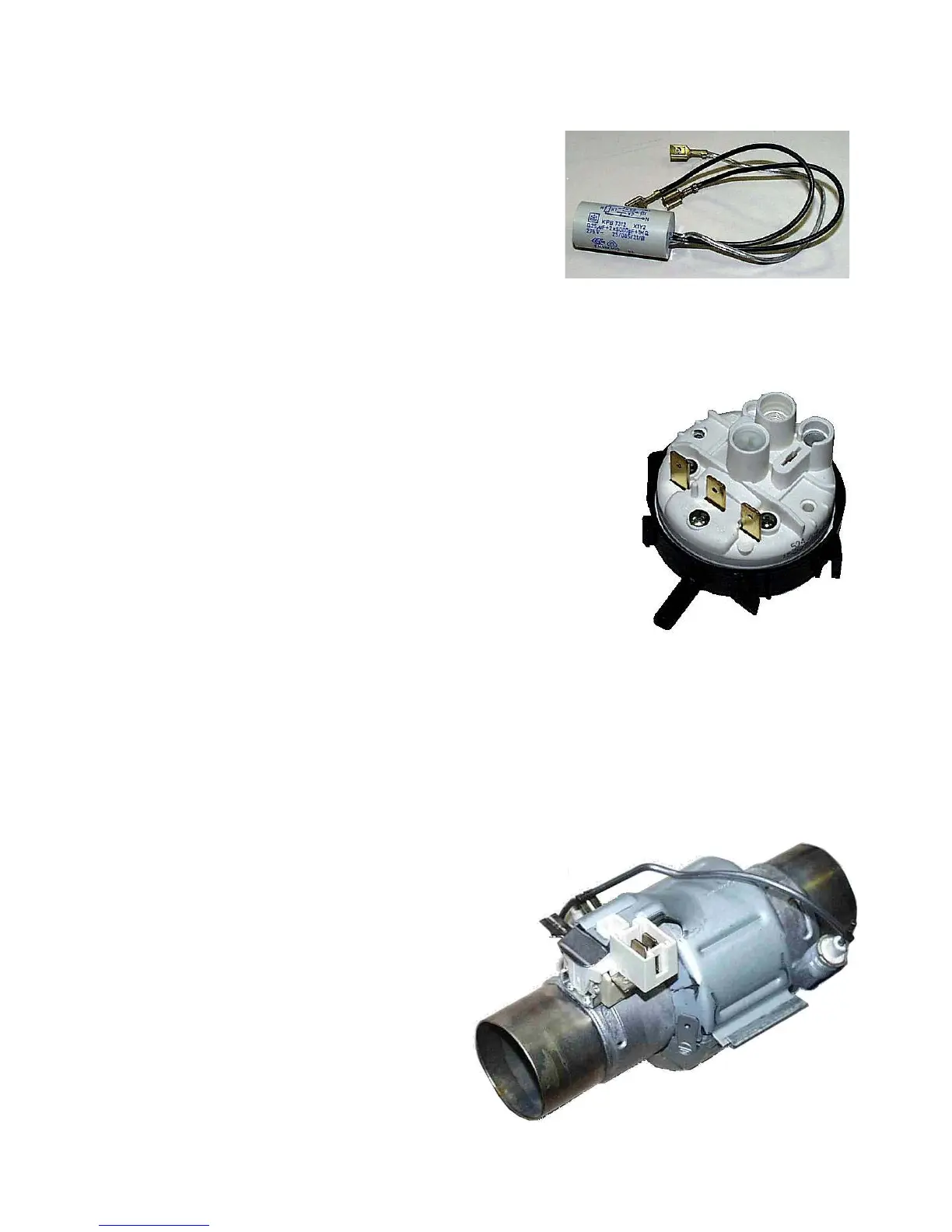

3. Components
Interference Filter
The interference filter is connected in the terminal
board parallel to the mains feed.
Pressure Switch
The pressure switch controls the water level.
Without water, contact is closed.
fN Switch point with level 45 mm Ws
Reset point with level 10 mm Ws
The pressure switch is not adjustable.
Flow Heater
The flow heater heats the water to the required temperature.
During the wash cycle, water is contantly passing through the
flow heater.
Power output 1100 W
Resistor 45 Ω
Protector 98 °C ± 5 K
Thermal fuse 260 °C
