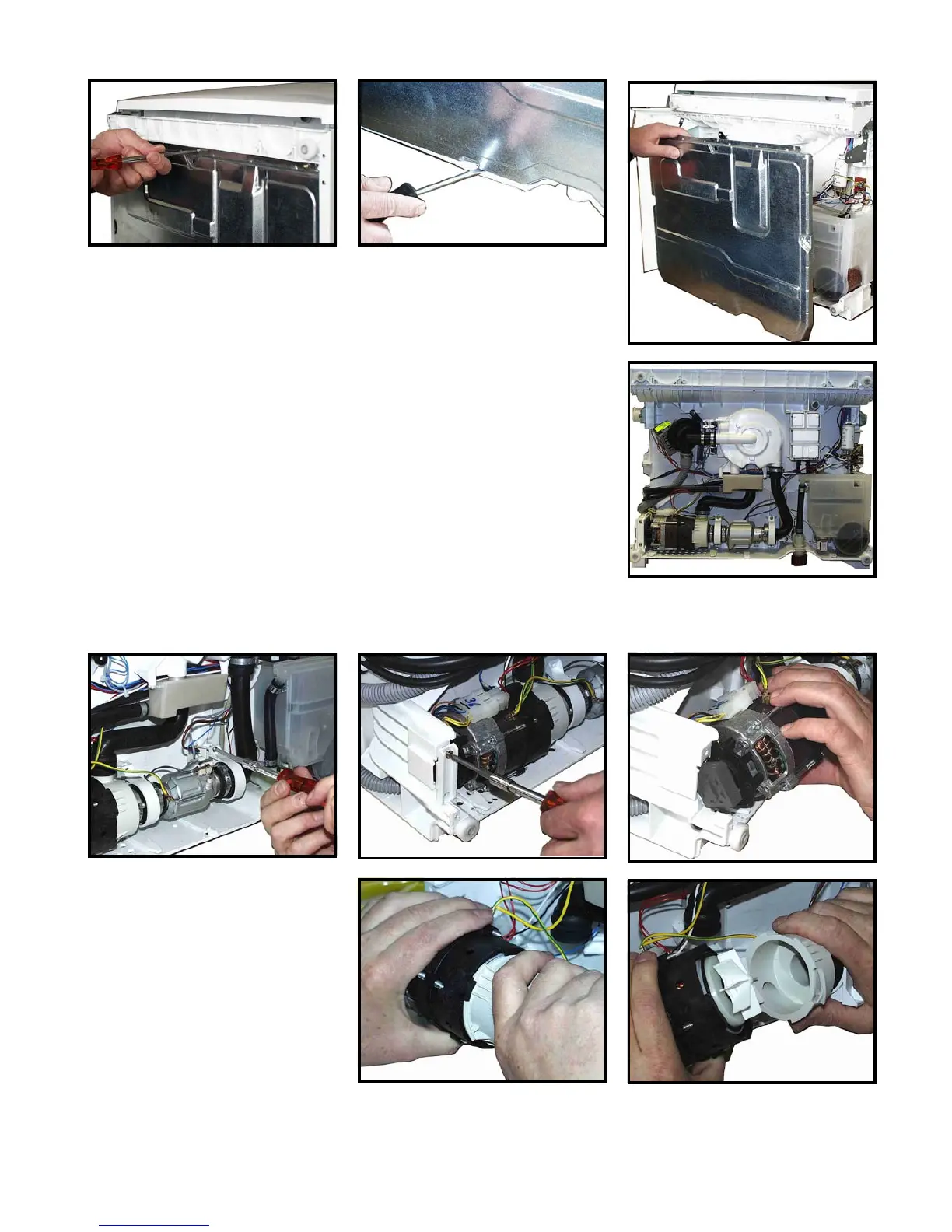

The floor of the machine is held with screws
at the front, and clipped in at the back.
It contains the bosses for the overflow
water and the flooding switch.
After removal you come to the most
important functional components.
After loosening the screws
of the two holders and the
yoke, the tumble pump/
continuous flow heater unit
can be taken out.
The bayonet breech of the
pump chamber can be
simply released, for
possible cleaning.
