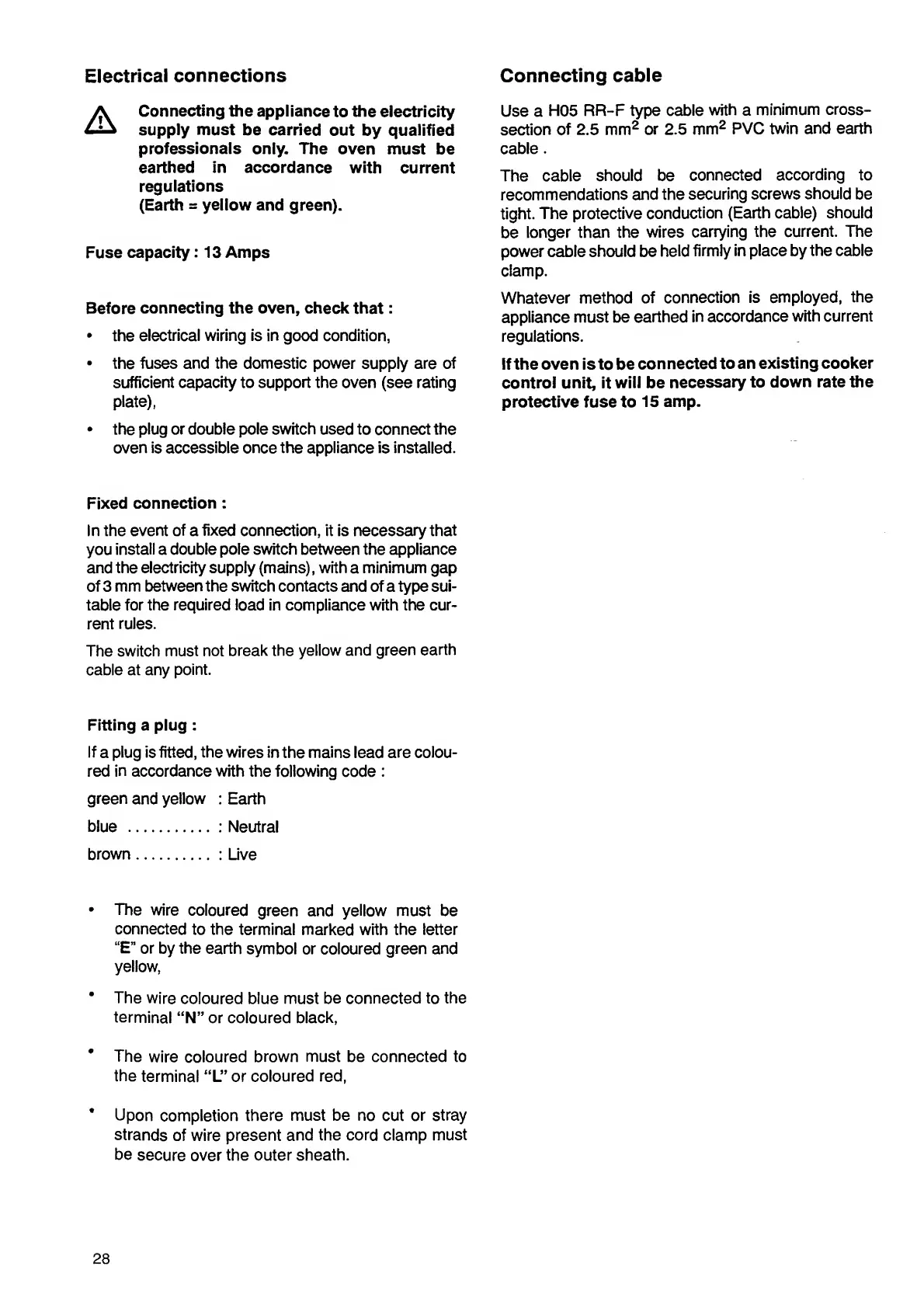

Electrical connections
A Connecting the appliance to the electricity
supply must be carried out by qualified
professionals only. The oven must be
earthed in accordance with current
regulations
(Earth = yellow and green).
Fuse capacity: 13 Amps
Before connecting the oven f check that:
• the electrical wiring is in good condition,
• the fuses and the domestic power supply are of
sufficient capacity to support the oven (see rating
plate),
• the plug or double pole switch used to connect the
oven is accessible once the appliance is installed.
Connecting cable
Use a H05 RR-F type cable with a minimum cross-
section of 2.5 mm 2 or 2.5 mm 2 PVC twin and earth
cable.
The cable should be connected according to
recommendations and the securing screws should be
tight. The protective conduction (Earth cable) should
be longer than the wires carrying the current. The
power cable should be held firmly in place by the cable
clamp.
Whatever method of connection is employed, the
appliance must be earthed in accordance with current
regulations.
If the oven is to be connected to an existing cooker
control unit, it will be necessary to down rate the
protective fuse to 15 amp.
Fixed connection :
In the event of a fixed connection, it is necessary that
you install a double pole switch between the appliance
and the electricity supply (mains), with a minimum gap
of 3 mm between the switch contacts and of a type sui¬
table for the required load in compliance with the cur¬
rent rules.
The switch must not break the yellow and green earth
cable at any point.
Fitting a plug :
If a plug is fitted, the wires in the mains lead are colou¬
red in accordance with the following code :
green and yellow : Earth
blue .: Neutral
brown. : Live
• The wire coloured green and yellow must be
connected to the terminal marked with the letter
“E” or by the earth symbol or coloured green and
yellow,
• The wire coloured blue must be connected to the
terminal “N” or coloured black,
* The wire coloured brown must be connected to
the terminal “L” or coloured red,
* Upon completion there must be no cut or stray
strands of wire present and the cord clamp must
be secure over the outer sheath.
