Electrolux EWM1100 - E23: Drain Pump Control Triac Malfunction

2007-10 SOI/DT-mdm FCPD-dp Quality-fz 24/59 599 70 32-47
NO
NO
YES
NO
YES
YES

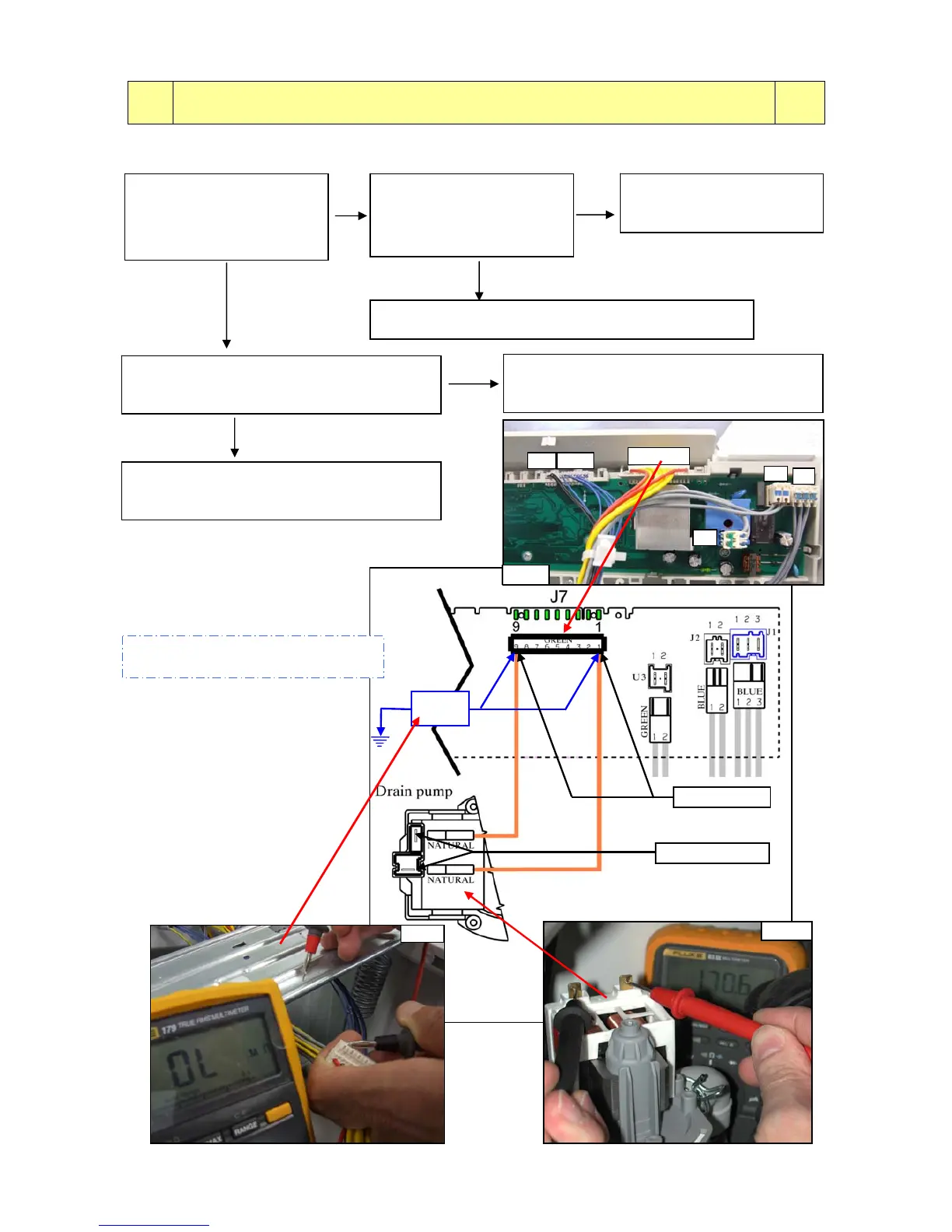

E23 E23: Malfunction of the component (triac) that controls the drain pump E23
Tests to be performed:
Scheda
Elettronica
Is the resistance of the pump
about 150-200 Ω? (measure
across connectors J7-1 and
J7-9 on circuit board side -
fi
g
.4-
Is the resistance of the pump
about 150-200 Ω?
(measure directly on the
pump) -see fig.5-
Check and if necessary replace the wiring and restart the
diagnostic cycle to check for further alarm conditions.
Measure across connectors J7-1 / J7-9 and the
structure of the appliance - fig.6 -
Is there current leakage?
Replace the main circuit board and restart the
diagnostic cycle to check for further alarm
conditions.
Replace the pump and restart
the diagnostic cycle to check
for further alarm conditions.
fi
g
. 5
J9
J10
J7
J2
J1
U3
Fig.4
fig. 6
If there are traces of burning on the
circuit board, refer to page 59
Check and if necessary replace the wiring and
restart the diagnostic cycle to check for further
alarm conditions.
∞ Ω
155÷200Ω
155÷200Ω
