Electrolux EWM1100 - E69: Washing Heating Element Interrupted

2007-10 SOI/DT-mdm FCPD-dp Quality-fz 46/59 599 70 32-47
YES
NO
NO
YES

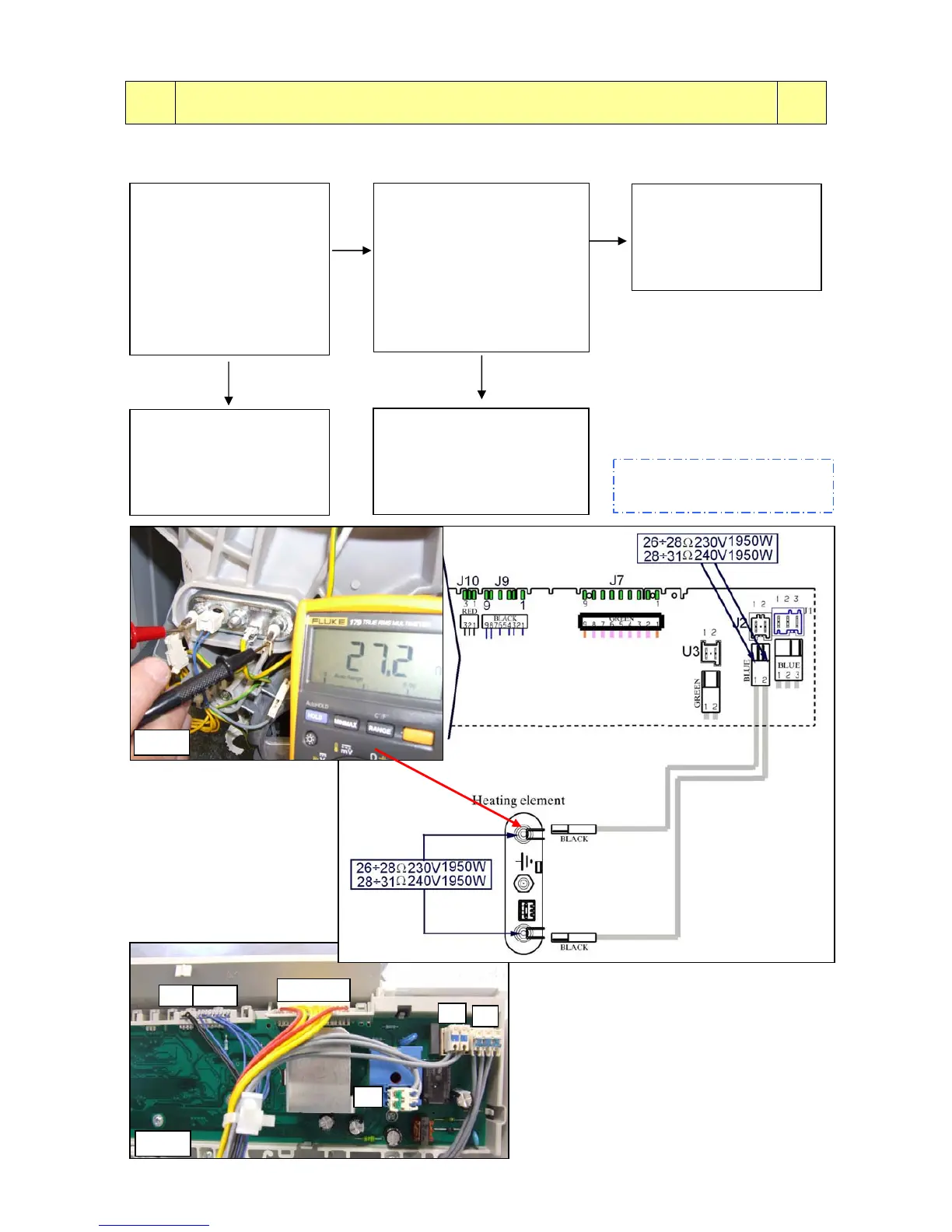

E69 E69: Washing heating element interrupted E69
Tests to be performed:
J9
J10
J7
J2
J1
U3
Fig.4
Circuit
board
Measure the heating
element value (Ω) across
terminals J2-2 ÷ J2-1of the
wiring connector.
-see fig.4-
Is the value correct?
(26÷28Ω for 230V/1950W,
28÷31 for 240V/1950W)
Replace the circuit board
and restart the diagnostic
cycle to check for further
alarm conditions.
Measure the ohmic value
directly on the terminals of
the heating element (detach
the connectors)
-see fig 13-
Is the value correct?
(26÷28Ω for 230V/1950W,
28÷31 for 240V/1950W)
Replace the heating
element and restart the
diagnostic cycle to check
for further alarm
conditions.
Check/replace the wiring and
restart the diagnostic cycle to
check for further alarm
conditions.
Fig.13
If there are traces of burning on
the circuit board, refer to page
59
