Delay Start
Start/Cancel
Pin location in
Disconnect block Load
1 Empty
2 Power for control
3 From door switch
4 Safety Therostat
5 Empty
6 Dispenser
7 Thermistor
8 Drain pump
9 Nuetral
10 Thermistor
11 Float Switch
12 Wash motor
STEP
DESCRIPTION
TIME (SEC)
WATER VALVE
WASH MOTOR
DRAIN MOTOR
HEATER
DISPENSOR
WASHING LED
ACTIVE VENT
DRYING LED
SANITIZED LED
1 FILL/ DISPENSOR 60 1 0 0 0 1 1 1 0 0
2 FILL 27 1 0 0 0 0 1 1 0 0
3 WASH/HEAT 45 0 1 0 1 0 1 1 0 0
4 PAUSE 0.6 0 0 0 1 0 1 1 0 0
5 WASH/HEAT 75 0 1 0 1 0 1 1 0 0
6 WASH/HEAT/DISP 60 0 1 0 1 1 1 1 0 0
7 DRAIN 90 0 0 1 0 0 1 0 0 0
8 DRY 90 0 0 1 1 0 0 0 1 0
TOTAL 448 0 0 0 1
CLEAN LED and SANITIZED LED- stay on until door is opened
or cycle started
Prior to a cycle being started a Delay start can be
selected. To select a delay Start tapping the pad will
advance the control through the time of delay for this
model. Once the delay time has been selected the
count down will begin. To cancel the Delay option
and begain the cycle before the delay period is over;
press the Start/Cancel pad.
Pressthe Start/Cancel pad will active any cycle
selection. At any time during a cycle, pressing the
Start/Cancel pad cancels the cycle and initiates a 90
second drain cycle and ends the cycle.

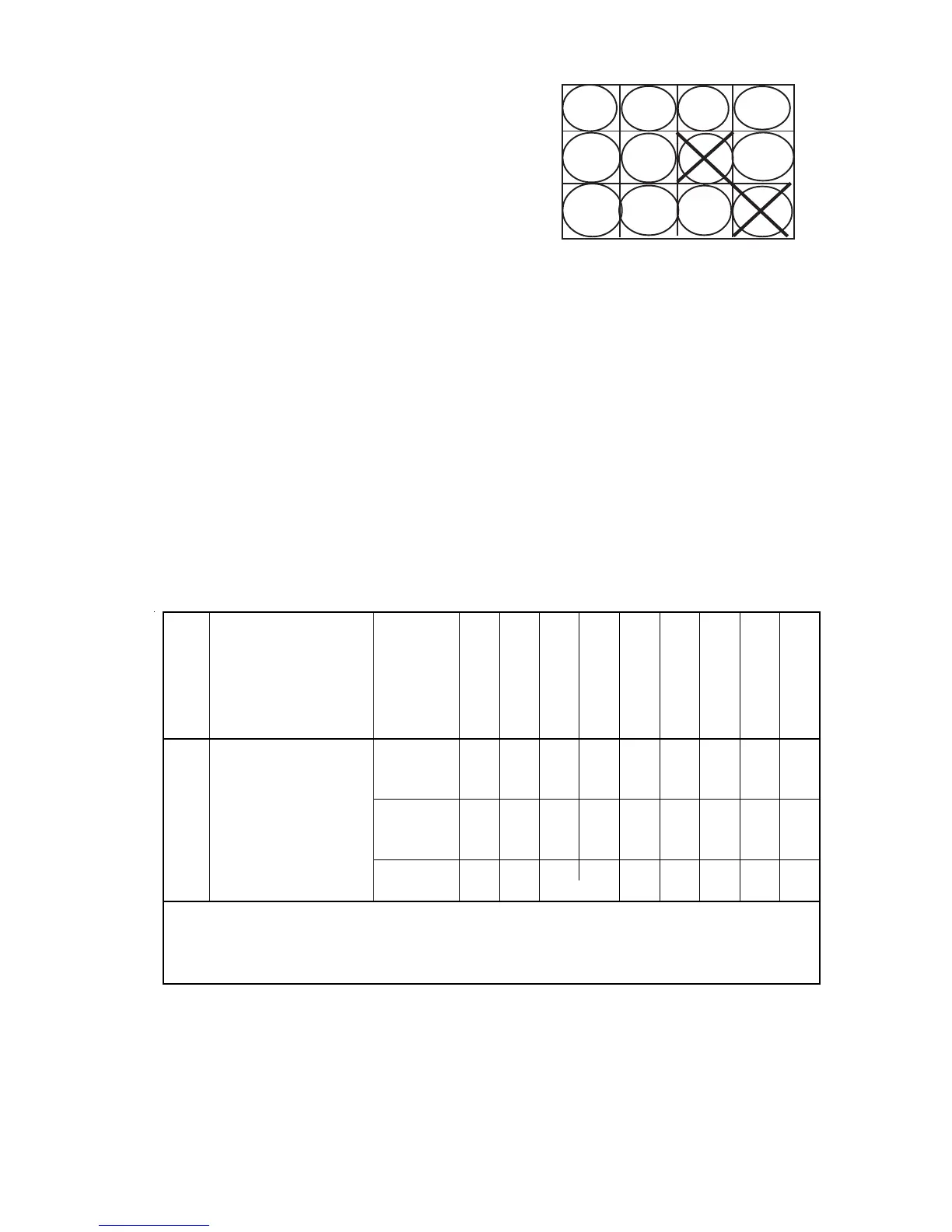

Control half of disconnect
block
1
2
3
4
5
6
7
8
9
10
11
12
