12
SAFETY PRECAUTIONS
Always turn off electrical power supply before servic-
ing any electrical component, making ohmmeter
checks, or making any part replacement. Refer to
safe servicing procedures at the front of this service
manual before servicing the dishwasher.
All voltage checks should be made with a voltmeter
having a full scale range of 130 volts or higher.
After service is completed, be sure all safety ground-
ing circuits are complete, all electrical connections
are secure, and all access panels are in place.

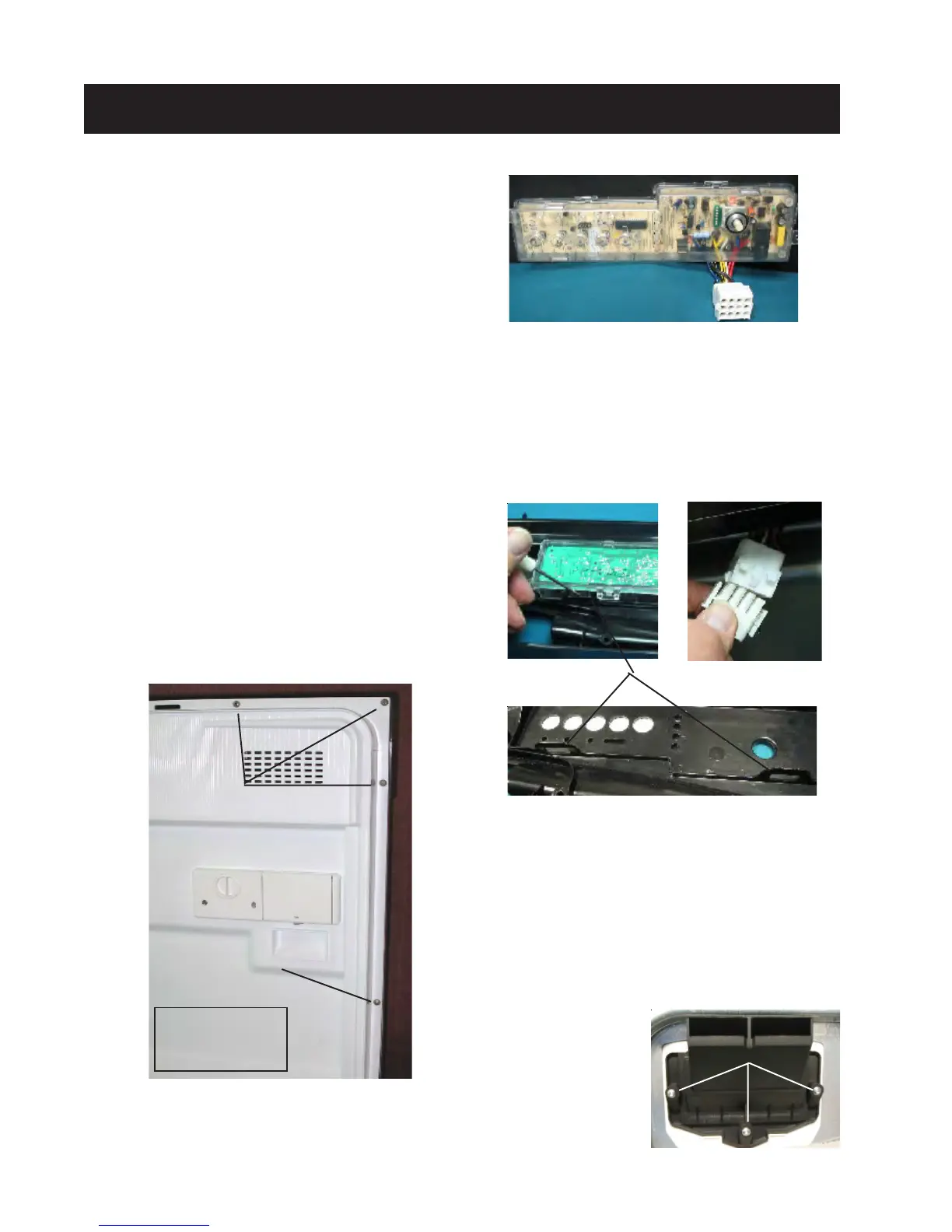

CONTROL PANEL
1. Disconnect the dishwasher from electrical
supply.
2. Remove the outer door panel;
3. The outer door panel is held to the inner door
panel by two screws and four locking tabs, two on
each side of the door.
4. Remove the lower two screws, one on each side
that secures the outer door to the inner panel.
5. Close the door and slide the door panel down and
outward to remove.
6. Remove the six screws mounting the control
panel to the inner door.
DAIL-O-MATIC ELECTRONIC CONTROL
1. Disconnect the dishwasher from electrical supply.
2. Remove knob from selector by pulling straight off
3. Remove outer door panel
4. Separate wire connection at control
5. Remove console
6. On top of control case pull back plastic clip holding
control in place, pull control assembly from
console.
VENT HOUSING ASSEMBLY
1. Disconnect the dishwasher from electrical
supply
2. Remove outer door panel
3. Remove console
4. Remove three screws holding assembly to inner
door panel, remove any gasket remaining from old
cover.
5. Remove gasket protection paper from new housing
6. Place new cover at an
angle onto bottom
vent housing supports
raise up into place.
This is to insure
bottom of the gasket
seals properly to inner
door panel.
Mounting
screws
DISASSEMBLY AND SERVICE
Outer Door
mounting
screw
Console
mounting screw
Screws in same
location on
opposite side
Wire
Connection
Control
mounting clip
