CENTER SPRAY ARM (PRECISION
DIRECT MODELS)
1. Pull upper rack forward to gain access to spray
arm.
2. Center spray arm and delivery tube are an
assembly, push this assembly to the rear to
loosen and remove from rack.
DOOR LATCH
1. Disconnect the dishwasher from electrical
supply
2. Remove outer door panel
3. Remove console
4. Remove wires from both door switches
5. Remove two Torx screw holding latch
6. Make sure both white wires are on one switch
and both black wires are on the opposite
switch.
DETERGENT/ RINSE AID DISPENSER
1. Disconnect the dishwasher from electrical supply
2. Remove outer door panel
3. Disconnect wiring from dispenser
4. Remove six Phillips screws and carefully push
dispenser into the tub
DOOR SEAL
UPPER RACK
1. To remove rack, unsnap and remove retainers
at end of metal track. Once retainers are
removed, pull rack straight out.
2. Each track roller is secured with a T-25 TORX bolt.
When reinstalling the roller care must be taken not
to cross thread the screw opening in tub.
1. Door seal just pulls out of channel around tub.
2. To replace find center of gasket make sure back
goes into channel first. Back is marked with a color
stripe.
3. Starting at center top
press gasket into
channel just to hold in
place
4. Go to bottom on either side
find block molded into
bottom of tub fill block with
gasket.
5. Form gasket into an “L” press gasket up channel
in several spots.
6. Repeat steps 4 and
5 for opposite side
7. Close door to seat
seal.

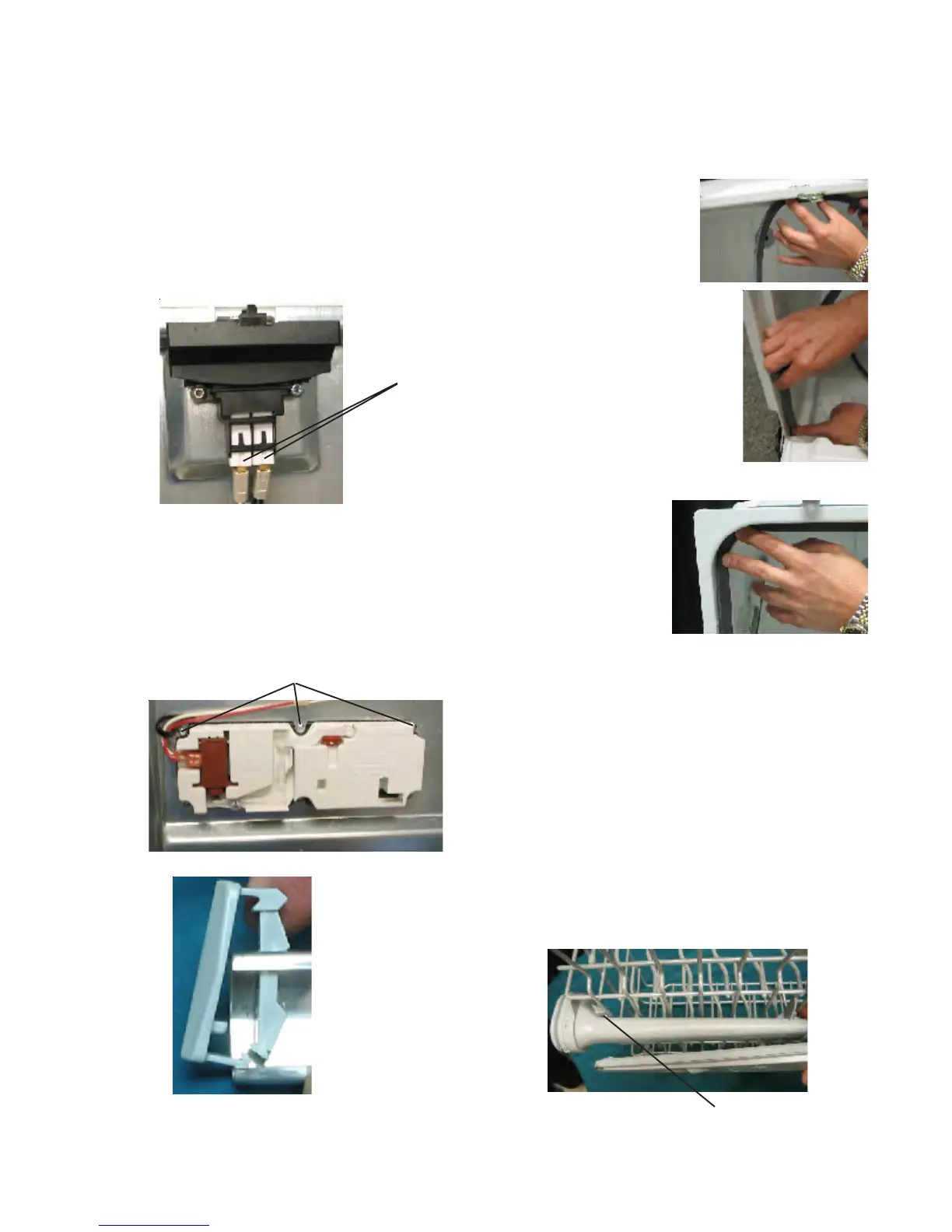

Door
Switchs
Mounting Screws
Hook opened to
remove retainer
Retainer on rear of center
arm delivery tube
