- 8 -
DGN-TDS-N 11.03 U. H. / A. B. © Electrolux 599 512 232 EN

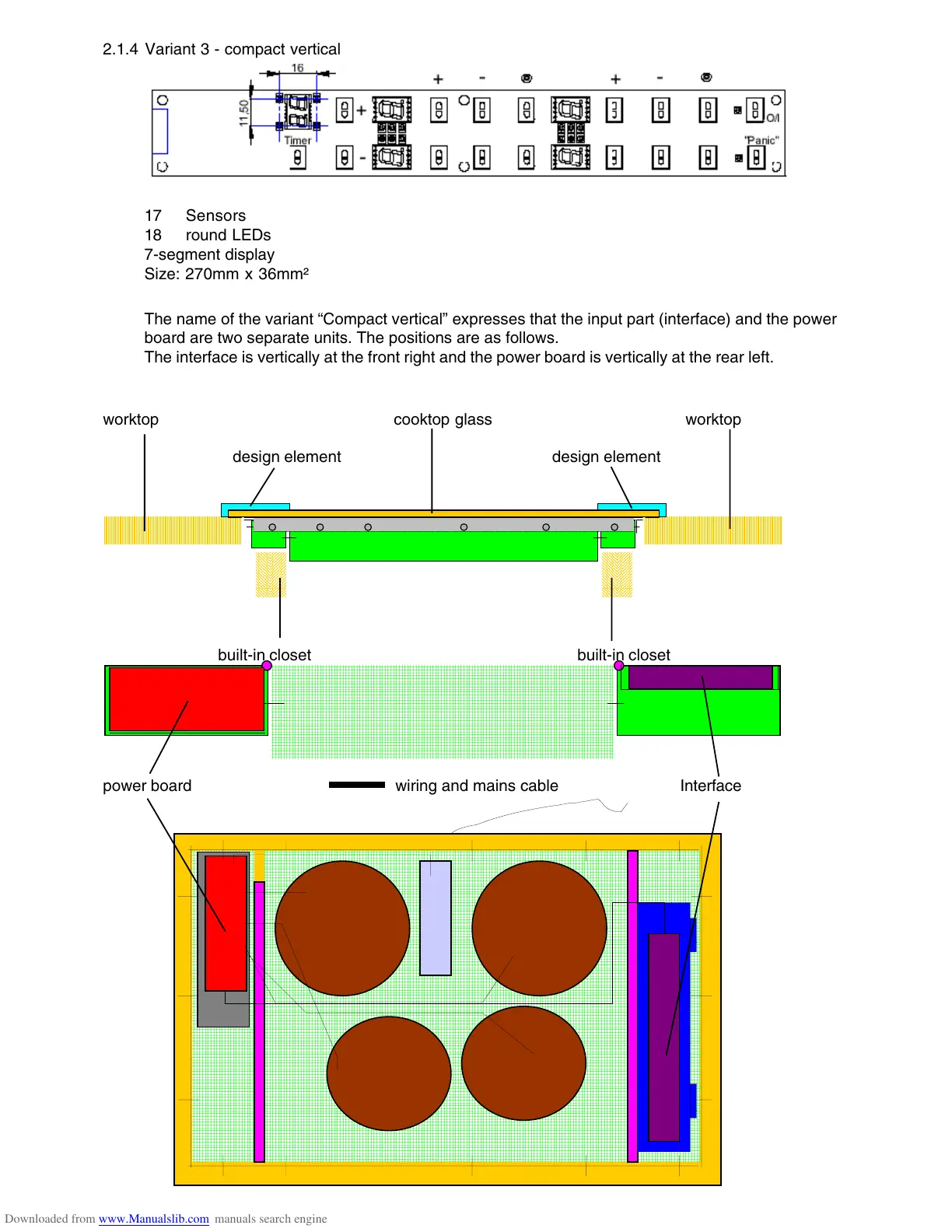

2.1.4 Variant 3 - compact vertical
17 Sensors
18 round LEDs
7-segment display
Size: 270mm x 36mm²
The name of the variant “Compact vertical” expresses that the input part (interface) and the power
board are two separate units. The positions are as follows.
The interface is vertically at the front right and the power board is vertically at the rear left.
Interface
power board wiring and mains cable
worktop cooktop glass worktop
design elementdesign element
built-in closetbuilt-in closet
