1011 9
7
D1669
+24Vdc 0V
230V-50/60Hz
Notice
Date Page
05102004
INSTALLATION
MANUAL

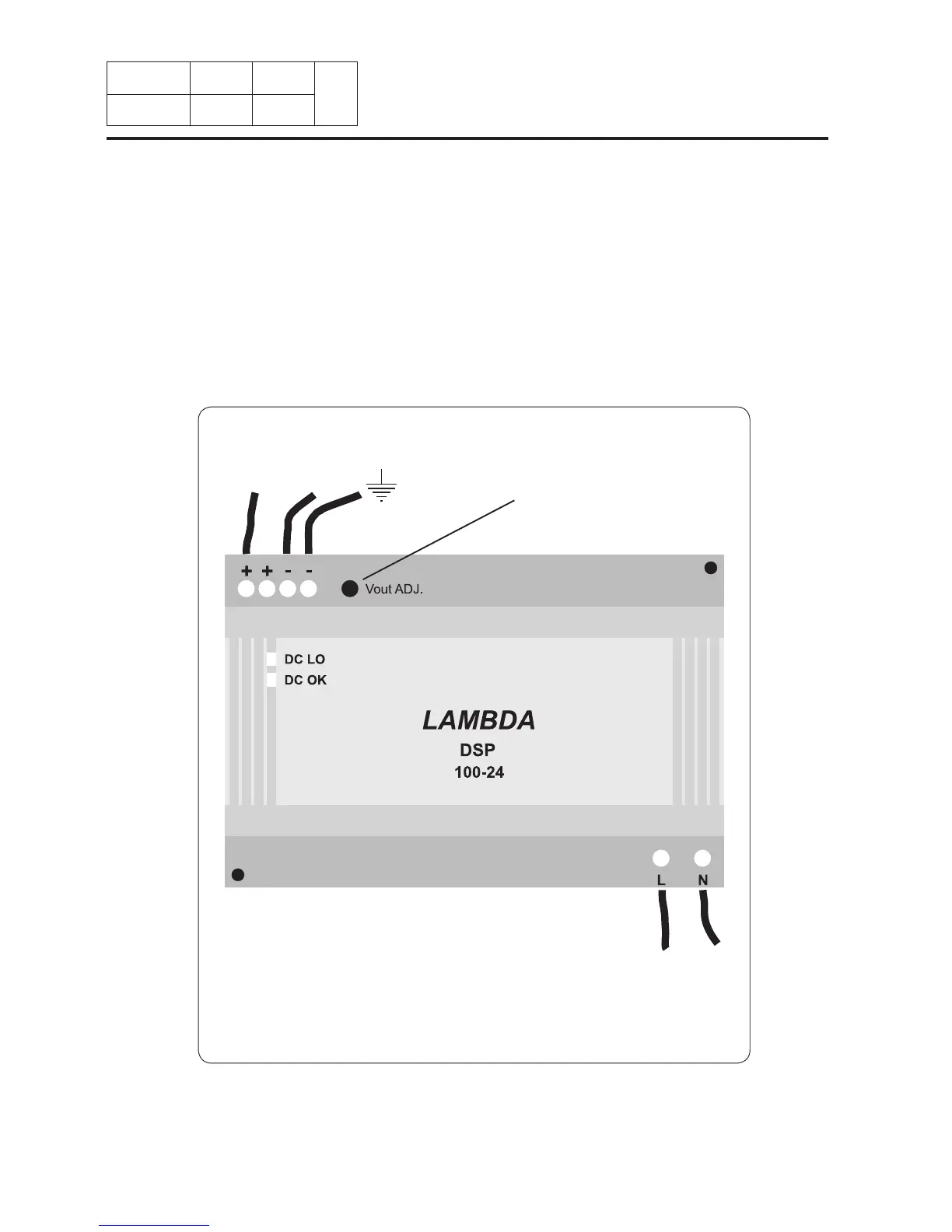

Connection diagrams for the control circuit power supply (T2)
The tension of the control circuit delivered by the power supply must be 24 volts dc. The supply
tension for your machine is normally of 230 / 400 volts between phases, this tension can
however be different. The potentiometer allows to adjust the tension.
Tension adjustment
7. Installation
