Notice
Date Page
05102004

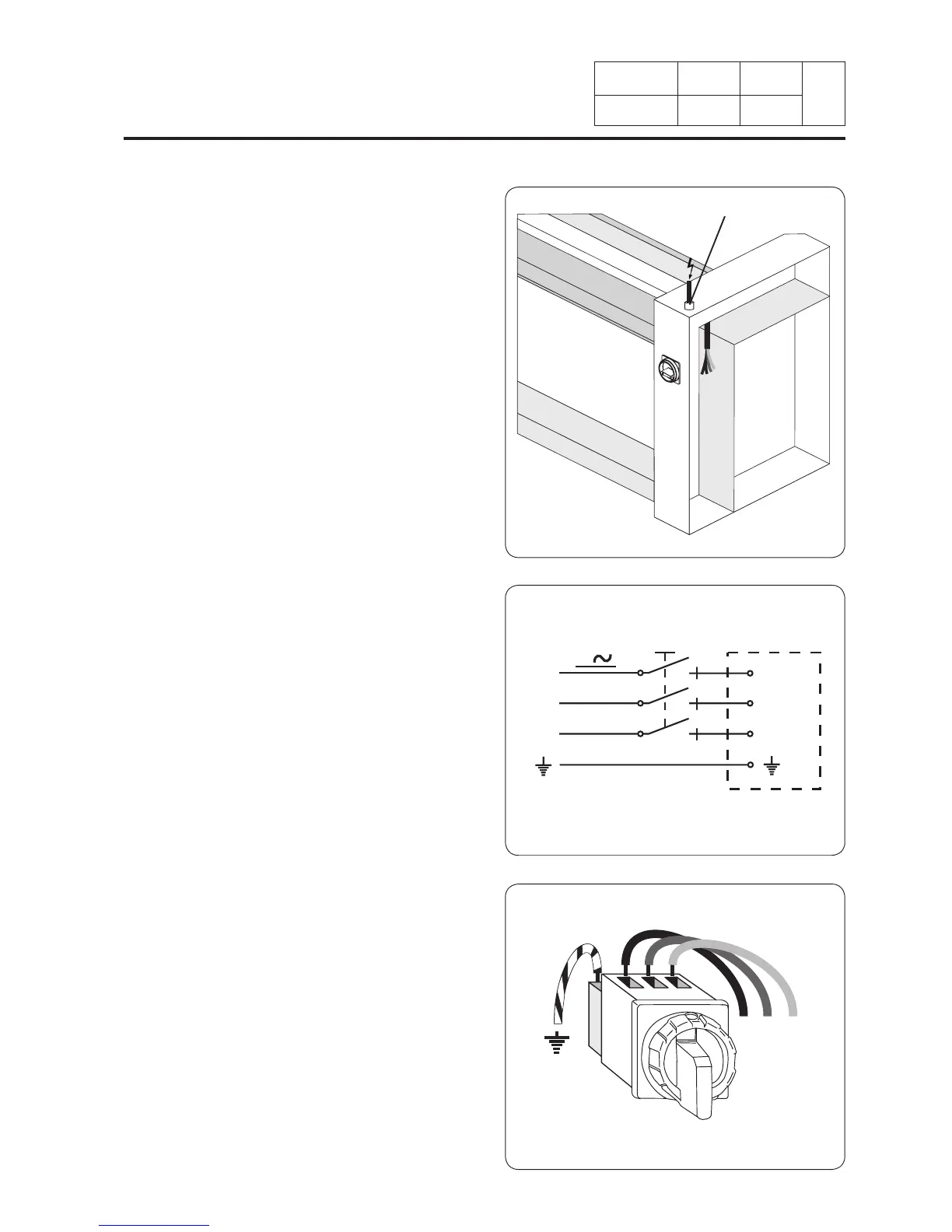

INSTALLATION
MANUAL
7. Installation
Stufng box
For each machine, install a xed multipole
circuit breaker (or fuses protector) in the
laundry main cabinet.
Connect the power supply cable on the
machine main switch.
Connect the 3 phases on the main switch
(see marks L1, L2, L3) and connect the
earth wire on the earth terminal (PE) of this
main switch.
(check operation, see chapter no. 8).
Pass the power supply cable of the machine
trough the stufng box on the top of the
machine.
