-The clocked power control is
normally integrated in the
timer or is controlled by an
electronic component.
-Timer, fan and turntable motor
are only running after
switching on.
-How primary, secondary and
monitoring switches are
cooperating with each other,
see under >Electr. safety
system<.
-More elements such as the
overheat thermostat for the
magnetron can be installed
depending on the model
(thermostat of oven, grilling
or air duct).
-The suppressor filter is
blocking high frequencies
and demanded by law.

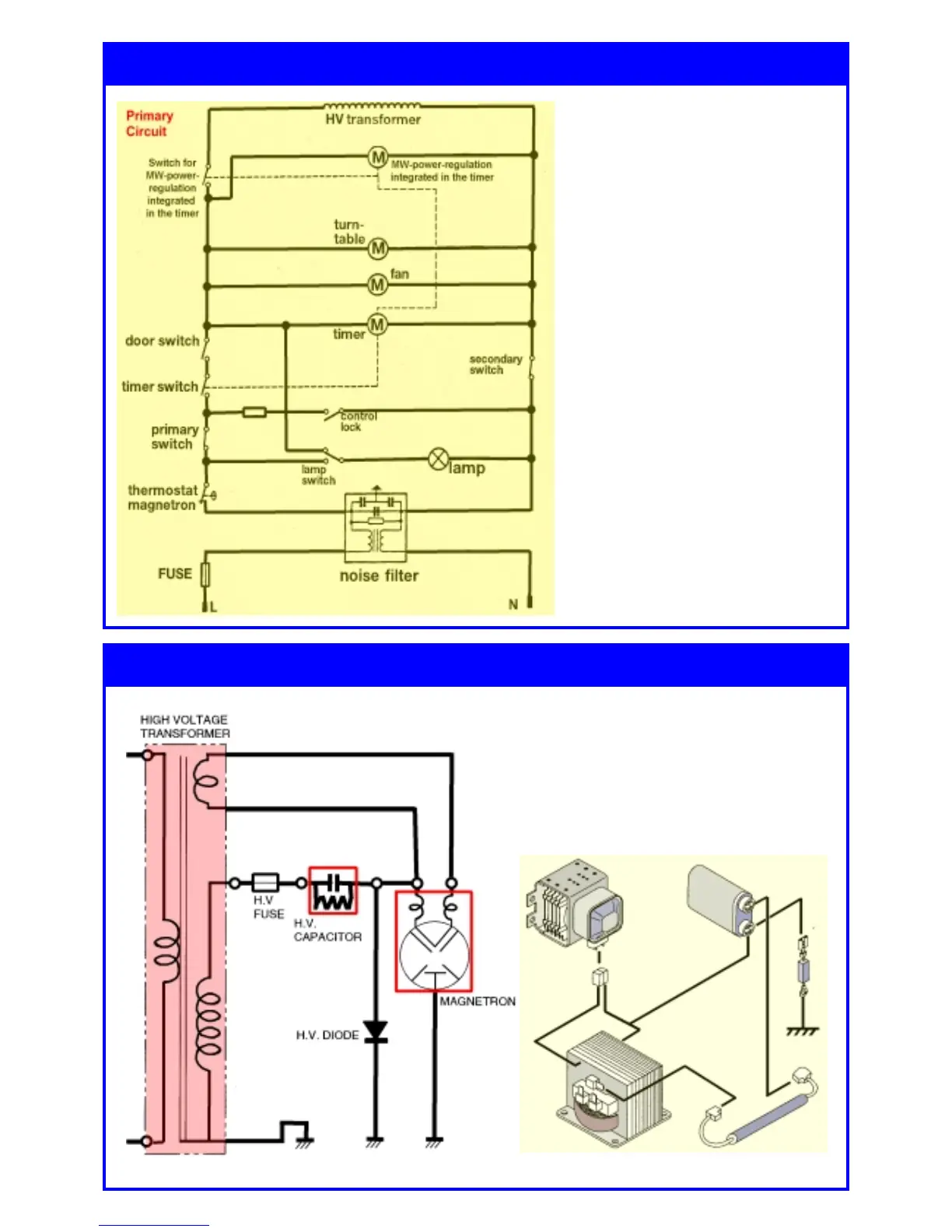

The function of the secondary and/
or high-voltage circuit is explained
on the following pages.
Primary Circuit
Secondary Circuit
