Sample Illustration Induction hob
With radiation-heated hobs, the HOC power electronics can be accessed after the silicone
frame has been removed. Please refer to Service Manual 599 519 523 for further information on
the servicing of induction hobs.

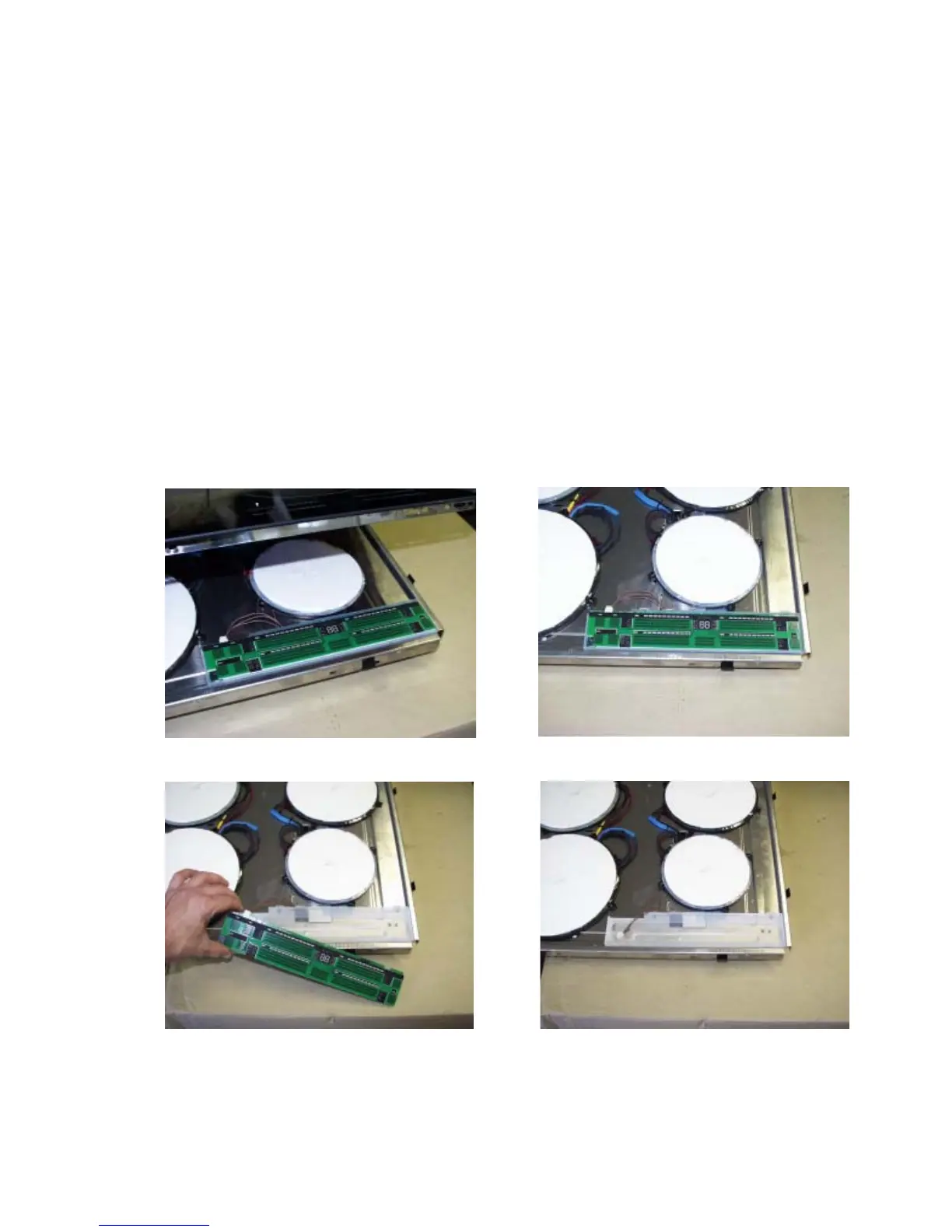

Assembly situation „KITE“ input electronic
The `KITE´ input electronics system can be accessed after the top glass/top trough frame
connecting screws have been loosened and the top glass has been lifted off; it can now be
easily removed together with the silicone sealing mat. This is valid for both radiation-heated
hobs and hobs with induction heating.
The silicone sealing mat is enclosed with the configured `KITE´ input electronics spare part. It is
imperative that this also be replaced and carefully fitted in order to ensure the tightness of the
electronics. The `KITE´ input electronics must be exactly fitted in the mat. Check that the cable
sleeve is correctly positioned before closing the top.
