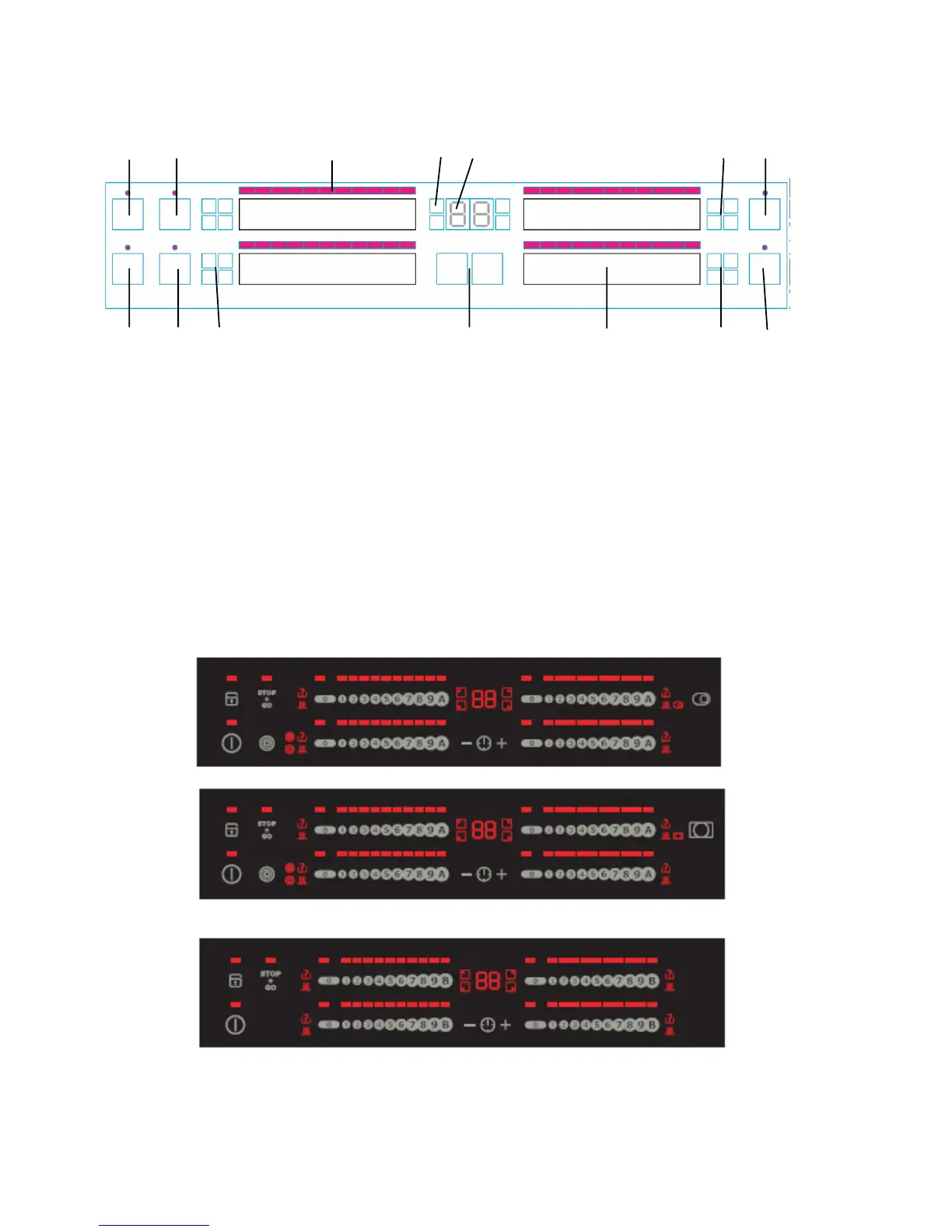

2.2 Button / and display layouts
2.2.1 „KITE“ Bar graph Variante
1 Locking/child safety lock with display
2 Additional multizone or additional connection of special functions with LED, depending on
appliance class/make
3 Light elements for the cooking stage display
4 Cooking zone displays (LED) timer function
5 Timer display, 2x 7 segment displays
6 On/Off with display
7 Cooking zones status displays (LED) depending on appliance class/make
- Pot recognition
- Automatic deactivation
- Residual heat ...
8 Timer operation
9 Cooking stage selection
