The `HOC 2010´power electronics comprises a row of relays, a transformer and other
components which are required to supply power to the relays and the input electronics. It
receives the electrical control signals which are transmitted by the input circuit board and
supplies the corresponding radiator with power depending on the impulses.
Each of the connector lugs and relays are designated on the circuit board. These designations
are also on the circuit diagrams.

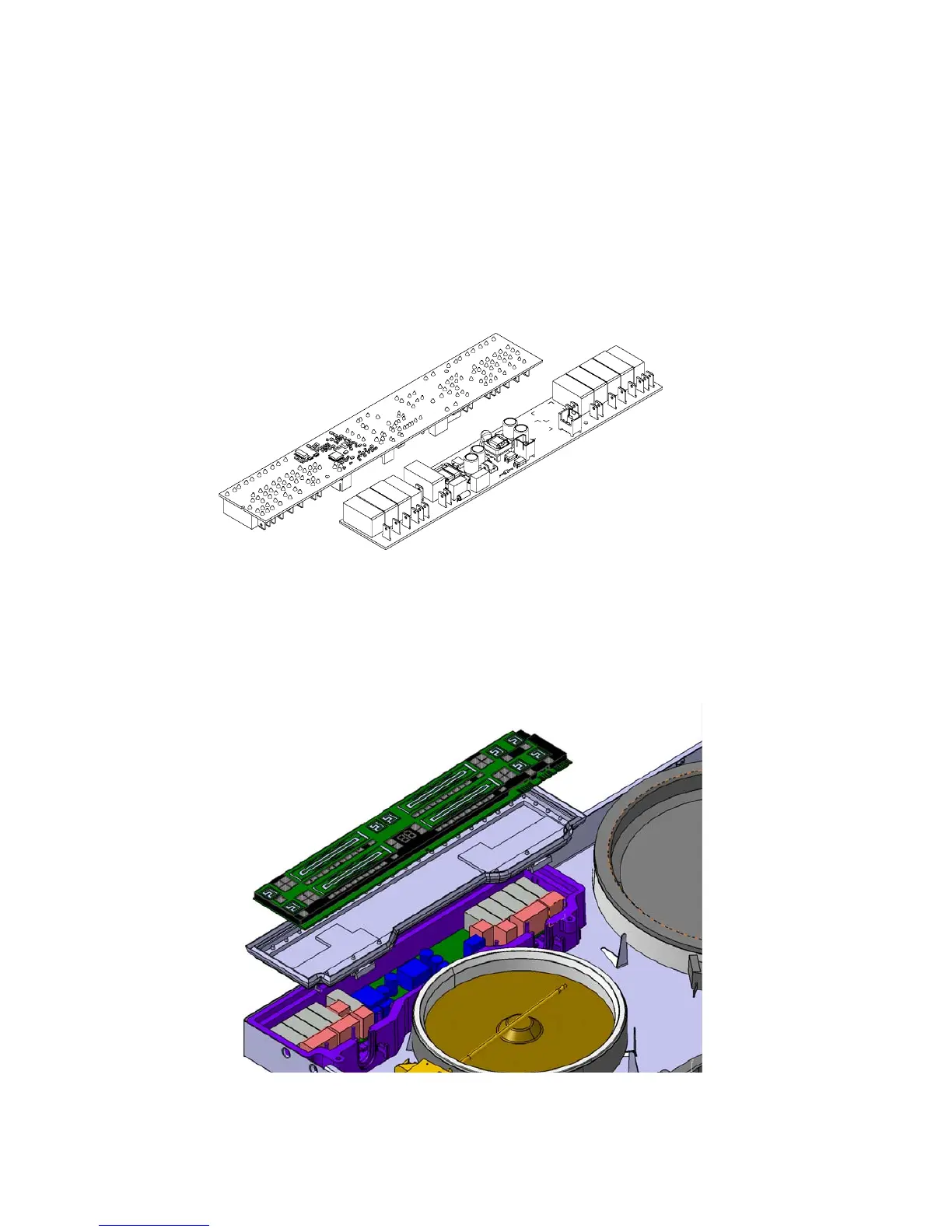

4.2 „HOC 2010“ power electronics for radiation-heated hobs
Assembly situation
