12
Installation manual

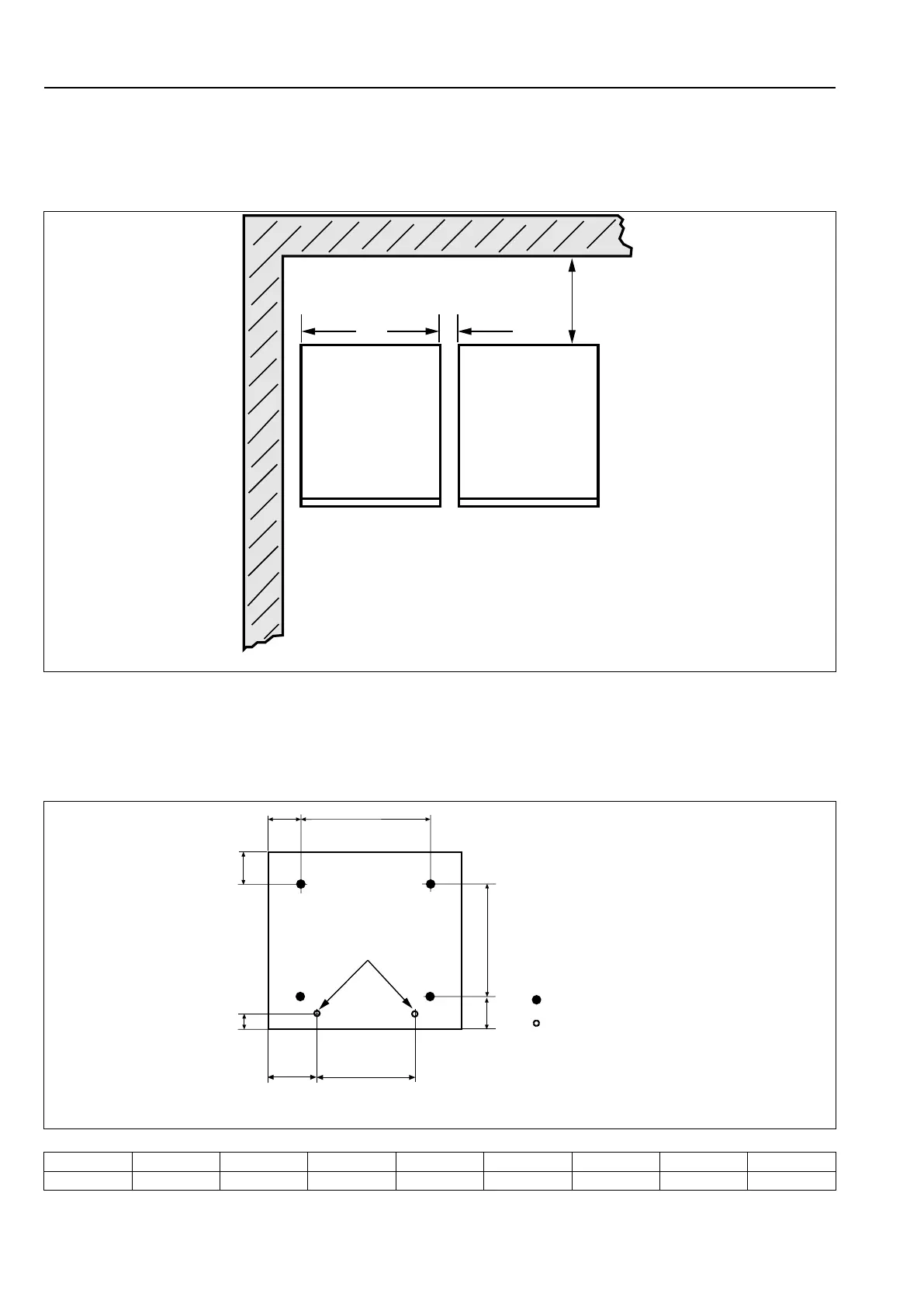

4.3 Siting
Install the machine close to a floor drain or open drain.
The machine should be positioned so that there is plenty of room for working, both for the user and service personnel.
The figure shows minimum distance to a wall and/or other machines.
500 mm /
20 inch
25 mm /
1 inch
25 mm /
1 inch
fig.W00176D
4.4 Mechanical installation
If the machine is not to be mounted on a base the machine must be fastened to the floor.
The table shows the correct drilling points.
Mark and drill two holes (ā 8 mm) about 40 mm deep in the positions shown.
C A
D
G
F
E
B
H
FRONT
= drilling points
= position of feet
fig.5358
mm
A B C D E F G H
495 460 110 130 375 170 40 100
