Installation manual
9
3.2 Technical data
Weight, net kg 135
Drum volume litres 75
Drum diameter
mm
520
Drum speed during wash
rpm
52
Drum speed during extraction
rpm
1015
G-factor, max. 300
Heating: Electricity kW 5.4
Heating: Hot water
x
Frequency of the dynamic force Hz 16.9
Floor load at max extraction kN 1.4 ± 0.5
Sound power/pressure level at extraction* dB(A) 75/61
Sound power/pressure level at wash* dB(A) 60/46
Heat emission of installed power, max %
5
* Sound power levels measured according to ISO 60704.
3.3 Connections
Water valves DN
BSP
20
3/4”
Recommended water pressure kPa 150–400
Continuous operating pressure kPa 50–800
Capacity at 300 kPa l/min 16
Drain valve ⌀ outer mm
50/75
Draining capacity
Electrical drain
Pump drain
l/min
160
30
4 Setup

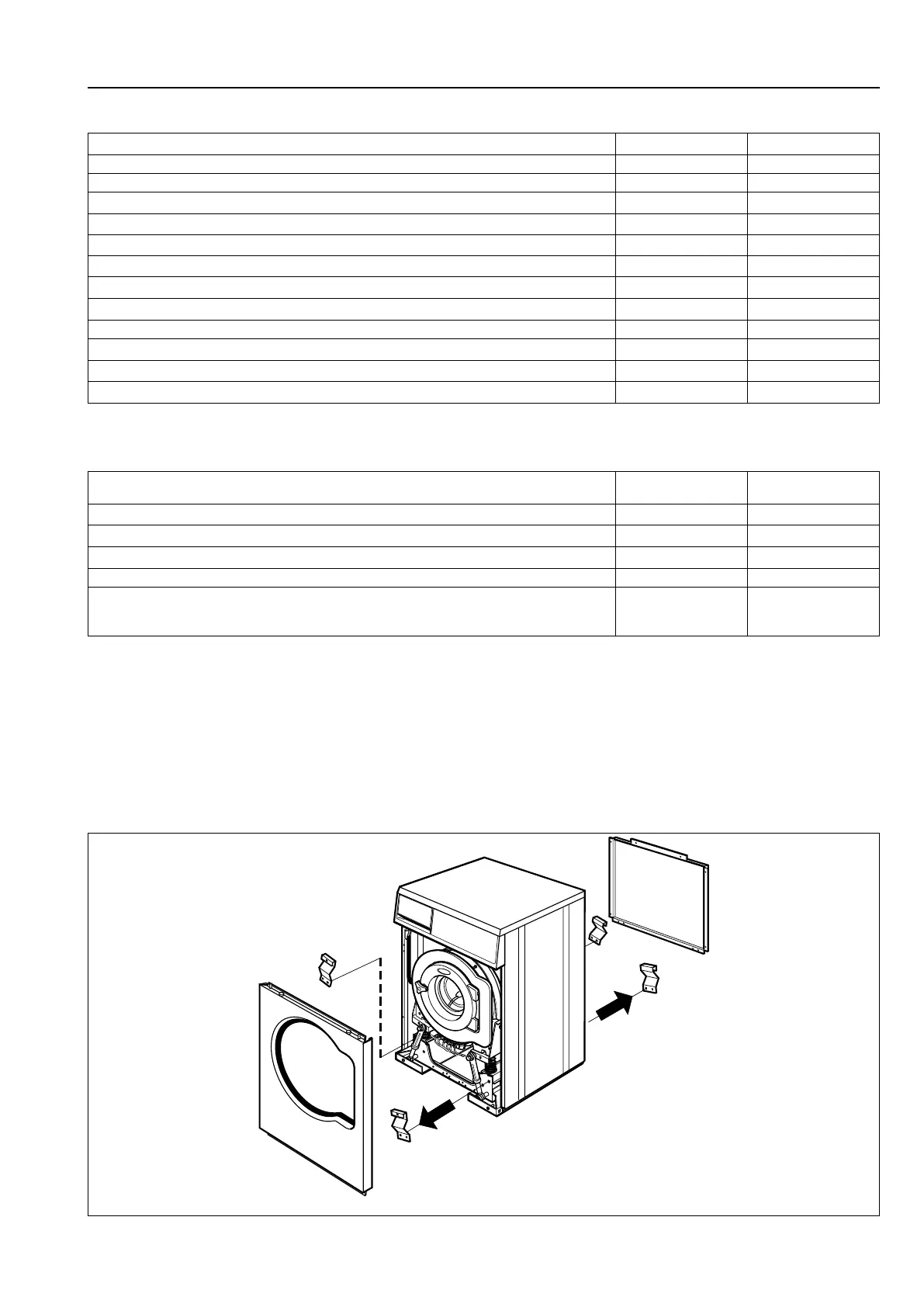

4.1 Unpacking
Remove the front and rear panel.
Remove the four transport supports. Save the transport supports if the machine needs to be moved in the future.
Note!
Once the transport supports have been removed, handle the machine carefully to avoid damage to the sus-
pension components.
fig.7788
