Electrolux PW9C Installation Manual

8
Installation manual
3 Technical data

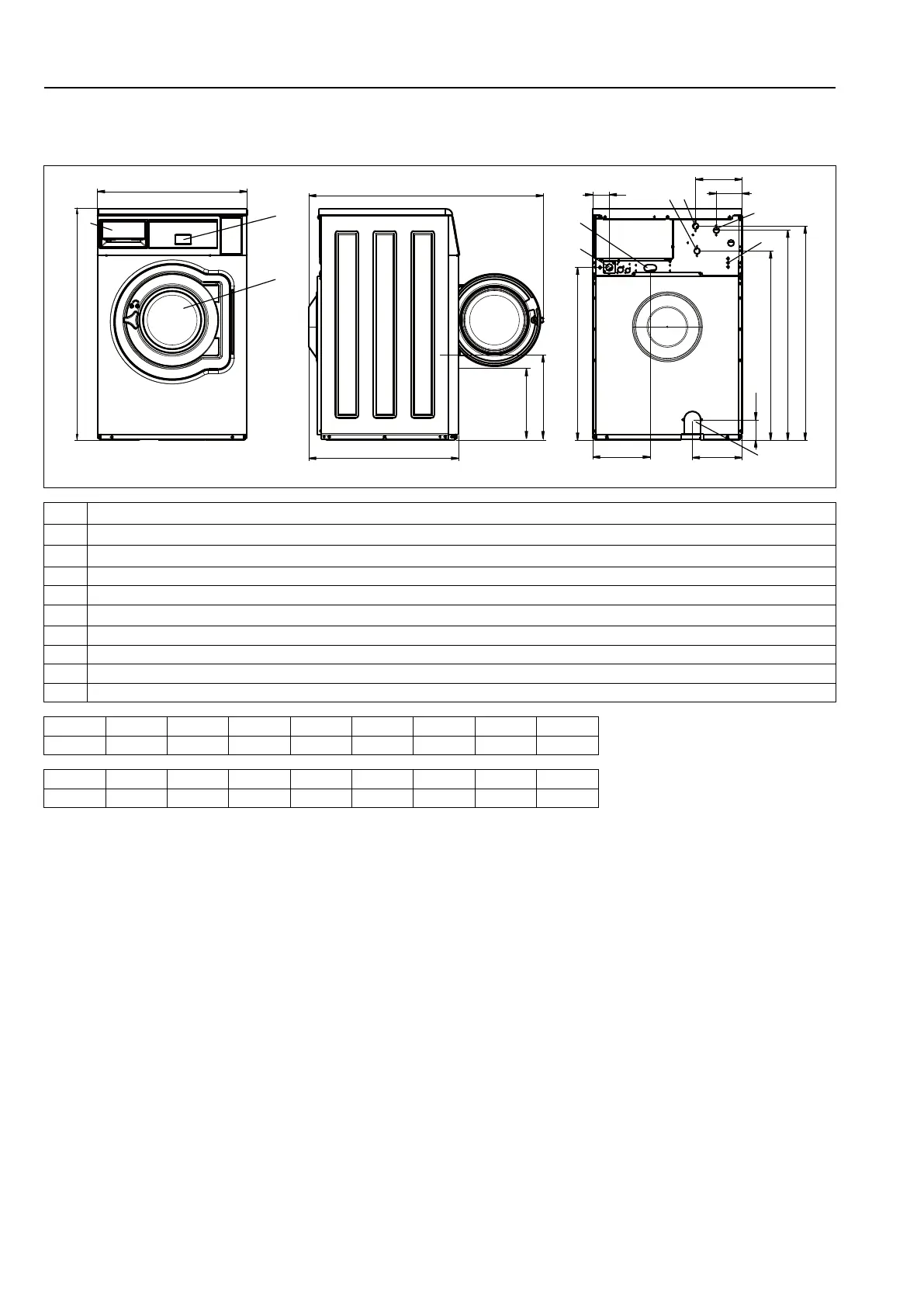

3.1 Drawing
A
1
2
C
3
B
E
G
I
J
F
H
L
K
N
M
O
8
9
5
10
4
6
7
D2
D1
fig.7792
1 Operating panel
2 Door opening, ⌀ 310 mm
3 Detergent container
4 Cold water
5 Hot water
6 Liquid detergent supply
7 Drain valve
8 Electrical connection
9 Steam connection
10 Re-used water
mm
A B C D1 D2 E F G
720 1130 1113 352 406 721 831 80
mm
H I J K L M N O
1030 224 124 1010 910 278 98 239
