Installation manual
6 Drain connection
Drain valve
Connect a 75 mm (alt. 50 mm) pipe or rubber hose to the machine’s drain pipe, ensuring a downward flow from the
machine. Avoid sharp bends which may prevent proper draining.
The drainage pipe should be located over a floor drain, drainage channel or the like so that the distance between the
outlet and the drain is at least 25 mm.

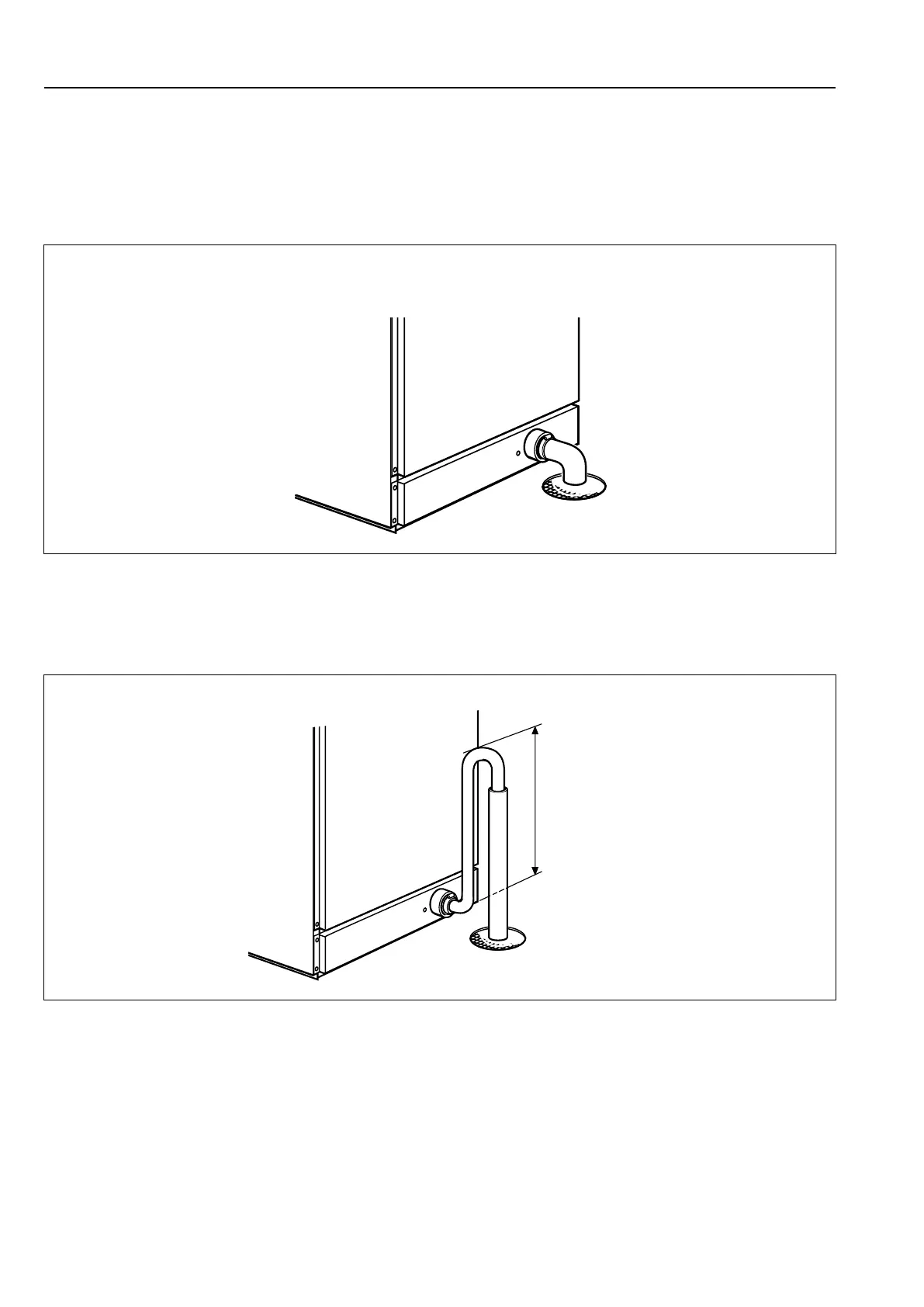

fig.5330
Drain pump
The drainage pipe should be located over a floor drain, drainage channel or the like.
The highest part of the drain hose shall be positioned according to the figure.
Make sure there is no kinks in the hose.
700 mm ± 50 mm /
27 9/16 inch ±
1 15/16 inch
fig.6318B
