Installation manual
13
Place the machine over the two drilled holes. The holes are at the front of the machine.
Level the machine with the feet of the machine. Screw in the feet as much as possible before starting to level the ma-
chine. This will make the machine stand steadier.
Insert the expansion bolts supplied into the holes drilled in the floor. Fit the washers and nuts and tighten well.
It is of the upmost importance that the machine is placed in level, from side to side as well as front to rear.
5 Water connection
All water intake connections to the machine should be fitted with manual shut-off valves and filters, to facilitate instal-
lation and servicing.
Water pipes and hoses should be flushed clean before installation.
The machine shall be connected with new water hoses. Re-used water hoses must not be used.
Hoses are to be of an approved type and grade and comply with IEC 61770.
After installation hoses must hang in gentle arcs.

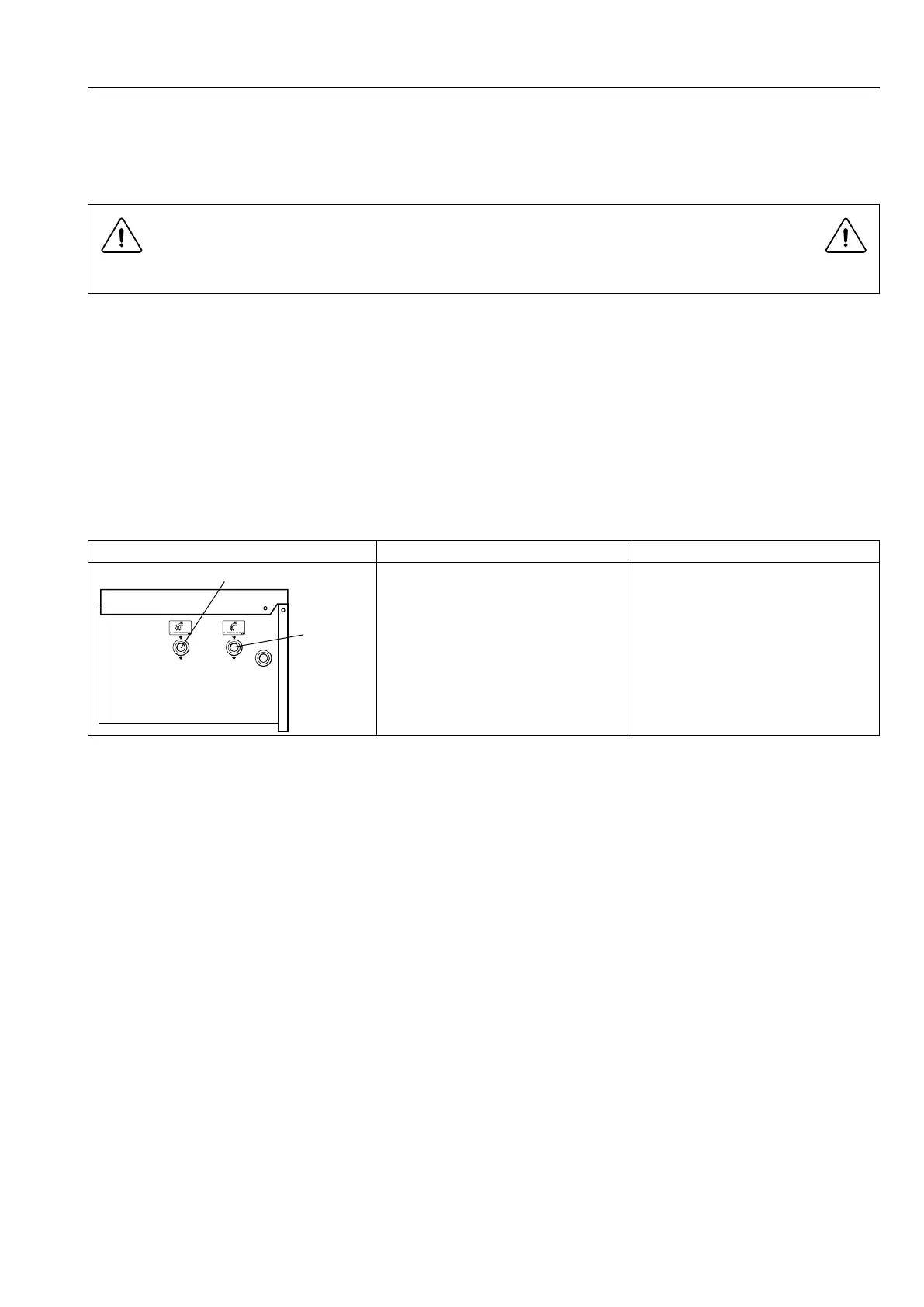

All connectors present on the machine must be connected. The table shows the possible connection options, which
will depend on the water types to be connected to the machine. Information is also available on the panel above the
connections.
Water type Water connection
• Cold and hot 1. Cold
2. Hot
Water pressure:
Continuous operating pressure: 50–800 kPa (0.5-80 kp/cm
2
)
Maximum: 1000 kPa (10 kp/cm
2
)
Recommended: 200–600 kPa (2–6 kp/cm
2
)
Note!
If the water pressure is below the minimum value, the wash result can not be guaranteed for certain program.
For WRAS-approved machines; always check connection requirements on WRAS website.
For KIWA-approved machines; always check connection requirements on KIWA website.
For NSF-approved machines; always check connection requirements on NSF website.
Plumbing
This machine is approved for all UK applications as suitable for category 5.
The product is listed in the WRAS regulations advisory scheme directory and is suitable for direct connection to
mains drinking water. No special plumbing arrangements e.g. break tanks are required.
Water Council approved double check valves should be fitted in between the stopcocks and the water inlet hoses.
FOR AUSTRALIA:
The appliance shall be installed in accordance with AS / NZS 3500.1
The appliance need to be installed using dual check valves.
Contact details for after sales service: service.au@electroluxprofessional.com
