INSTALLATION INSTRUCTIONS | SMART LINE BOILING PAN
EN | 10-2018 DOC N° ST0 9183-02 27
12.6 Multi stand
NOTE
Please follow these instructions
• Boiling pan with the option ice water
cooling (SV6I and SP6I) can only stand on
the far left in a multi-stand.
50L 80L 100L 150L 200L 300L
N * 1245 1375 1420 1480 1550 1600
R 595 763 763 883 927 1079
Z 225 225 225 245 245 245
W 98 82 82 142 164 240
* Measure N is selected according to the largest pan in the multistand
1 Fixtures: PNC 928029 (50L, 80L and 100L)
PNC 928030 (150L, 200L, 300L)
2 Alternative direction of drainag
Connections:
A Hot water: DN15 (G1/2”) internal thread
B Cold water: DN20 (G3/4”) male thread
C Electrical cable
H Steam connection, 110-170 kPa (1.1-1.7 bar)
Steam-heated pans: DN20 (G3/4”) Internal thread
I Condensation connection (Steam-heated pans):
DN20 (G3/4”) Internal thread
NOTE
Please follow these instructions
• Connections for appropriate pan in the right
column.
• Condensation connection always in the col-
umn to the left of the pan.

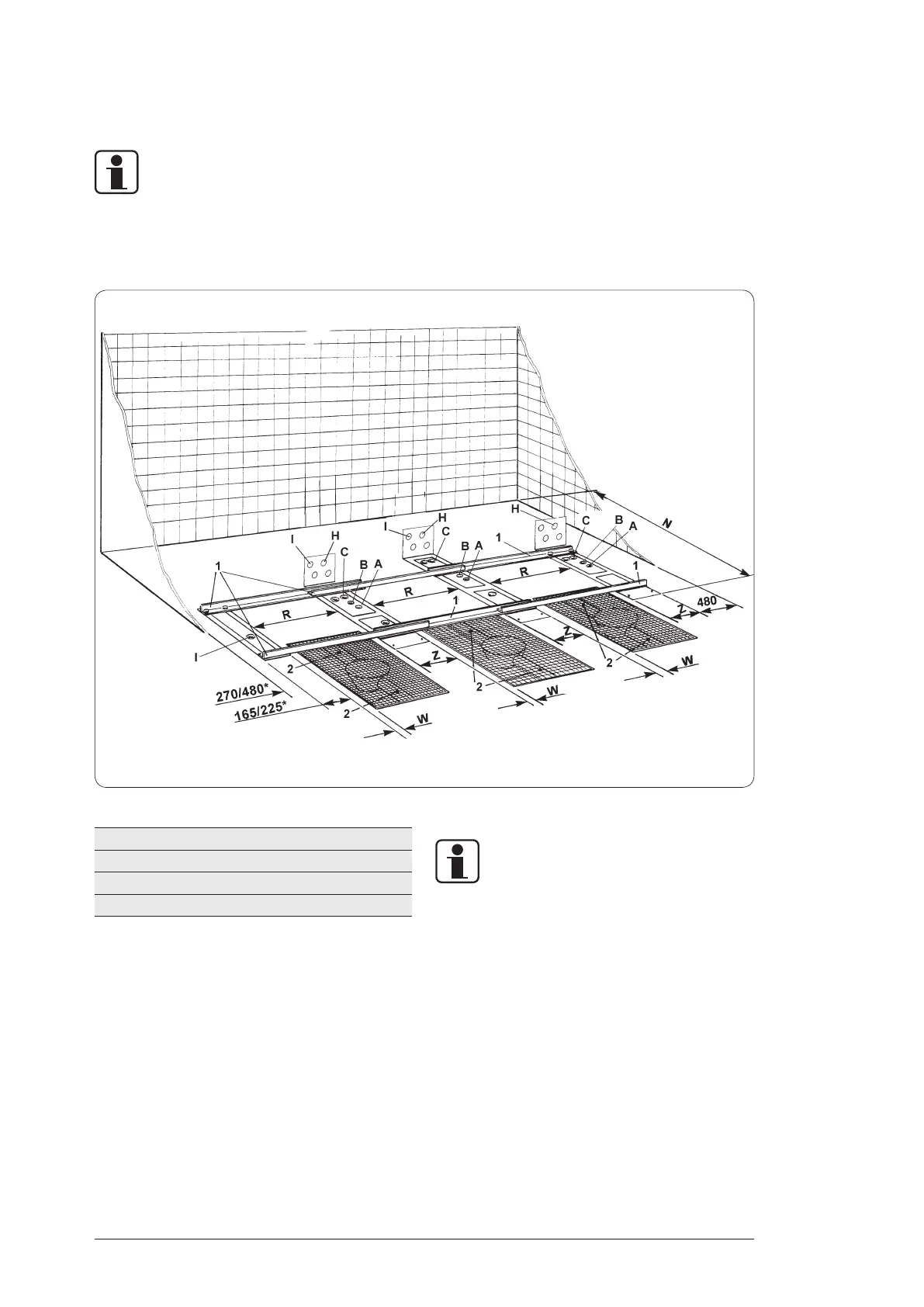

Fig. 15
