Setup
13
Setup T4650
Positioning

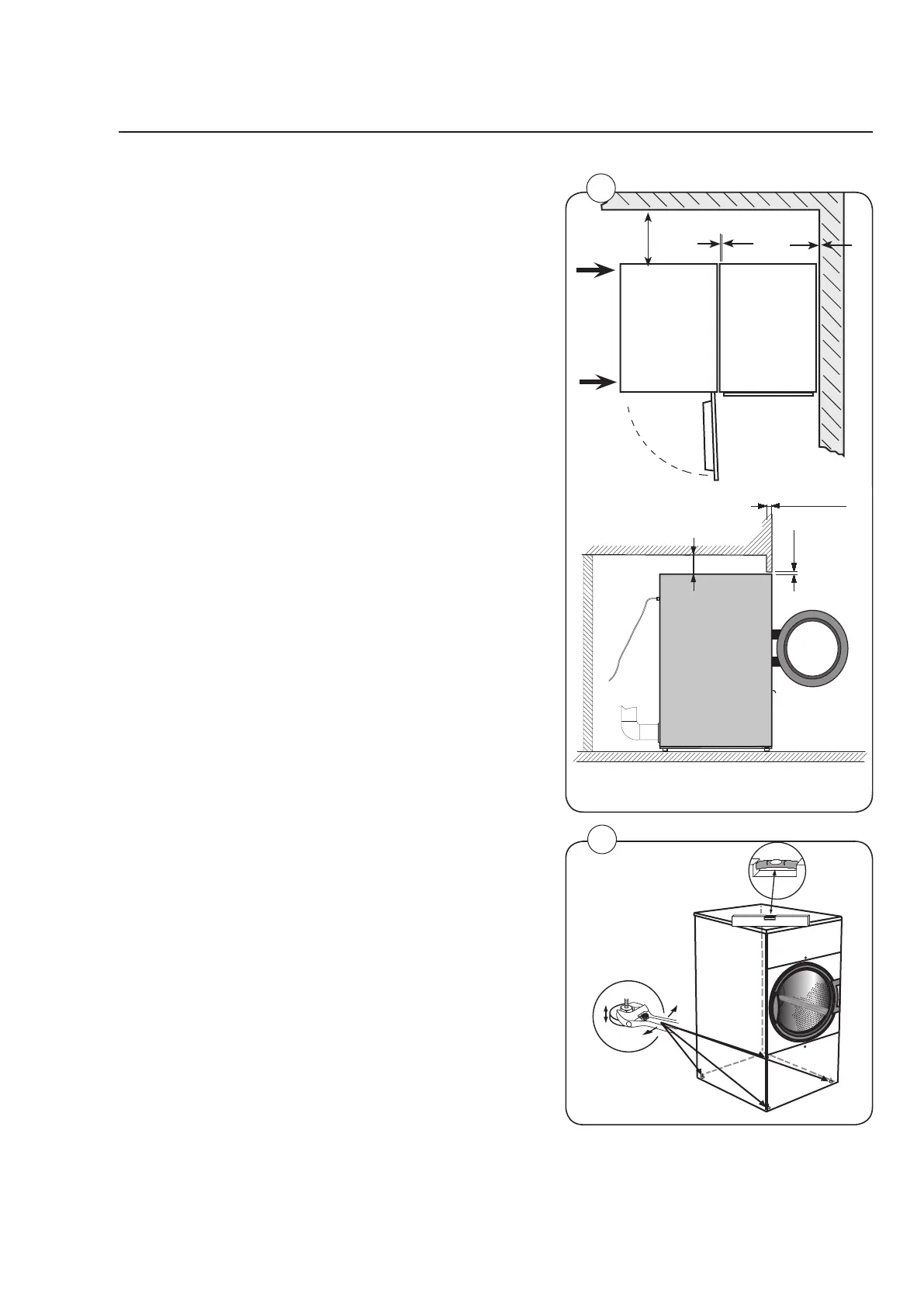

Fig. 1 Position the tumble dryer so that there is
plenty of room for working, both for the user and
for the service technician.
The distance from the wall or other equipment
behind the tumble dryer should be at least 500
mm and the space at the sides at least 10 mm.
Note that for servicing purposes, access to the
rear of the tumble dryer is required.
Mechanical installation
Fig. 2 Adjust the machine to make it stand
horizontally and stably on all four feet.
The max. height adjustment of the feet is 15
mm.
2
1
500
10
10
A
A
Min.150 mm
Min. 45 mm
Max. 50 mm
A - A
