Evacuation system
17
1
Evacuation system
Air principle

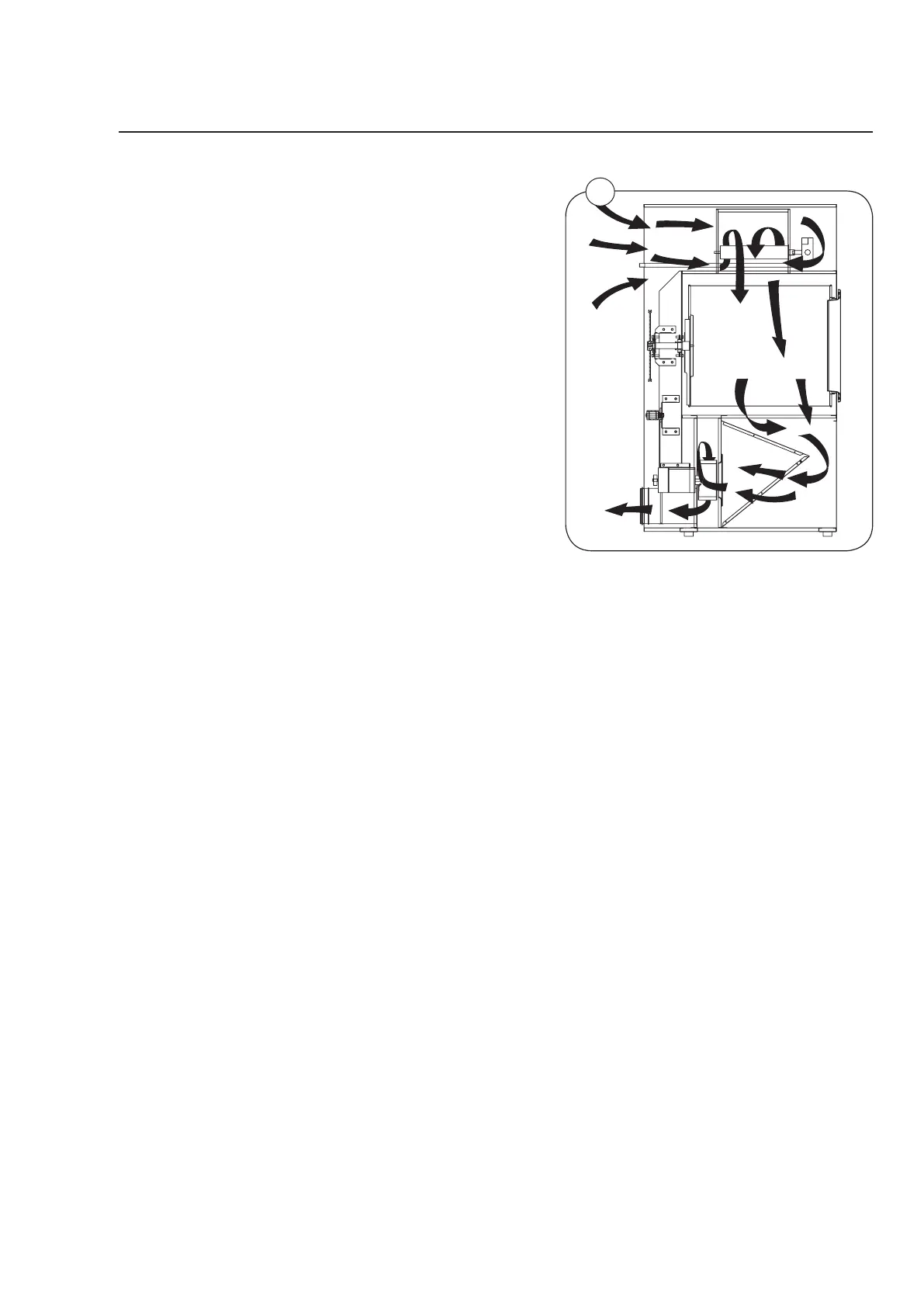

Fig. 1 The blower creates low pressure in the
dryer, drawing air into the cylinder via the heating
unit.
The heated air passes through the garments and
the cylinder vents.
The air then flows out through a lint filter
positioned straight below the drum. After this, the
air is evacuated through the blower and exhaust
system.
It is very important that the dryer gets enough
fresh air, see next section.
