Setup
11
Setup T4290, T4530
Unpacking
When unpacking the machine, handle it with
care. There are no transport clamps.
Positioning

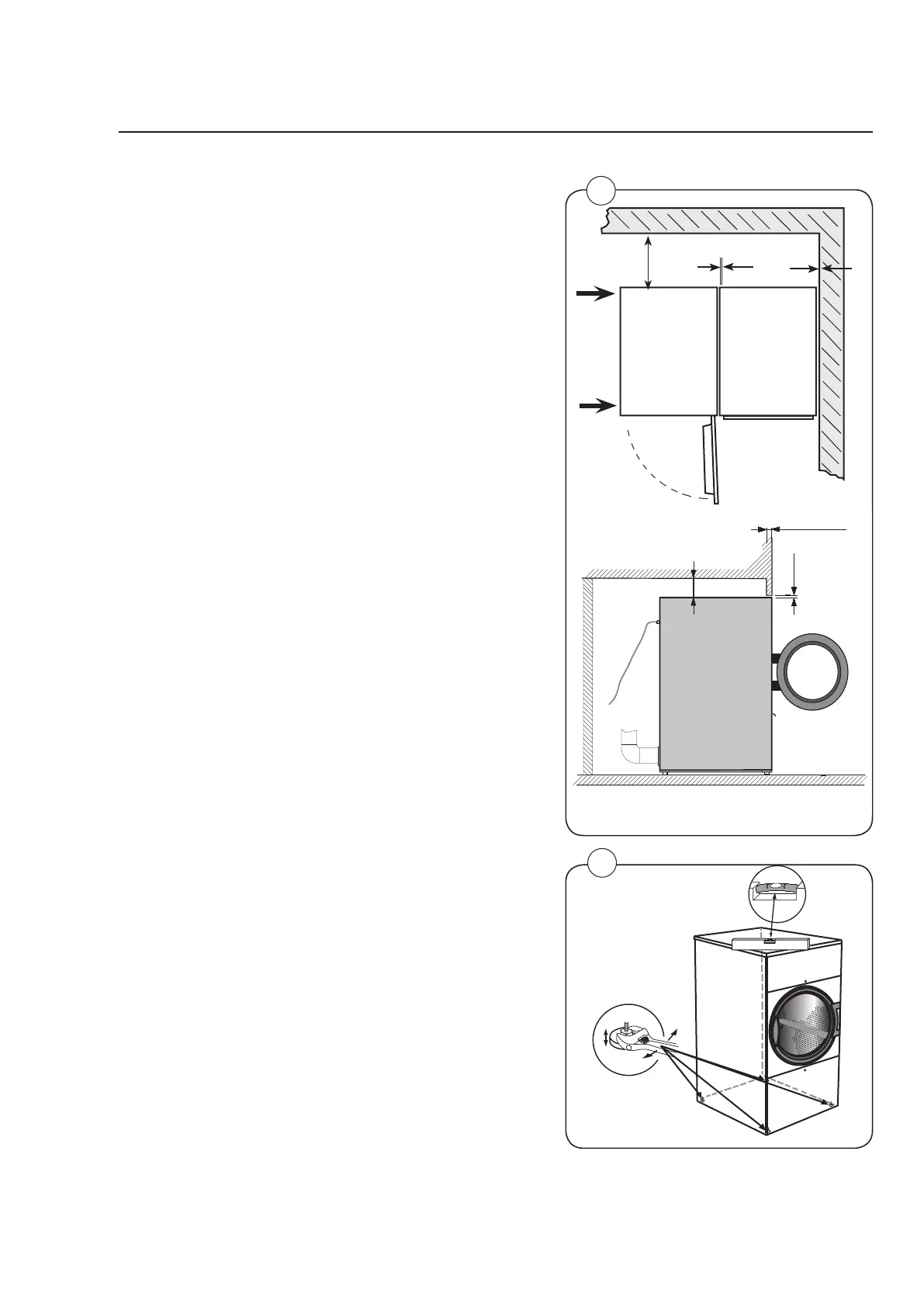

Fig. 1 Position the tumble dryer so there is plenty
of working room, both for the user and for the
service technician.
The distance from the wall or other equipment
behind the tumble dryer should be at least 500
mm and the space at the sides at least 10 mm.
Note that for servicing purposes access to the
rear of the tumble dryer is required.
Mechanical installation
Fig. 2 Adjust the machine to make it stand
horizontally and stably on all four feet.
The max. height adjustment of the feet is 15 mm.
2
1
500
10
10
A
A
Min.150 mm
Min. 45 mm
Max. 50 mm
A - A
