Ship installation
16
Ship installation
16
1000
706
45 45
Type 4290 / 30
904
1067 = Type 4530 / 50
45 45
Type 4530 / 50
Type 4650 / 75
A
A
A
A
M10
M10
M10
A-A
26
26
1253 = Type 4650 / 75
Installation on board a ship
The four accompanying fittings are fastened to the foundation by means
of 4 x M10 set screws (supplied with marine models).
Fastening to the base
If the dryer needs fastening to the base a kit containing 4 fittings can be
ordered. Kit no. 472 77 77 01.
The four fittings are fastened to the base by means of
4 x M10 expander bolts.
Note!
Ship installation is not applicable for gas heated machines.

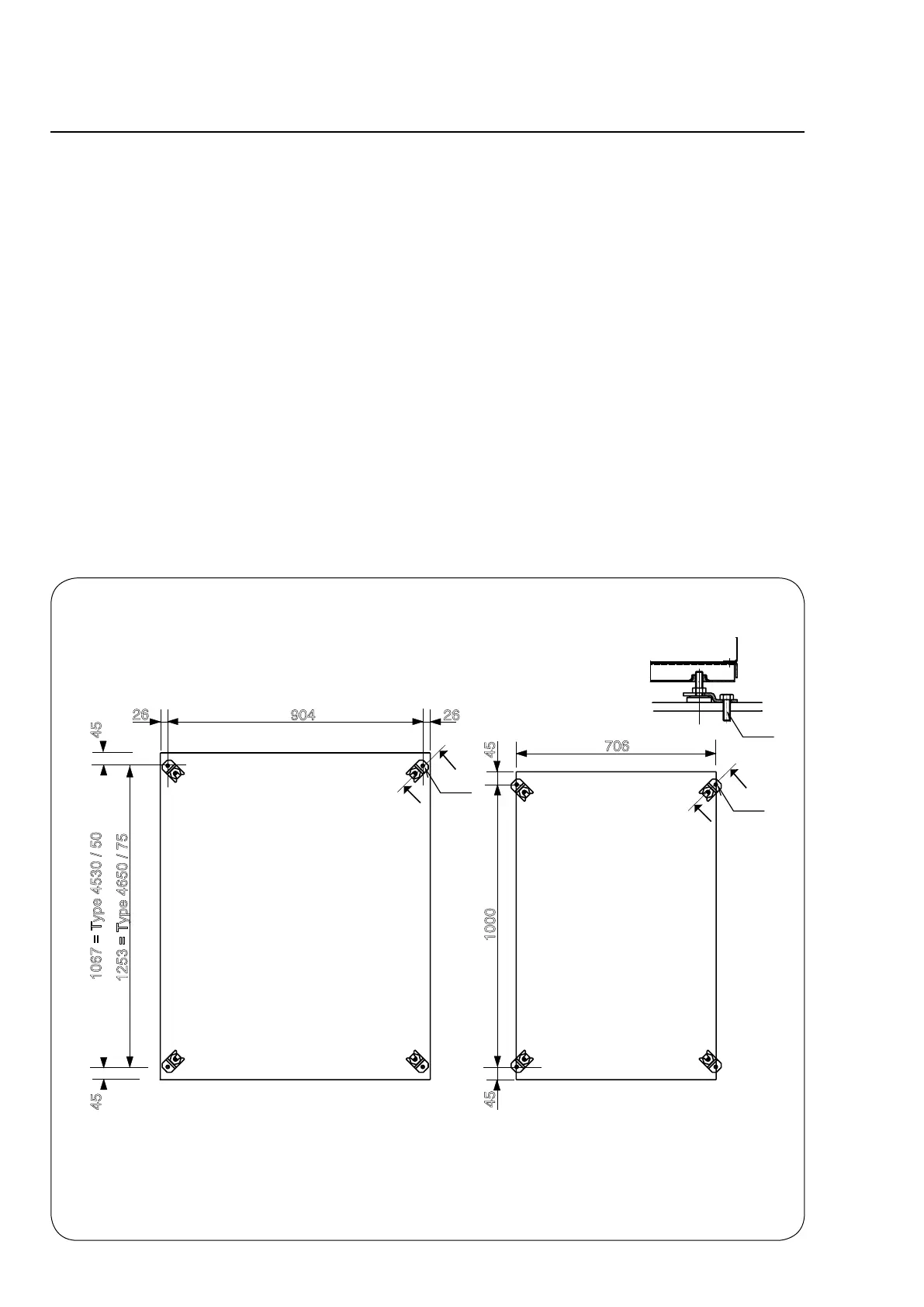

Drilling plan
