Reversing the door
The dryer is usually delivered with a right hinged
door but the door can be changed to left hinged
position, as illustrated below, or vice versa.
Door reversal instructions
1. Disconnect the power supply to the dryer.
2. Dismount the door.
3. Dismount locking unit

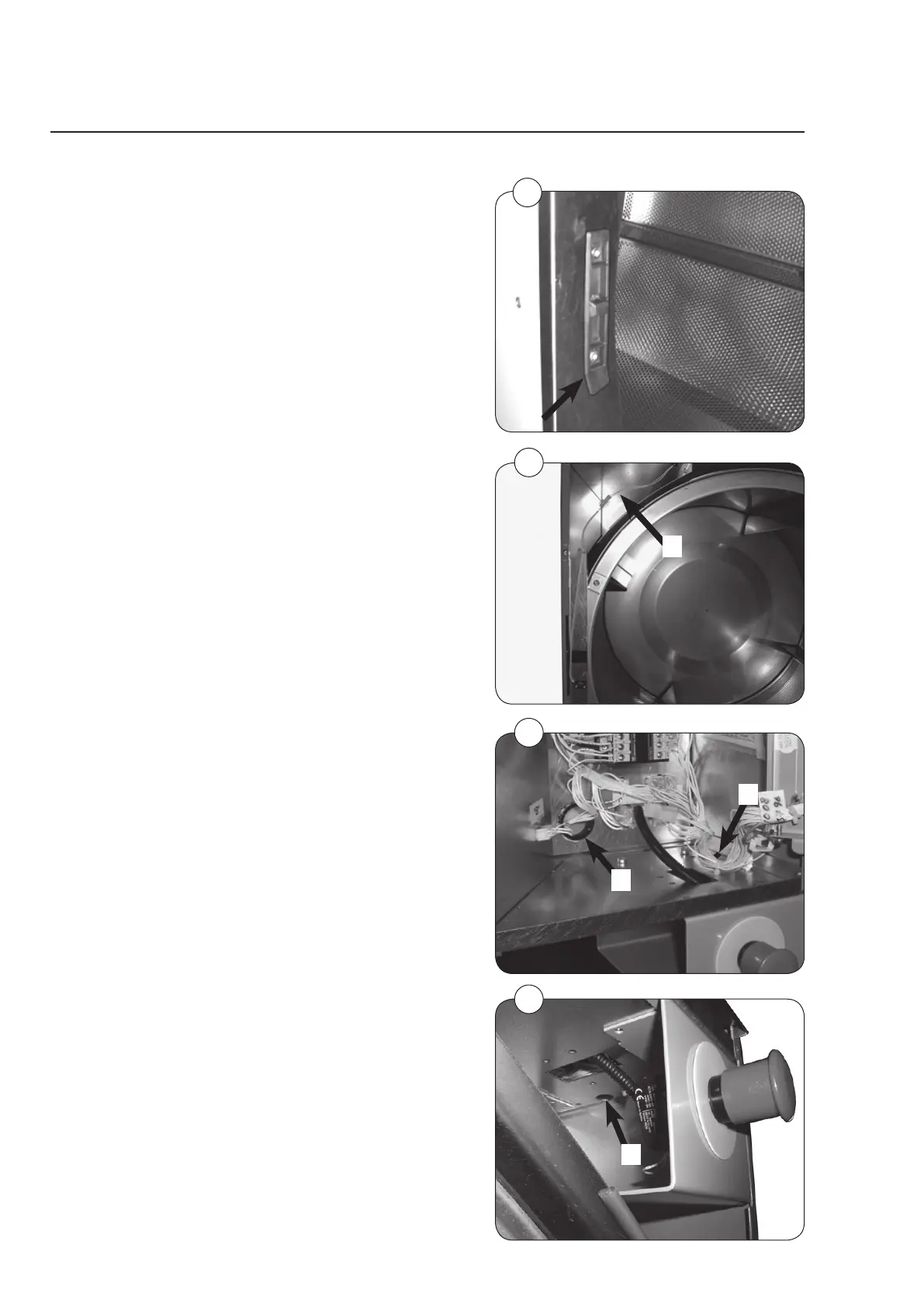

A, fig. 1.
4. Remove the screws that secure the centre
front panel to the dryer and remove the entire
panel.
5. Disconnect the door switch wires
B and move
them to the opposite side of the dryer, fig. 2.
Pull the wires through opening
C and down
through opening
D. Also remember to move
the bushing and mount it in opening
D,
fig. 3 & 4.
6. Dismount the bracket with switch and turn it
180°.
Note! When turning the bracket the wires
are facing downwards. Lead them upwards
towards the operating panel and fasten them
with cable strips.
7. Mount the bracket with switch on the left side
and connect the wires as before.
To be continued on the following page.
1
A
C
D
3
4
D
2
B
