4
6
5
L1
L2
L3
N
1.25 A external
control only
Continued

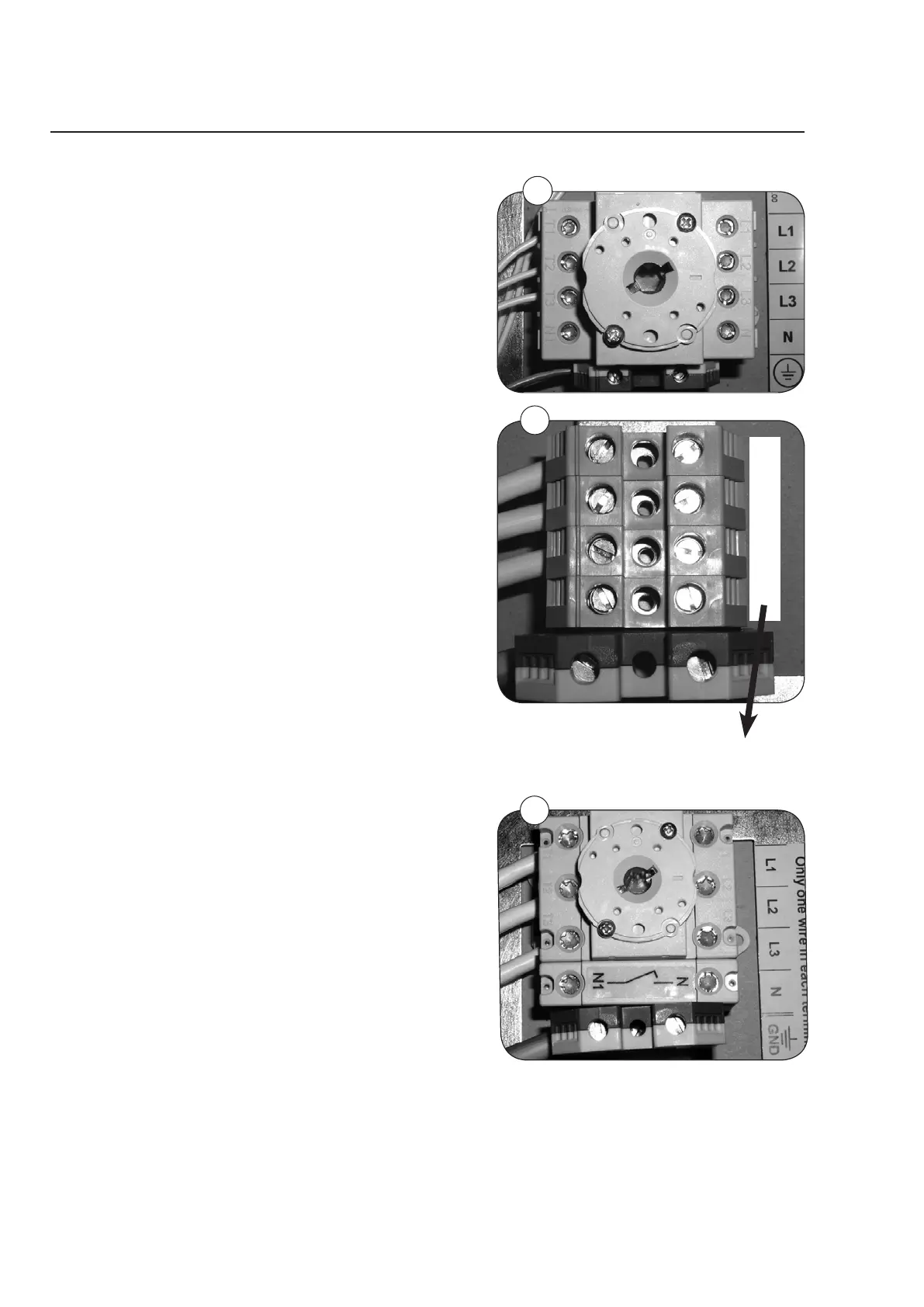

Fig. 4 Gas and steam heated 3-phase
with supply disconnector
Fig. 5 Electric heated 3-phase
Fig. 6 Electric heated 3-phase
with supply disconnector
Cable dimension
For calculation of the connection cable
dimension, please refer to local guidelines.
Fuse group and effect
The sizes of the fuse group and the effect are
shown on the following pages.
Function check
The function check is described in the back of
this manual.
Note! Correct direction of rotation is important!
The dryer must be equipped with
supplementary protection in accordance
with heavy current regulations.
