Electrolux WD4130 - Mechanical Installation Procedure

13
Installation
5358
5
A
C
E
B
D
G
F
H

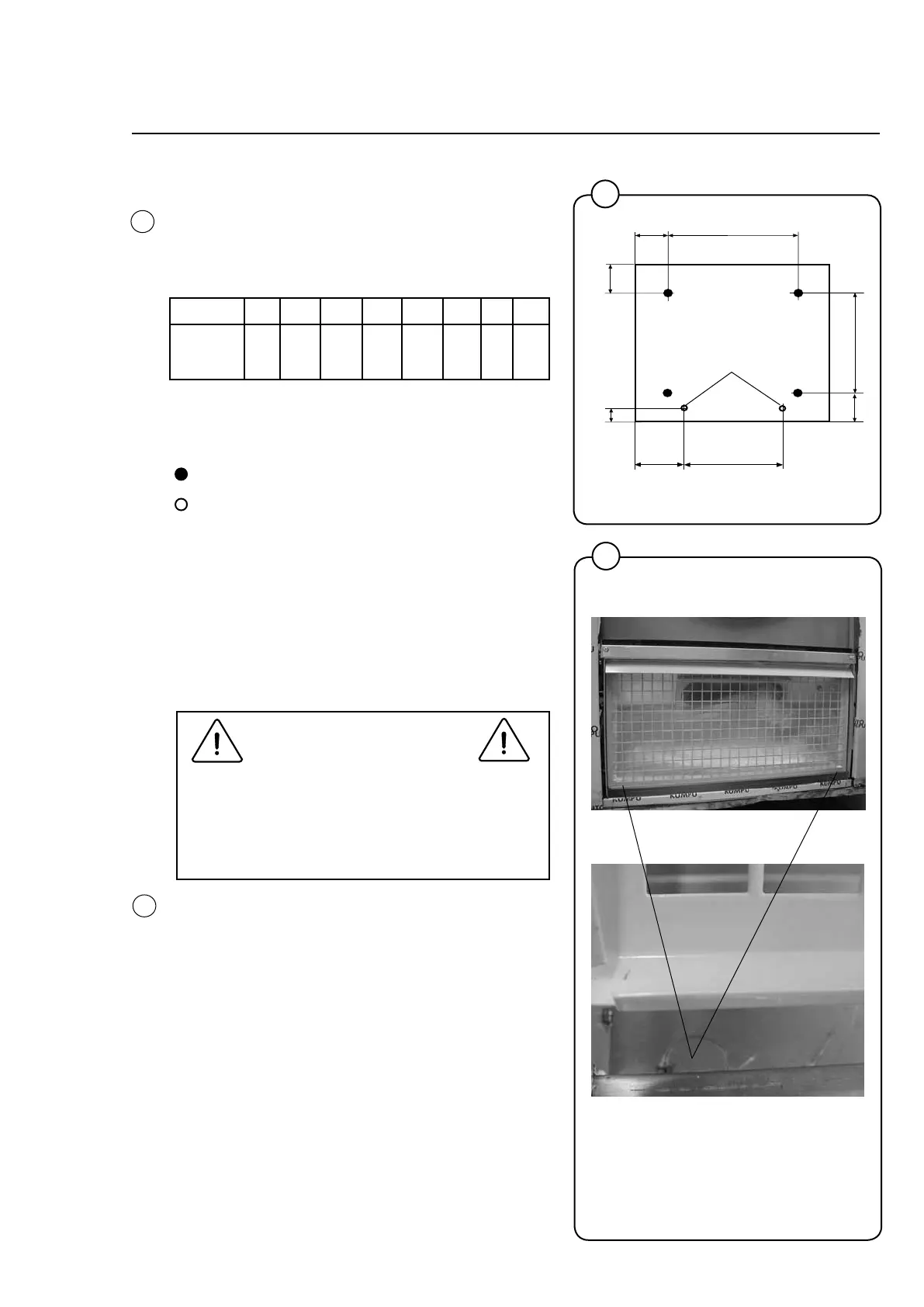

Front
A B C D E F G H
WD4130 635 490 135 30 515 195 60 220
WD4240 790 615 115 30 650 185 60 220
5
= position of feet
= drilling points for expander bolts
• Themachineshallbeliftedinthebottom
frame.
• Placethemachineoverthetwodrilledholes.
• Screwhomethefeetasmuchaspossible
before starting to level the machine.
• Checkthatthemachineisplacedinlevel.
Adjust with the feet.
It is of utmost importance that the machine
is placed in level, from side to side as well
as front to rear. If the machine is not pro-
perly leveled, it may result in out-of-balance
without a real out of balance in the drum.
• Inserttheexpansionboltssuppliedinthe
holes drilled in the floor. Fit the washers and
nuts, and tighten well.
Mechanical installation
• Markanddrill2holes,ø10mmand50mm
deep in the positions X shown.
X
2984, 2986
6
6
Knock out holes for expander bolts
