Electrolux WD4130 - External Liquid Dosing Setup

25
Installation
6572
17

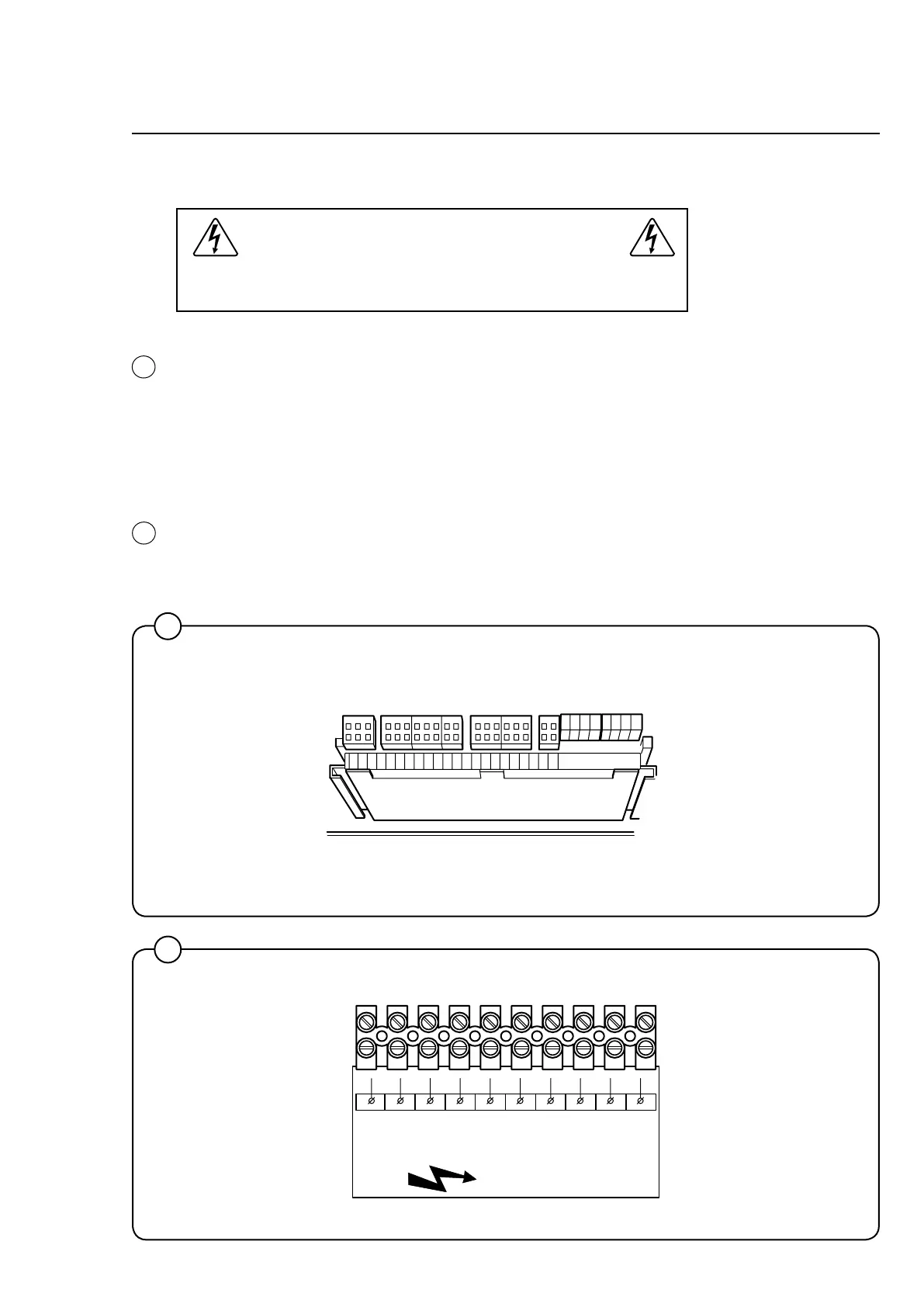

Connection of external liquid supplies
The external dosing equipment power supply must never be
connected to the machine’s incoming terminal block.
Detergent signal 1 to 5:
• Connecttheexternalpumpequipmentforliquidwashingdetergentsig-
nal 1 to 5 to the I/O board, which is located to the right of the incoming
power supply.
The I/O card has edge connectors for connecting external pumps.
• EdgeconnectorsontheI/Oboardcanbeloosenedforconnecting
cables.
Detergent signal 6 to 10:
• Connecttheexternalpumpequipmentforliquidwashingdetergent
signal 6 to 10 to the terminal block located above the I/O board.
17
        
         
18
18
1 2 3 4 5 6 7 8 9 10
Neutral Line Common Supply V Liq. 6 Liq. 7 Liq. 8 Liq. 9 Liq. 10 0
