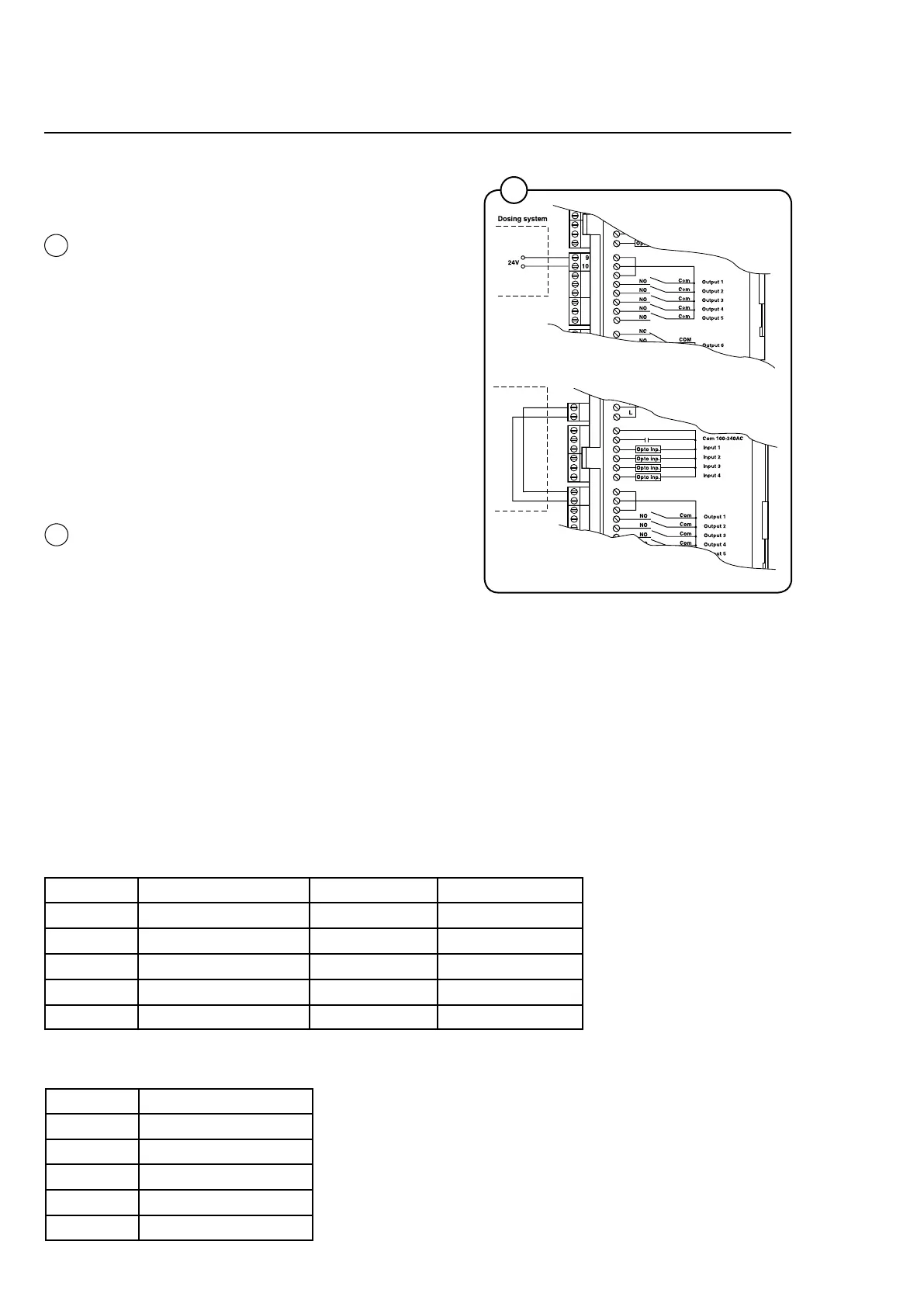

Electrolux WD4130 - Machine Outputs Configuration

26
Installation
Outputs
Detergent signal 1 to 5:
• Connectexternalpowersupply(e.g.24VDC)
for pumps to 9 and 10. If an internal power
supply (from the washing machine) is being
used, it can be taken from 1 (N) and connec-
ted to 9 and from 2 (L) and connected to 10.
Detergent signal 6 to 10:
 Connectexternalpowersupply(e.g.24VDC)
for pumps to 3 and 4 on the terminal block.
If an internal power supply (from the washing
machine) is being used, it can be taken from 1
and connected to 3 and from 2 and connec-
ted to 4.
Max load on the outputs 0.5 A.
• Signalsforpumps1-5areconnectedto12-16
where connector:
12 Washing detergent signal 1
13 Washing detergent signal 2
14 Washing detergent signal 3
15 Washing detergent signal 4
16 Washing detergent signal 5
• Signalsforpumps6-10areconnectedtoter-
minal block 5-10 where block:
6 Washing detergent signal 6
7 Washing detergent signal 7
8 Washing detergent signal 8
9 Washing detergent signal 9
10 Washing detergent signal 10
• The programs on the machine can be found
on the machine’s data plate.
19
* M= Mop, R = Restaurant
19






6634, 6635
20
3M14* 3R01* Other programs
Signal 1 – Prewash Prewash
Signal 2 Mainwash Mainwash Mainwash
Signal 3 Softener Softener Softener
Signal 4 Mop last rinse Pr 1 last rinse -
Signal 5 Bleach Bleach Bleach
5W05 (Woolmark)
Signal 6 –
Signal 7 Mainwash (Wet 2)
Signal 8 Last rinse (Wet 3)
Signal 9 –
Signal 10 –
