Electrolux WD4130 - Page 19

19
12
W00052

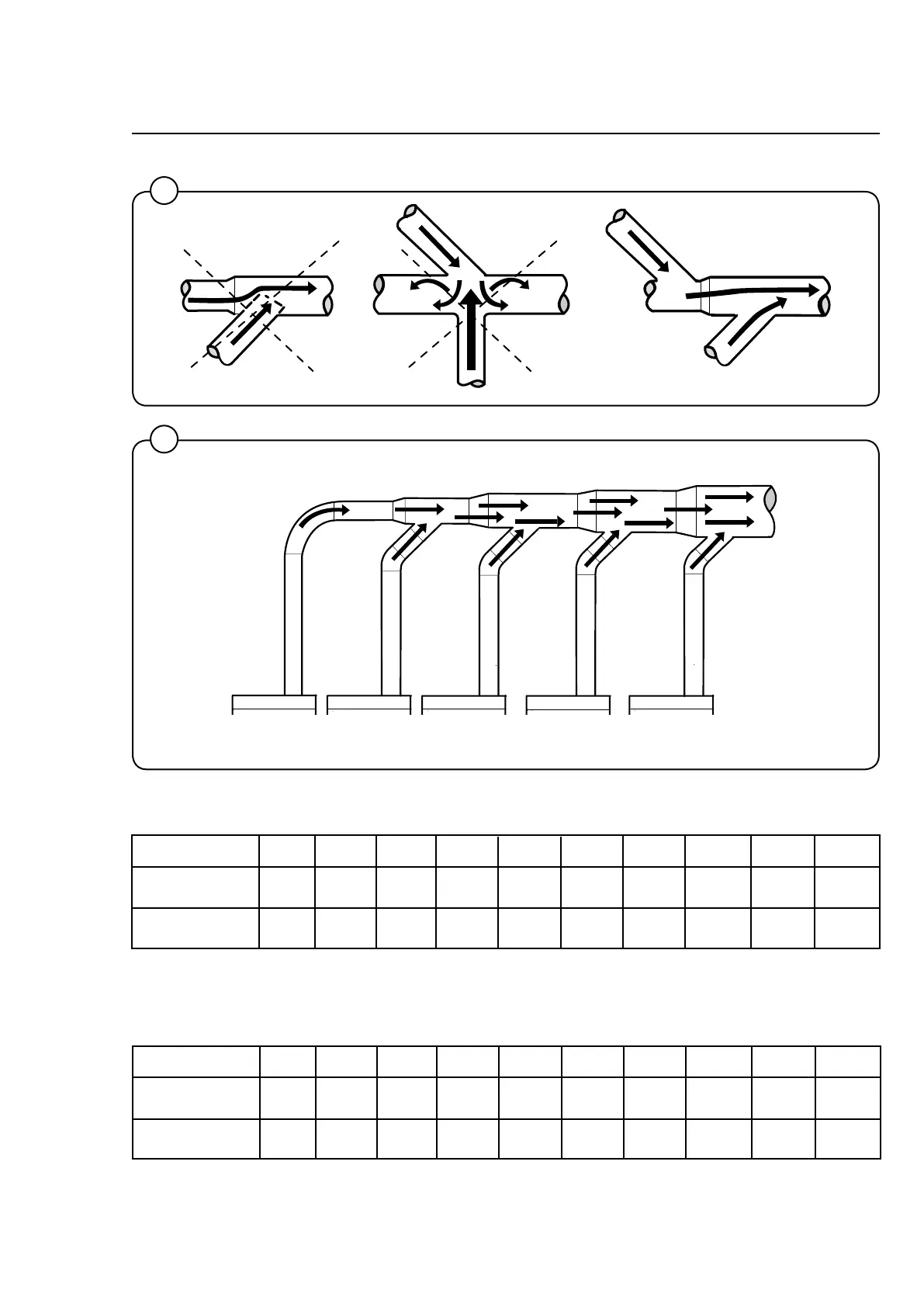

Installation
W00049
11
No. of machines 1 2 3 4 5 6 7 8 9 10
Air outlet pipe
diameter in mm 125 160 200 200 250 250 315 315 315 315
Required area of
fresh-air inlet m
2
0.04 0.08 0.12 0.16 0.20 0.24 0.28 0.32 0.36 0.40
Each machine requires a 200 x 200 mm fresh-air inlet opening.
No. of machines 1 2 3 4 5 6 7 8 9 10
Air outlet pipe
diameter in mm 200 250 315 315 400 400 500 500 500 500
Required area of
fresh-air inlet m
2
0.12 0.24 0.36 0.48 0.60 0.72 0.84 0.96 1.08 1.2
Each machine requires a 400 x 300 mm fresh-air inlet opening.
WD4130
WD4240
