30
  



 
















 







 


       
       


 
 



   
     
     

  
  



     







Installation
22B
6316

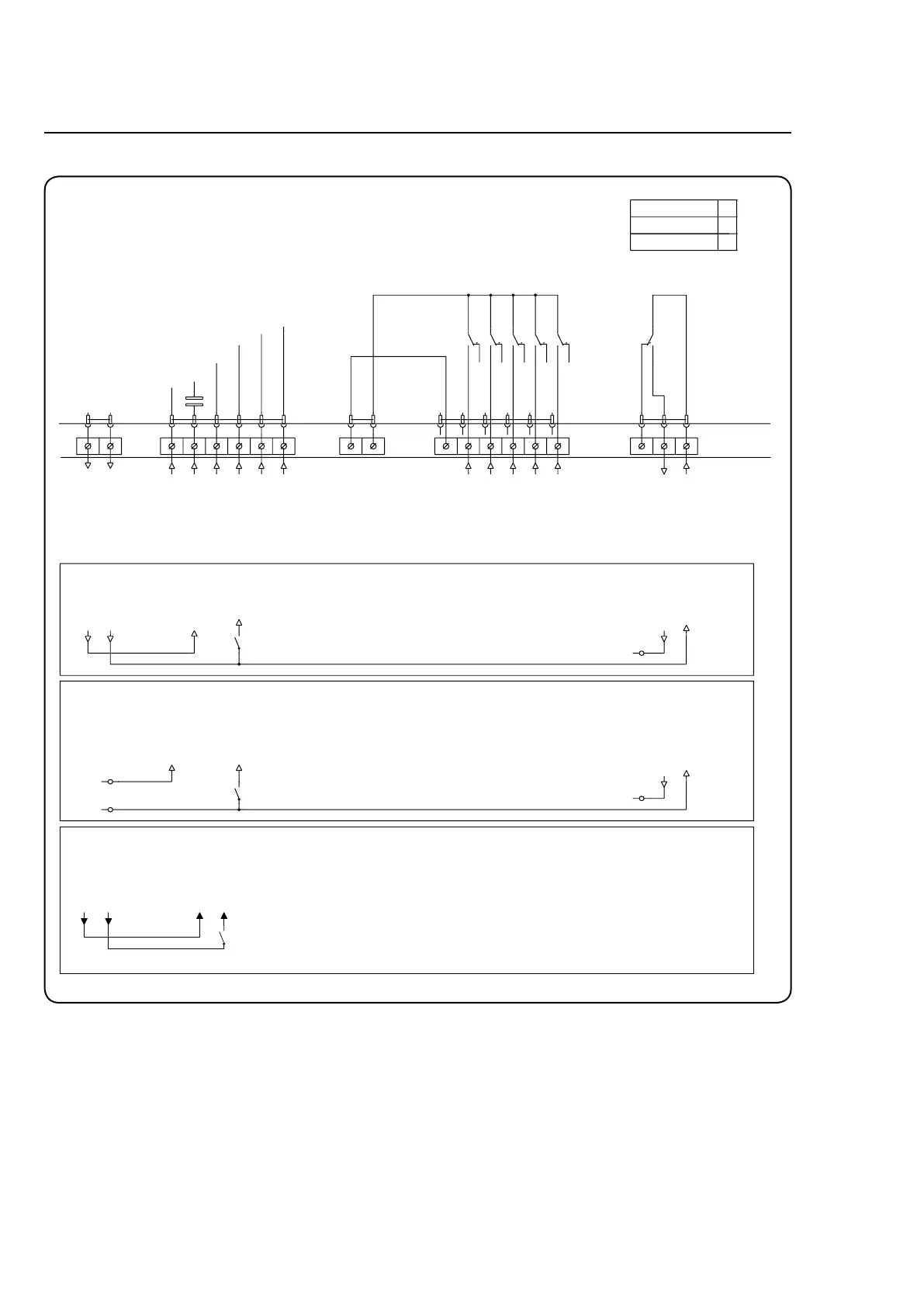

• Tostartthemachinefromacentralpaymentsystem,thepaymentsystem
must transmit a start pulse to the machine. Door lock activates on positive
flank and program starts on negative flank of start pulse. The start pulse can
beeither230Vor24V.Inordertoreceiveafeedbacksignaloncethemachine
hasstarted,230Vor24Vmustbeconnectedtoconnection19.Thefeedback
signal on connection 18 remains active (high) during the entire wash program.
