Installation

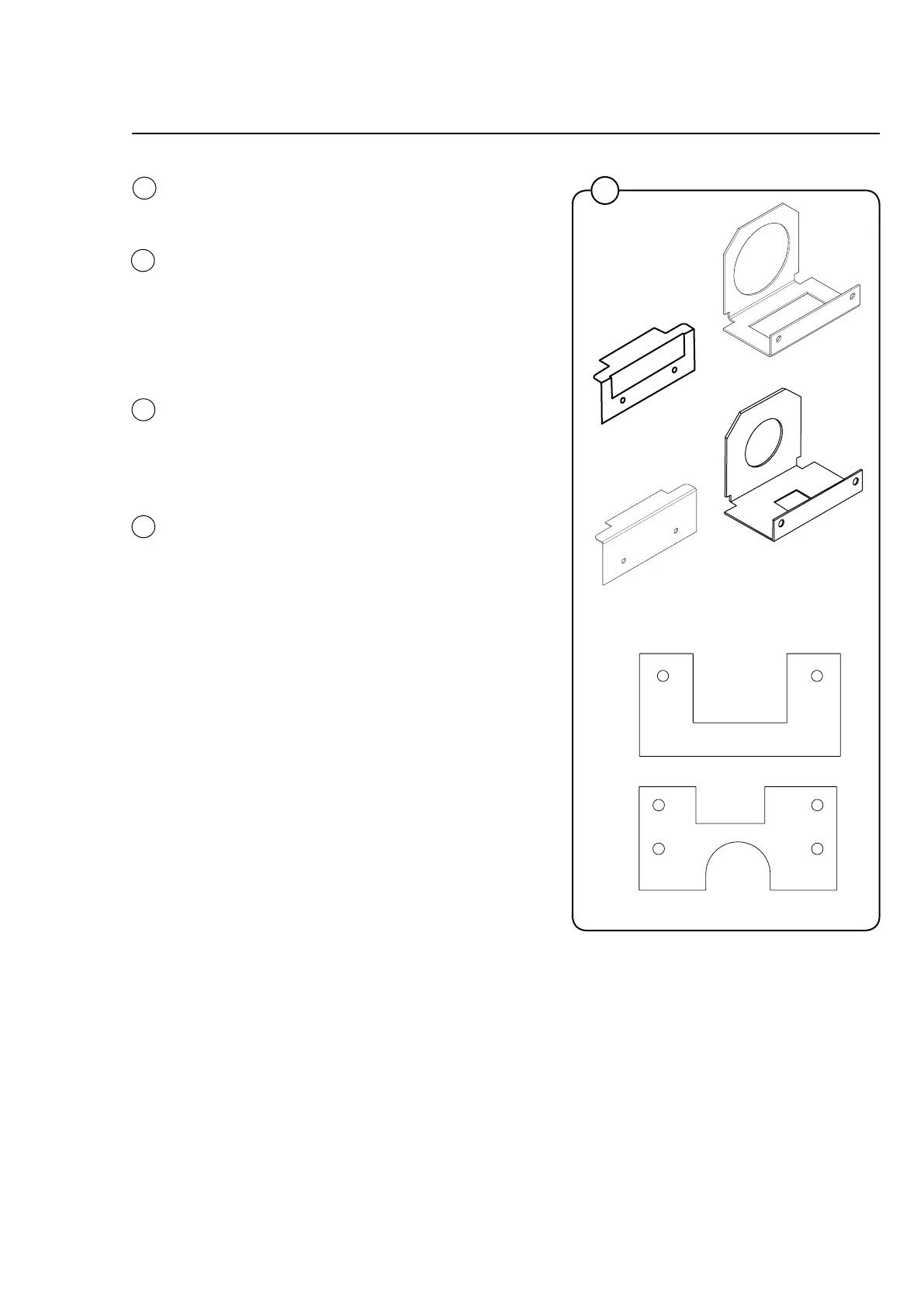

• Replace/mount air reducing plate according
to table on previous page. All air reducing
plate types are shown.
• Loosen the measuring branch screw (2) 1/4
turn; connect a manometer to the measuring
branch (2).
• Connect the power and select a programme
with heating.
• Start the machine.
• See nozzle pressure in table on previous
page - set the nozzle pressure on setting
screw (4) under cover screw (3).
• Check that the gas flame burns evenly and
has a bluish colour.
• Mount the cover screw (3).
• Mount the rear cover.
NOTE!
After the conversion has been carried out,
the enclosed sign with the new gas type
printed on it must be affixed to the dryer data
plate.
