Electrolux WP4700H - Page 30

2413 3
7
D1487
910 mm
1352 mm
1000 mm
N
G
WPB4 700
D1484
1040 mm
1443 mm
1000 mm
N
G
WPB4 900
D1365
N
G
WPB4 1100
Notice
Date Page
05201053
INSTALLATION
MANUAL
7. Installation

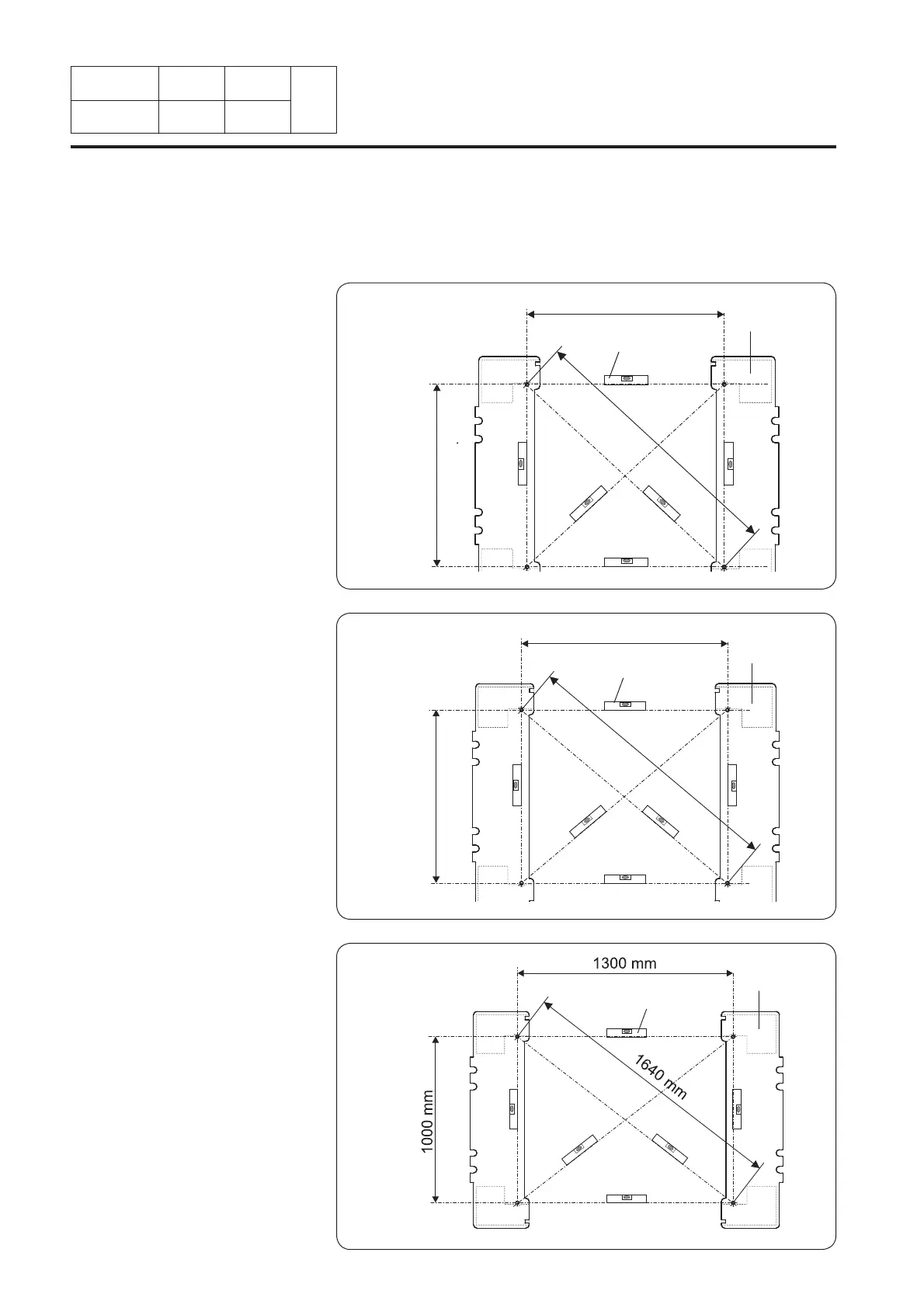

Instructions for securing the machine on the ground
Place the machine on a perfectly even surface and horizontal.
Control this using a water level (see drawing).
Each point must be
level.
If the defect is lower
than 10 mm, you can
stall the machine. You
must do again the
ground in the opposite
case.
Mark out the drill holes
for the securing bolts
and drill them so as
to insert the 4 bolts Ø
12x80, they will secure
the machine to the
fl oor.
Bolsters : G
Water level : N
