INSTALLATION
MANUAL
7. Installation
Working place lighting
The lighting should be designed so as to avoid eye strain for the operator ; it should be uniform
without any glare, and should be suffi cient to detect any hazards.
The average lighting value on the working place recommended by the clothing industry for
inspecting linen is 500 lux.
Whenever possible, the working place should be illuminated by daylight.
Supplies
Take the box placed in the drum.
List of accessories provided with each machine :
• 1 instruction handbook + Clarus Control memory card + converter handbook,
• 3 keys for frames,
• 4 dowells dia12x80,
• 1 or 2 connection bellows Ø 110 mm and 2 or 4 collars for drain,
• 1 or 2 plate(s) for drain,
• 2 or 3 inlet water fl exibles + 4 or 6 fi ber seals + 4 or 6 connection nipples.
• 4 bolsters + 4 wedges (see explanation for the setting).
• 2 or 3 waters fi lters
Extra accessories for steam heating machine :
• 1 pipe union + fi lter,
• 1 steam fl exible.
Extra accessories for barrier machine :
• 1 rubber seal + the aluminium extruded section,
• 2 fi lling angles + 4 screws + 4 nuts Ø 6.

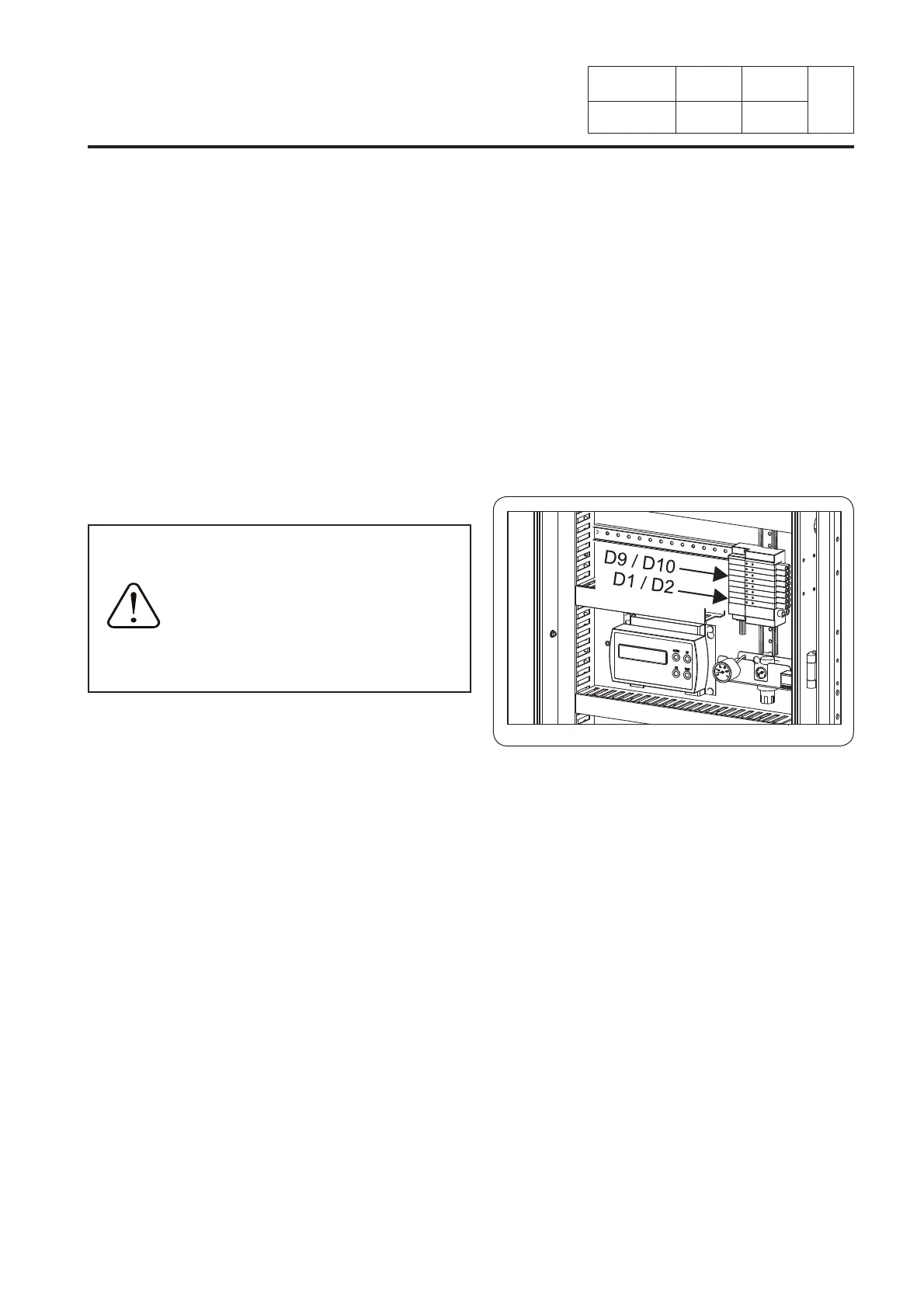

You must connect the compressed
air to unlock the loading door.
Then push on the orange button of
the D9/D10 distribution unit in the
electric cabinet.
So you can access the drum.
