Electrolux WP4700H - Mechanical Installation

2413 4
7
F
D1685
C
G
C
D1684
C
G
F
Notice
Date Page
05201053
INSTALLATION
MANUAL
7. Installation
Glue
These faces
must be aligned
(optional)
Mechanical installation

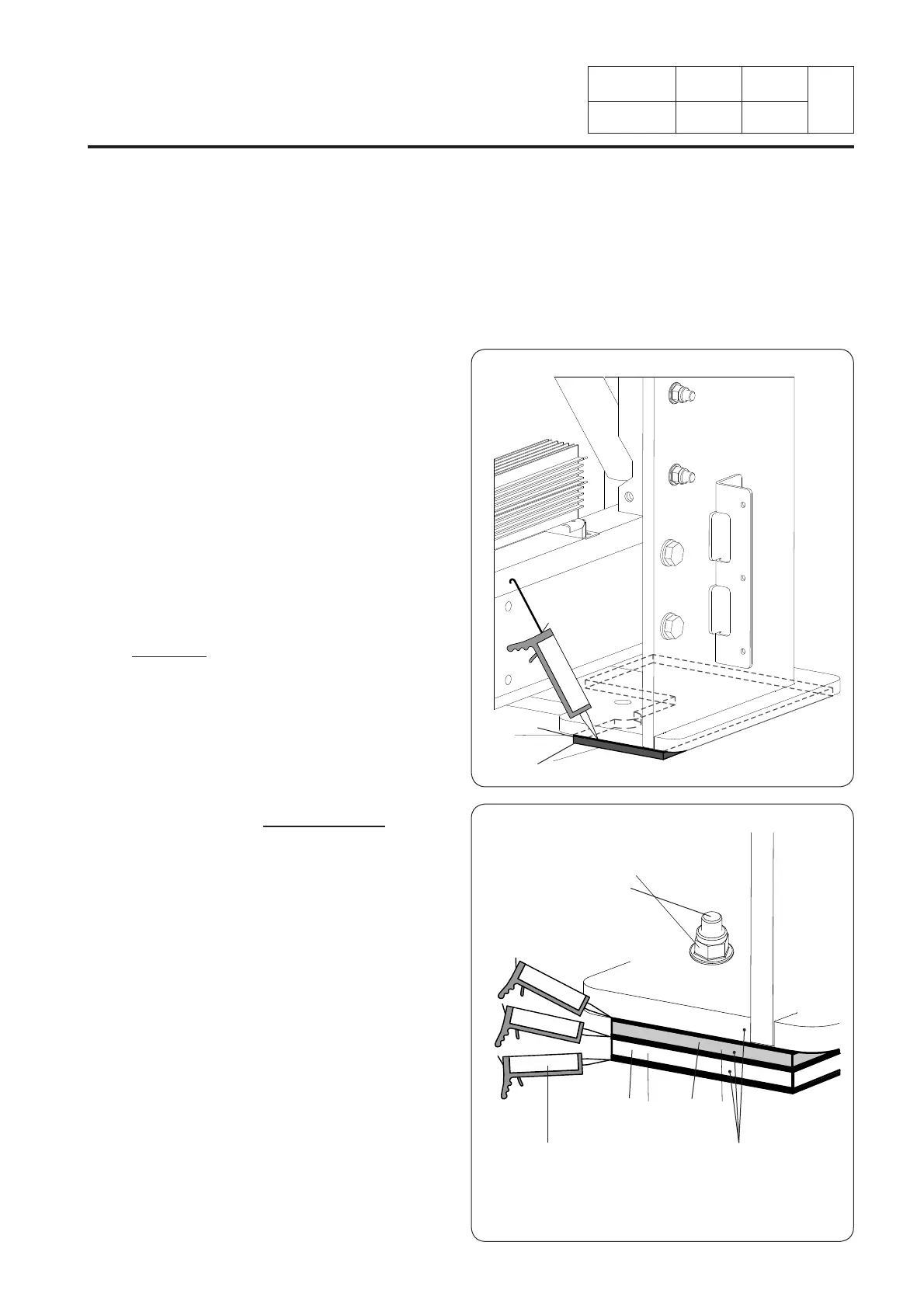

Setting of the bolsters
Preparation of the ground and machine :
- Clean carefully the ground and the soles
of the machine.
Setting the bolsters :
- Place each bolster (G) at its respective
location (see drawing) and heave
successively each bearing of the machine.
- Verify the levels and place if necessary
the wedges (C) between the bolster and
the soles to stabilize the machine.
- When this "trial" stalling is realized, apply
obligatory the glue (type SILICOMET) on
every bolster face and under the soles of
the machine (see drawing).
- The indicated faces on the drawing must
be aligned. Apply equally glue to each face
of the used wedges.
- Put the machine in position and secure it
with the bolts (F) without tighten.
Electrical safety device :
- As rubber is a very good electric
insulating material, the earthing of the
machine is compulsory.
To displace the machines sealed with
bolsters :
- You must introduce a fl at chisel between
the ground and the bolsters by heaving the
machine; you have to remove them and
avoid to pull off the ground.
