2413 5
7
D1328
100
50
100
O
P
S+R
O
D
A
C
B
R
P
40maxi & 30 mini
S
Notice
Date Page
05201053
INSTALLATION
MANUAL
7. Installation

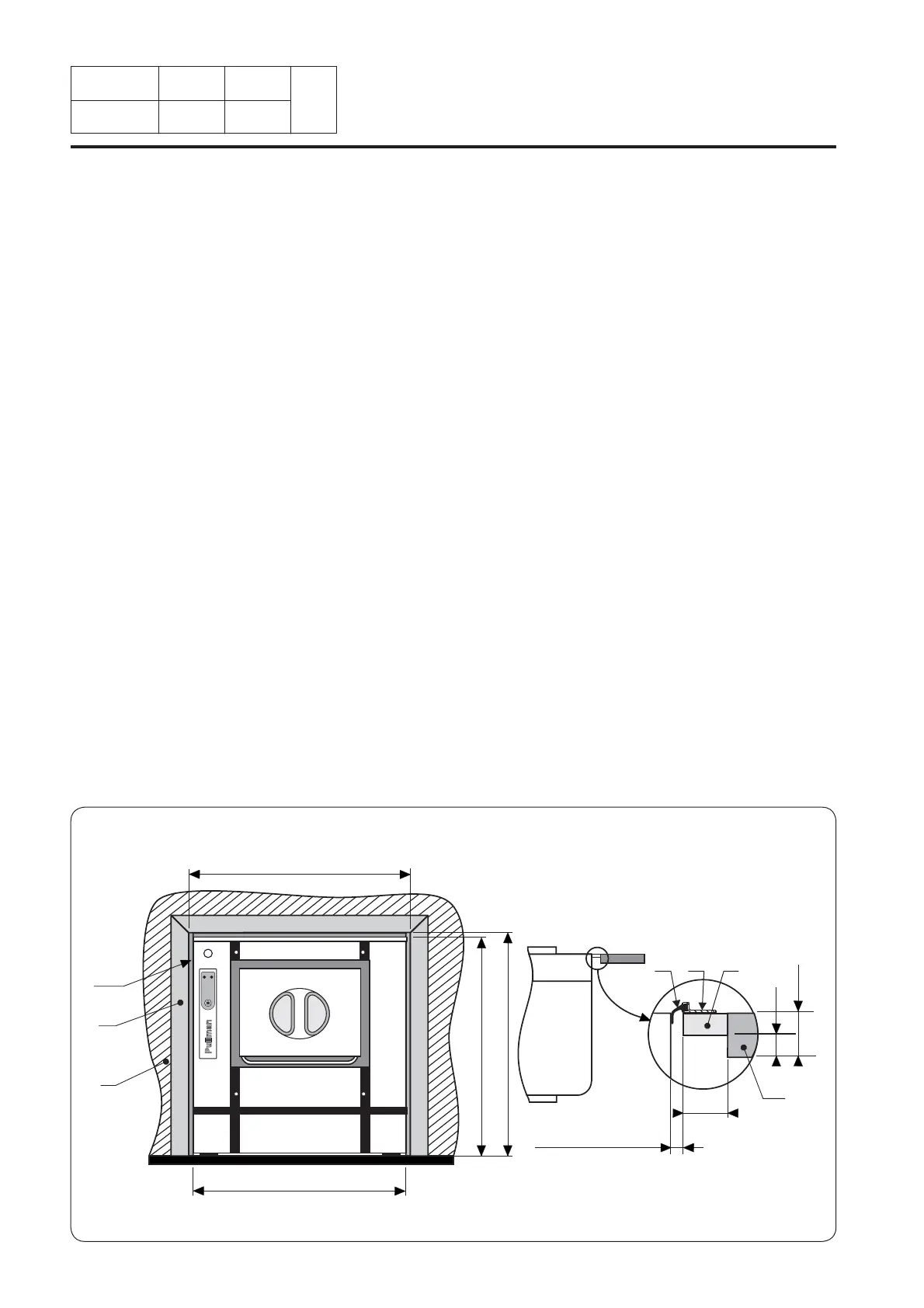

Instructions for installation of the washer with barrier partition
The barrier partition (O) (provided by customer) should be assembled before the installation of
the machine.
Centre and align the washer-extractor with the frame (P) 60 x 100 mm (2x4") maximum
(provided by customer).
Place the rubber seal (R) inside the aluminium extruded section (S).
Srew the aluminium extruded section (S) on the frame or on the optional plates (P).
Machine type 700 900 1100
Size A (mm/inch) 1570/61.81 1800/70.86 2030/79.92
Size B (mm/inch) 2080/81.89 2080/81.89 2080/81.89
Size C (mm/inch) 2040/80.31 2040/80.31 2040/80.31
Size D (mm/inch) 1490/58.66 1720/67.71 1950/76.77
