INSTALLATION
MANUAL
7. Installation
Waters connections
Washer extractors are assembled in standard execution with two waters inlet.
One hot water and one hard water. On option, a third water inlet (soft) is possible.

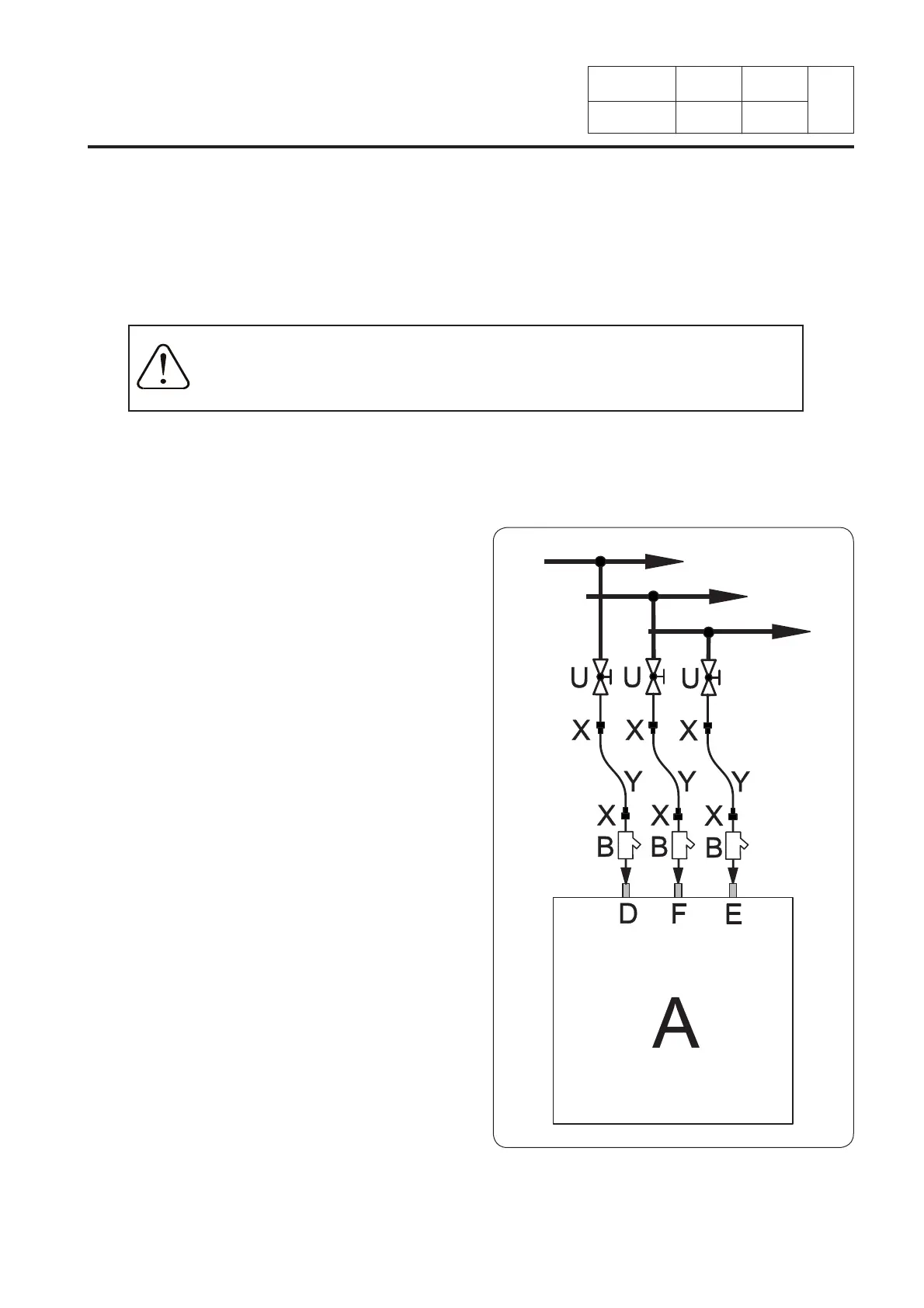

The hereunder example sketch shows the connection of the machine to the different inlets.
U Manual stop valve DN 32 (1"¼
BSP) (provided by customer)
X Nipple 1"¼ (provided)
Y Flexible pipe DN 32 length : 80 cm
(provided)
D Hot water inlet DN 32 (1"¼ BSP
female) (T max 60°C)
E Hard water inlet DN 32 (1"¼ BSP
female)
F Cold soft water inlet (option) DN 32
(1"¼ BSP female)
B Water fi lter (provided)
A Washer-extractor
Water supply pressure, 50 kPa (7.25 psi)
mini.
Water supply pressure, 300 kPa (43.5 psi)
maxi.
It is strictly forbidden to use the electrical control of the third water to
drive any equipment. Only the pneumatic outlet can be used.
