7. Installation
According to the standard EN1717
The closing sheet (A) is normaly mounted
on the machine. If not, set the side sheet
supplied with the machine (ref. 31105197
or ref. 31105124); this allows to reduce the
water fi lling time.
If you must be comply with the standard
EN1717, remove this sheet and reduce the
water pression to limit the splashes by the
side hole.
The factory setting is 3 bar for the pressure.
You must adjust the electrovalves according
to the water pressure of your network :
- Unscrew the nut (C) of each electrovalve
and screw the screw (B) up to the end,
- For a 1 bar pressure, unscrew the screw
(B) of 17 1/3 rounds (26 mm).
- For a 2 bars pressure, unscrews the screw
(B) of 4 1/3 rounds (6 mm).
- For a 3 bars pressure, unscrews the screw
(B) of 3 1/3 rounds (5 mm).
- For a 4 bars pressure, unscrews the screw
(B) of 2 2/3 rounds (4 mm).
- For a 5 bars pressure, unscrews the screw
(B) of 2 rounds (3 mm).
- For a 6 bars pressure, unscrews the screw
(B) of 1 1/3 rounds (2 mm).
- Screw the nut (C) of each electrovalve.

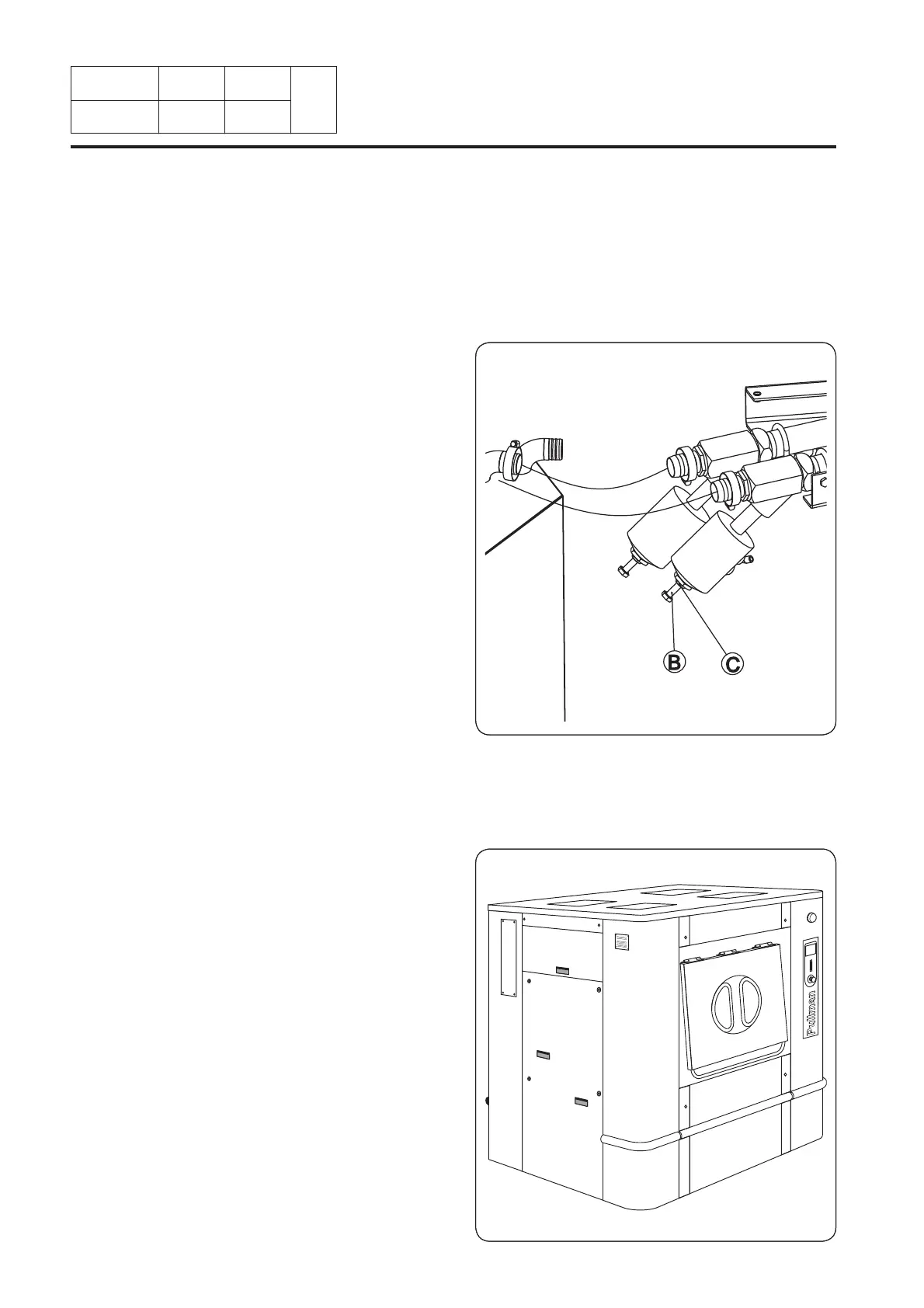

Adjustment of the water pressure (kit 56000183)
