INSTALLATION
MANUAL
7. Installation

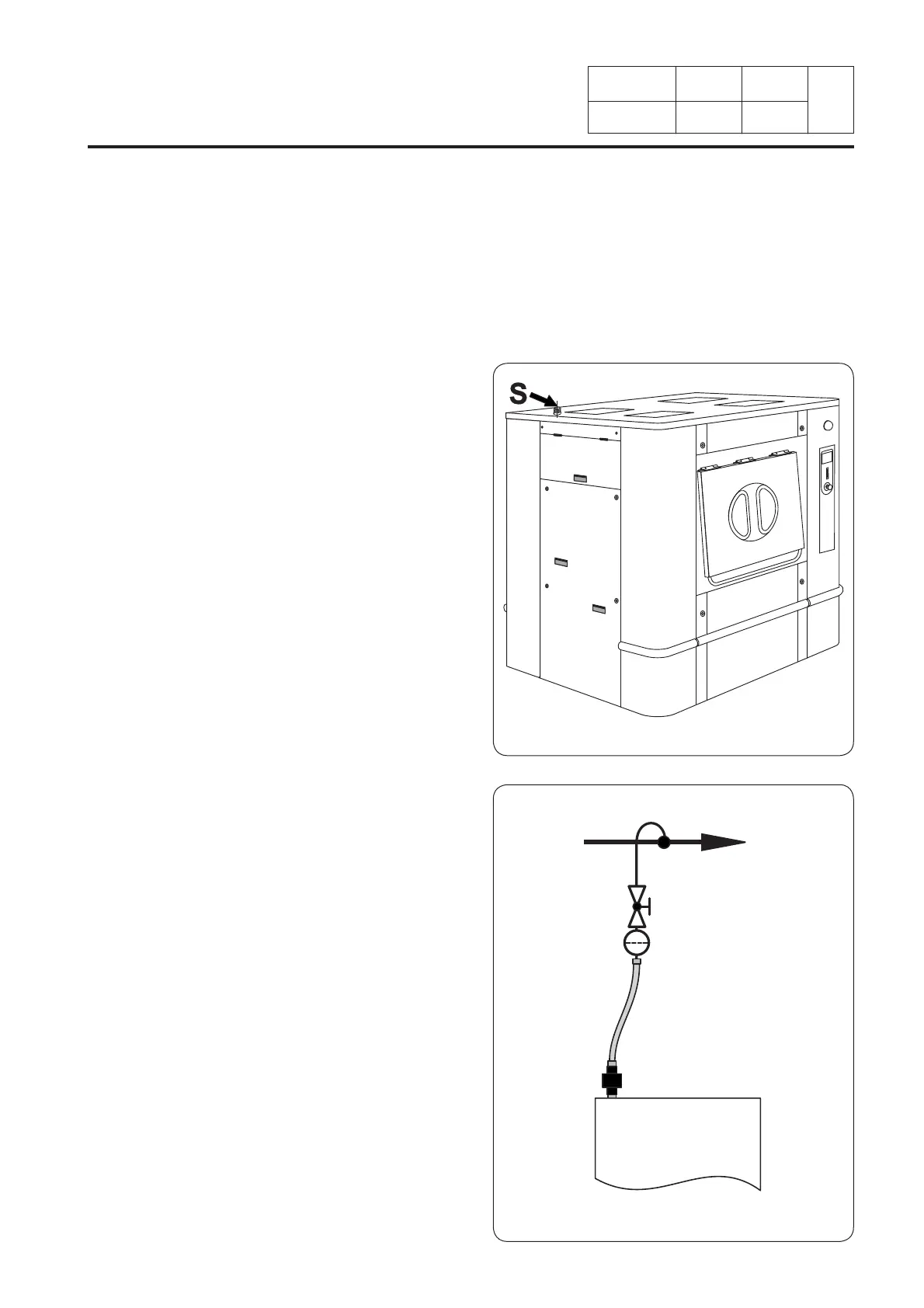

Connect the steam installation on the top of
the machine (see example sketch).
A Washer-extractor
S Steam inlet
Y Manual stop wheel valve
DN 25 (1" BSP) (provided by
customer)
P Steam fi lter DN 25 (1" BSP)
(provided)
F Steam fl exible pipe DN 25 (1" BSP)
(provided) length : 70 cm
U Pipe union (male/female) DN 25 (1"
BSP) (provided)
Steam connection (standard)
The inlet pipe to the machine has to be fi t with a manual stopping valve to ease installation and
maintenance and a fl exible steam supply pipe to allow reliable running of automatic weighting
system.
Hereunder values apply to the steam
pressure :
Recommended pressure :
300-600 kPa (3 at 6 kg/cm²) (43.5 at 87 psi).
Limiting of values :
mini. 100 kPa (1 kg/cm²) (14.5 psi),
maxi. 600 kPa (6 kg/cm²) (87 psi).
Connection size :
DN 25 (1" BSP male).
