INSTALLATION
MANUAL
7. Installation

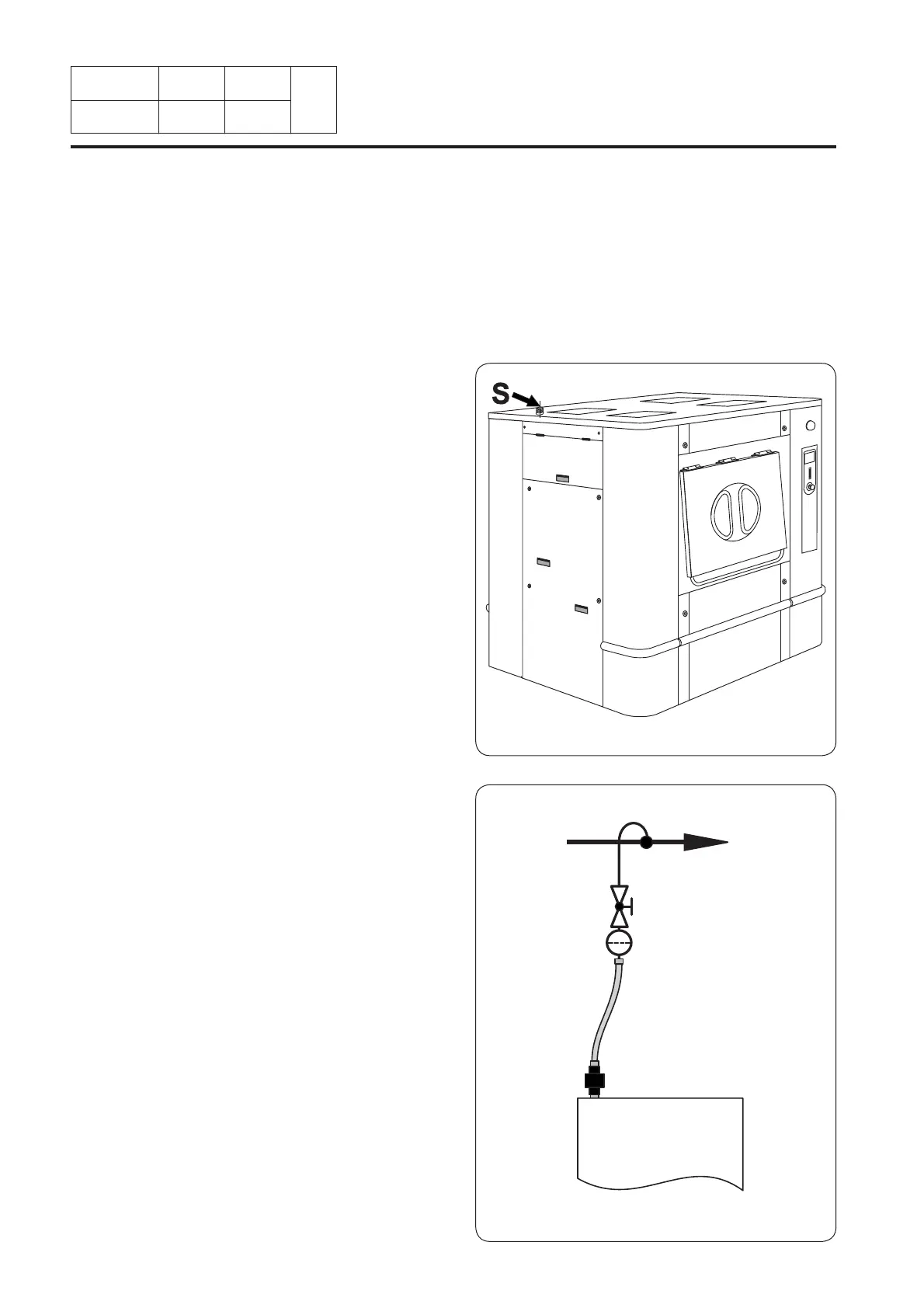

Connect the steam installation on the top of
the machine (see example sketch).
A Washer-extractor
S Steam inlet
Y Manual stop wheel valve
DN 32 (1"¼ BSP) (provided by
customer)
P Steam fi lter DN 32 (1"¼ BSP)
(provided)
F Steam fl exible pipe DN 32 (1"¼
BSP) (provided) length : 70 cm
U Pipe union (male/female) DN 32
(1"¼ BSP) (provided)
Steam connection (low pressure)
The inlet pipe to the machine has to be fi t with a manual stopping valve to ease installation and
maintenance and a fl exible steam supply pipe to allow reliable running of automatic weighting
system.
Hereunder values apply to the steam
pressure :
Recommended pressure :
250 kPa (0,5 kg/cm²) (36 psi).
Connection size :
DN 32 (1"¼ BSP male).
