INSTALLATION
MANUAL
7. Installation
Compressed air connection
The customer should arrange the installation
of fi lter/lubricator device, as well as a
pressure regulator (manometer) on the
machine's compressed air supply.
The manual stopping valve lockable in
closed position (provided by customer)
should be installed on the machine's
compressed air supply.
The supply pipe should accept a pressure of
at least 1 Mpa (10 bar) (145 psi).
• Connection diameter : rapid action hose
coupling DN 6 (0.24") for hose Ø 6/8 mm.
Nota : to avoid too big head losses, the
compressed air supply pipe should be
bigger in diameter than the coupling
diameter (DN 8 for example); in this case,
put a 6/8-8/10 adapter.
• Advised pressure : 550-700 kPa
(5,5-7 bar) (80-102 psi).
• Minimum pressure: 550 kPa (5,5 bar)
(80 psi).
• Maximum pressure : 700 kPa (7 bar)
(102 psi).
• Consumption 50 l/h.

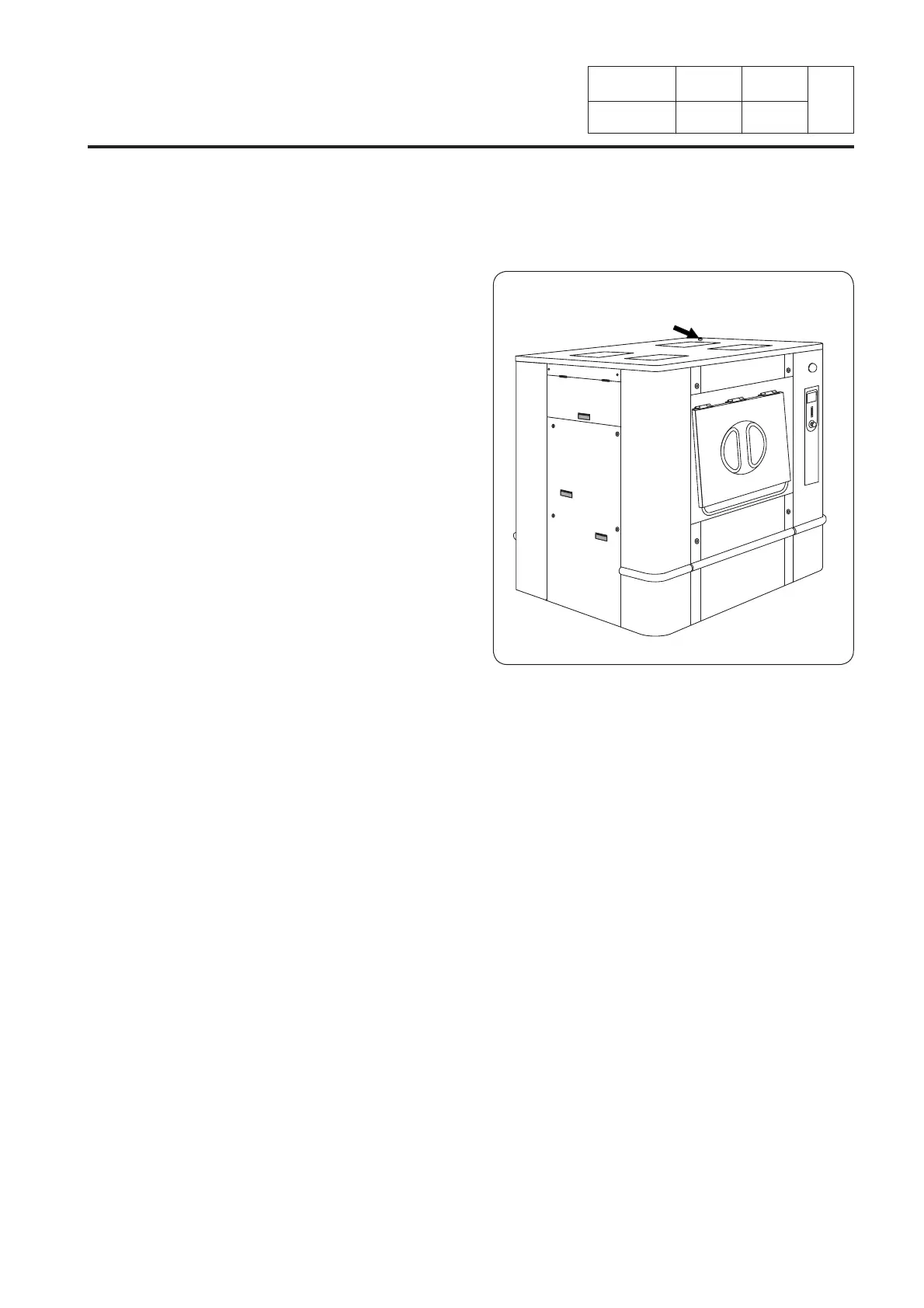

Compressed
air
