Connecting the Lead Wires with the Input Cable

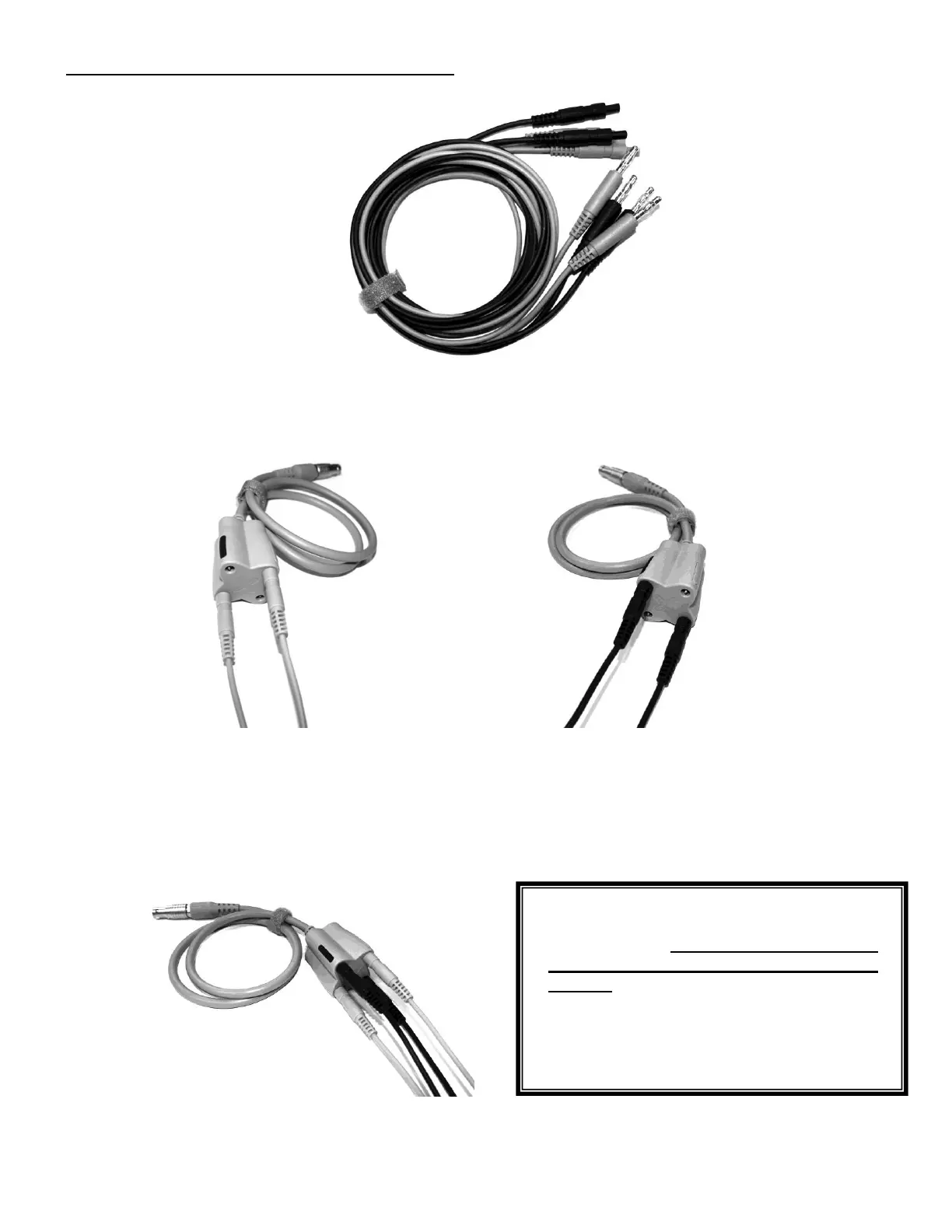

Figure 8: Lead wires
Connect at least two lead wires into the plastic mold on input cable containing four holes.
Figures 9 and 10: Proper color-coded connections shown
If only two wires are being used, they will have to be connected to the left or right two holes (see
images above). The ends of the wires are color coordinated as well as the holes on the plastic mold.
The shielded end of the lead wires are going into the plastic mold.
The exposed end of the cable is meant for the accessories.
Figure 11: Four wires connected to the input cable
OR
NOTE: If you are using four lead wires at
the same time, do not remove any wires
from your body while a program is
running. Removing lead wires while
running a program will result in change of
the electrical resistance and significant
increase of the intensity will be detected in
the remaining wires.
