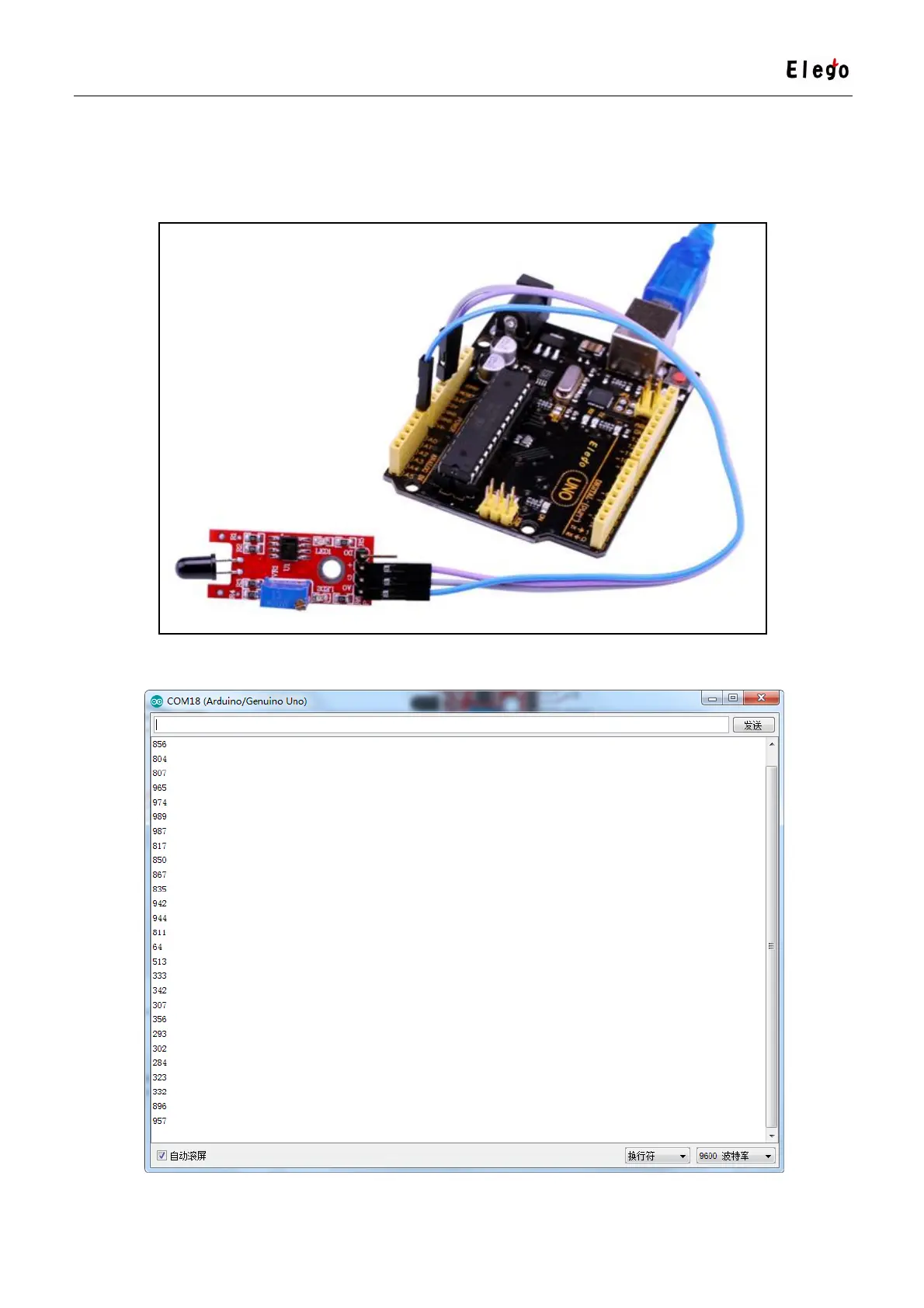

In the following picture, we use the AO port to output. so we can see that if the flame sensor
sensing the flame, the module will output a data which reflect the strength of the flame. The
number is from 0 to 1023.
Upload the program then open the monitor, we can see the data as below:
