Lesson 10 PHOTO-INTERRUPTER MODULE

Overview

I n this experiment, we will learn how to use Photo-interrupter module.

Component Required:

(1) x Elego Uno R3

(1) x USB cable

(1) x Photo-interrupter MODULE

(x) x F-M wires

Component Introduction

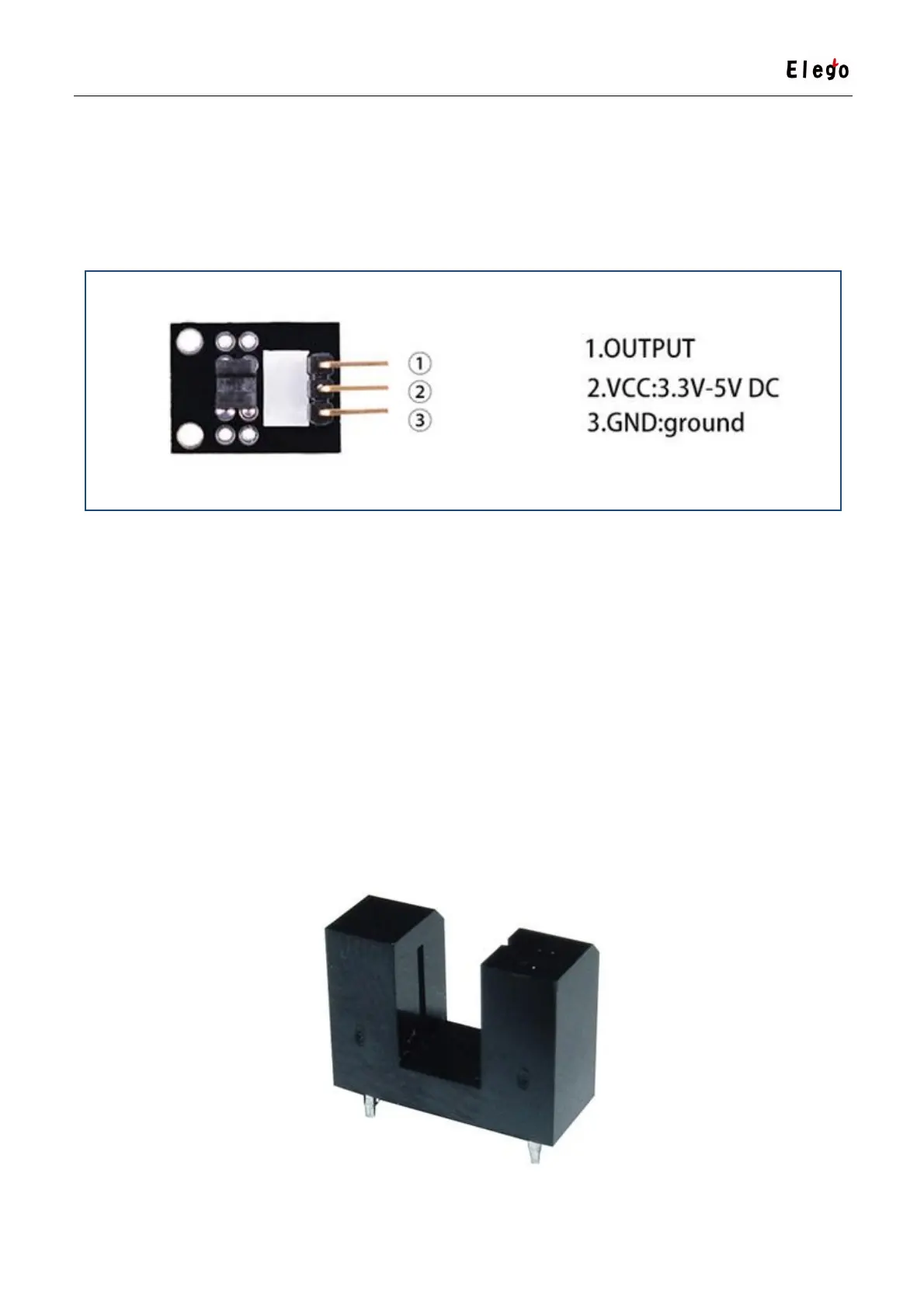

Opto Interrupter Sensor:
